StarTech 2 Port DisplayPort KVM Switch - 2560x1600 , TAA @60Hz - Dual Port DP USB, Keyboard, Video, Mouse Switch Box w/ Audio for Computers and Monitors (SV231DPUA)
Key Features
- Supports native DisplayPort computer connections - no adapter required
- Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
- Supports a maximum resolution of 3840 x 2400 at lower refresh rates
- VESA and CEA compliant
- Supports 3.5mm Stereo analog audio; Supports 7.1 Channel High Definition Digital Audio through the DisplayPort connection
- USB 2.0 peripheral sharing
- No driver or software installation required
- Hotkey and push-button switching
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Platform Independent - Supports Mac and PC operating environments
Description
Control two computers from a single console, with high-resolution DisplayPort® video, USB keyboard, mouse, and audio
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

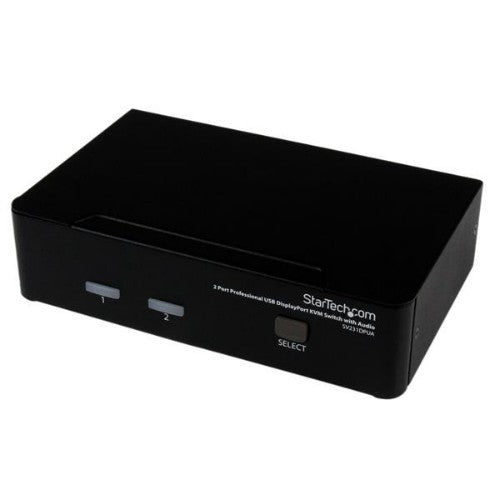

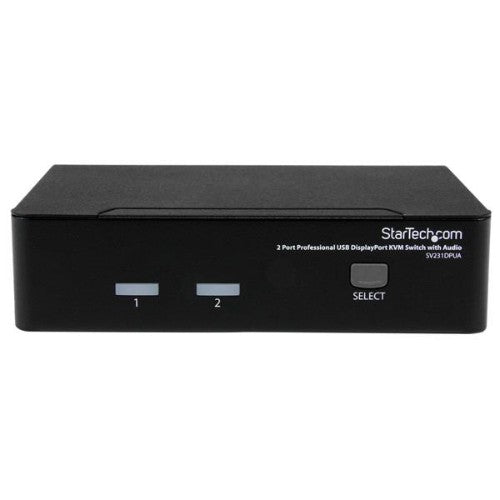

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
4 |

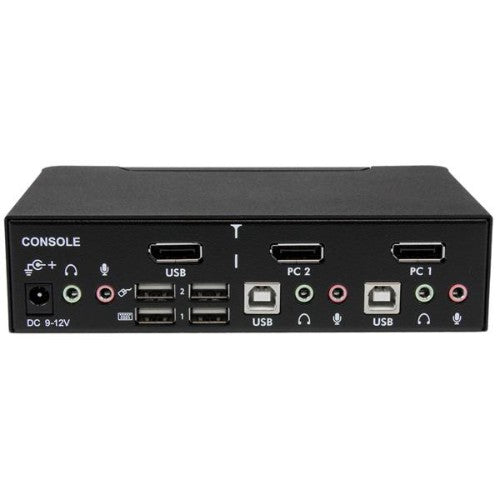

| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB connector type |
USB Type-A |
| Number of microphone inputs |
3 |
| DisplayPorts quantity |
2 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| DC-in jack |
Yes |
| USB hub |
Yes |
| Network |
|---|
| Ethernet LAN |
No |
| Performance |
|---|
| DDC2B support |
Yes |
| Daisy chain |
No |
| HD type |
4K Ultra HD |
| Hot-Plug support |
Yes |
| Plug and Play |
Yes |
| Maximum resolution |
3840 x 2400 pixels |
| Audio channels |
7.1 |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, UL, FCC, REACH |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
0.8 A |
| Output current |
2 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, UK, US |
| Output voltage |
12 V |
| Power consumption (typical) |
24 W |
| External power adapter |
Yes |
| Input voltage |
110 - 240 V |
| Video |
|---|
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2400 pixels |
| Technical details |
|---|
| USB hub |
Yes |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
130 mm |
| Height |
44 mm |
| Weight |
1.1 kg |
| Package width |
256 mm |
| Package depth |
187 mm |
| Package height |
99 mm |
| Package weight |
1.3 kg |
| Packaging data |
|---|
| Package width |
256 mm |
| Package depth |
187 mm |
| Package height |
99 mm |
| Package weight |
1.3 kg |

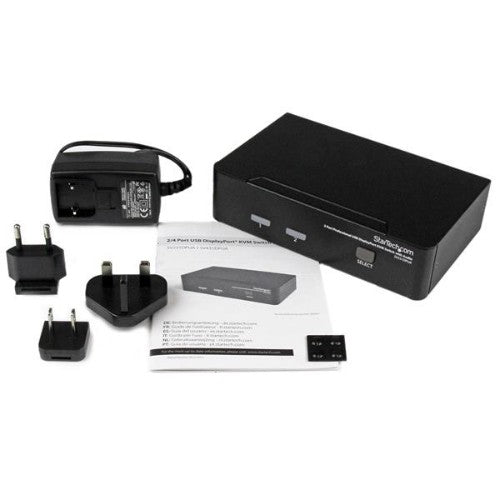

| Packaging content |
|---|
| Rubber feet |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, UL, FCC, REACH |
| Other features |
|---|
| IP control |
No |
| Audio support |
No |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
410 mm |
| Master (outer) case length |
283 mm |
| Master (outer) case height |
339 mm |
| Products per master (outer) case |
6 pc(s) |
| Harmonized System (HS) code |
85176200 |
