StarTech DVI KVM Switch with Audio & USB 2.0 Hub – 2-Port USB KVM Switch - 1920 x 1200 - Dual Monitor KVM Switch , TAA (SV231DD2DUA)
Key Features
- Front panel push-buttons and Hot-key functions for easy switching
- Supports resolutions up to 1920x1200 (DVI-Digital)
- USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)
- Audible tone confirms port switching
- Combined or independent switching of audio ports
- EDID retention - eliminates hassle when switching between computers as the KVM "remembers" monitor settings
- Supports all USB-capable operating systems (Windows 98e/SE/ME/2000/XP/Vista/7, Linux, Mac OS, etc.)
- TMDS compliant to support DDC2B emulation and HDCP for digital contents protection
- Status LED display for easy port status monitoring
Description
Share a keyboard, mouse and dual DVI displays/monitors between 2 multimedia computers
The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
Specifications
| Ports & interfaces |
|---|
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DVI-I |
| Headphone outputs |
4 |
| Performance |
|---|
| Maximum resolution |
2048 x 1536 pixels |
| Number of users |
1 user(s) |
| Design |
|---|
| Product colour |
Black |
| Certification |
RoHS |
| Video |
|---|
| Maximum resolution |
2048 x 1536 pixels |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
90 - 90% |
| Weight & dimensions |
|---|
| Weight |
750 g |
| Package width |
196 mm |
| Package depth |
295 mm |
| Package height |
72 mm |
| Package weight |
1.26 kg |
| Packaging data |
|---|
| Package width |
196 mm |
| Package depth |
295 mm |
| Package height |
72 mm |
| Package weight |
1.26 kg |
| Certificates |
|---|
| Certification |
RoHS |
| Other features |
|---|
| Connectivity technology |
Wired |
| Power supply type |
115 AC |
| Power requirements |
9 V, 1.7 A |
| Ports quantity |
2 |
| Dimensions (WxDxH) |
160 x 100 x 57 mm |
| Compatible operating systems |
Windows 98e/SE/ME/2000/XP/Vista, Linux, Mac OS |

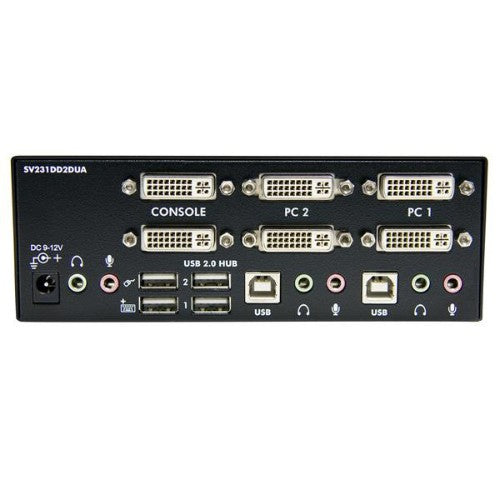

| I/O ports |
6x 24 pin DVI-I F
4x USB A F
2x USB B F |
| Logistics data |
|---|
| Master (outer) case width |
461 mm |
| Master (outer) case length |
419 mm |
| Master (outer) case height |
337 mm |
| Products per master (outer) case |
12 pc(s) |
| Harmonized System (HS) code |
85176200 |
