StarTech 1U Blanking Panel - Metal Rack Mount Filler Panel - for 19in Server Rack Enclosure or Cabinet - Steel - Black (BLANKB1)
Key Features
- PROTECT EQUIPMENT: This blanking panel helps to protect valuable rackmount server equipment by creating space between installed devices, promoting airflow and passive cooling
- STANDARD COMPATIBILITY: This panel takes up 1U of space and is compatible with 19" server racks for maximum compatibility
- EASY INSTALLATION: With only two screws required to mount this metal panel, installation is quick and easy
- BUILT TO LAST: Made with 1.2mm thick cold rolled steel, this filler panel is designed to hold up to wear and tear while protecting your equipment
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this tool-less blank rank panel is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description

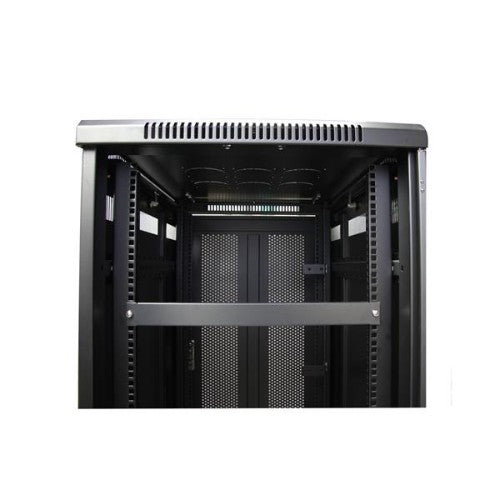

Improve the cooling flow and appearance of your racks and cabinets by filling the gaps between equipment
The BLANKB1 1U Rack Blank Panel for 19in Server Racks and Cabinets is designed to EIA RS-310-C specifications and fits all 19" standard server racks and cabinets.
Ideal for improving airflow within the rack by covering the unused spaces, the filler panel/blank panel is constructed of cold-rolled steel and features a black powder coated finish that matches most industry standard black server cabinets and racks.
Specifications
| Features |
|---|
| Type |
Blank panel |
| Rack capacity |
1U |
| Product colour |
Black |
| Certification |
CE |
| Compliance industry standards |
EIA RS310-C |
| Harmonized System (HS) code |
85389099 |
| Housing material |
Steel |
| Weight & dimensions |
|---|
| Package width |
494 mm |
| Package depth |
53 mm |
| Package height |
25 mm |
| Package weight |
321.8 g |
| Weight |
273.7 g |
| Packaging data |
|---|
| Package width |
494 mm |
| Package depth |
53 mm |
| Package height |
25 mm |
| Package weight |
321.8 g |
| Packaging content |
|---|

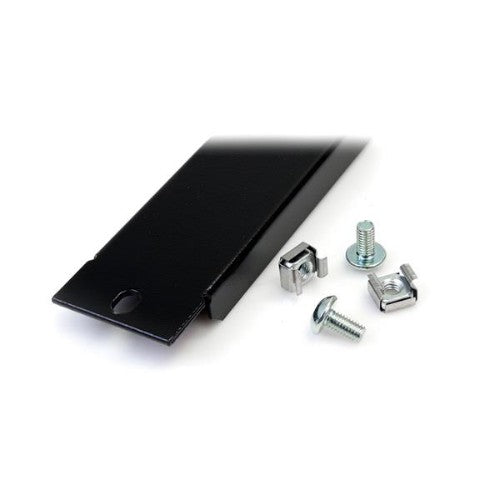

| Screws included |
Yes |
| Nuts included |
Yes |
| Screw type |
M6 |
| Technical details |
|---|
| Harmonized System (HS) code |
85389099 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
523 mm |
| Master (outer) case length |
251 mm |
| Master (outer) case height |
301 mm |
| Products per master (outer) case |
50 pc(s) |
| Harmonized System (HS) code |
85389099 |
