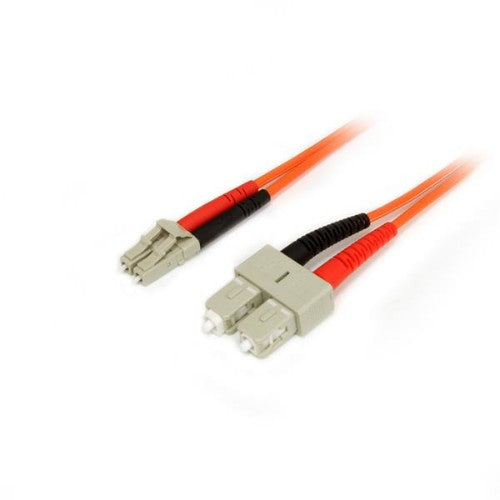

StarTech 1m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/SC
Key Features
- Immune to electrical interference
- OM2 (50/125) 500MHz multimode fiber
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Attenuation loss meets or exceeds industry standards
Description
Connect fiber network devices for high-speed transfers with LSZH rated cable
The 50FIBLCSC1 1m LSZH LC to SC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.
Specifications
| Features |
|---|
| Fibre optic type |
OM2 |
| Cable length |
1 m |
| Connector 1 |
LC |
| Connector 2 |
SC |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Product colour |
Orange |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
85447000 |
| Sustainability |
|---|
| Doesn't contain |
Halogen |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
18 g |
| Cable length |
1 m |
| Package width |
162 mm |
| Package depth |
137 mm |
| Package height |
26 mm |
| Package weight |
35 g |
| Packaging data |
|---|
| Package width |
162 mm |
| Package depth |
137 mm |
| Package height |
26 mm |
| Package weight |
35 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85447000 |
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
352 mm |
| Master (outer) case length |
245 mm |
| Master (outer) case height |
320 mm |
| Products per master (outer) case |
320 pc(s) |
| Harmonized System (HS) code |
85447000 |
