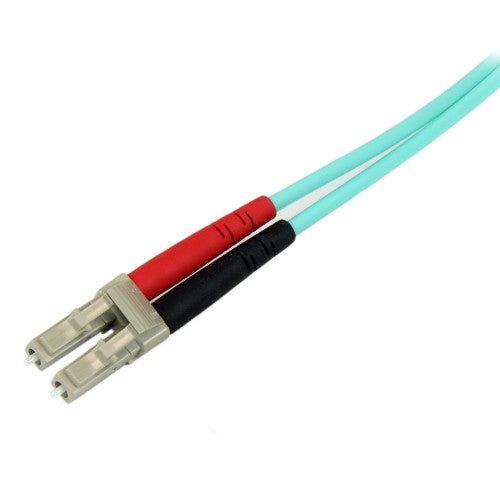

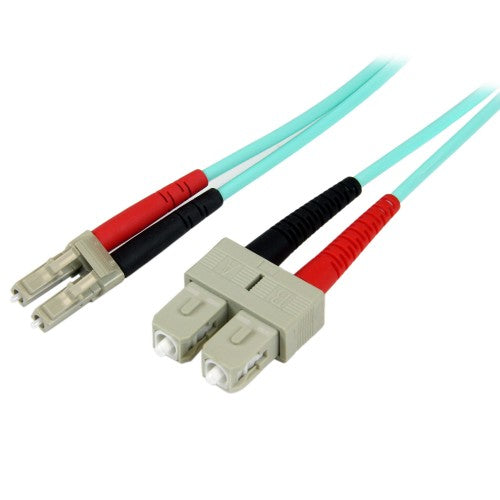

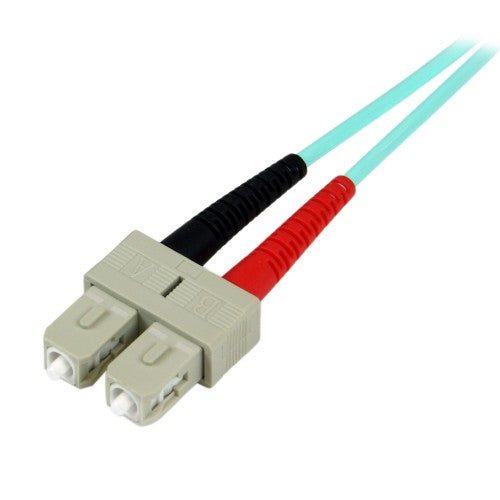

StarTech.com 1m (3ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord

StarTech 1m (3ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125, 100G, LSZH Fiber Jumper Cord

Key Features

• OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
• QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/SC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
• COMPATIBILITY: OM3 LC/SC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
• SPECS: 1m (3.3ft); Color: Aqua (OM3); LC/SC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

Description

Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment, this high speed 10 Gigabit Multimode Duplex Fiber Cable is terminated with LC and SC connectors, and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments, A50FBLCSC1 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire – making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Specifications

Features
Fibre optic type	OM3
Cable length	1 m
Connector 1	LC
Connector 2	SC
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Data transfer rate	10 Gbit/s
Wavelengths supported	850 nm
Product colour	Turquoise
Connector 2 gender	Male
Connector 1 gender	Male
Harmonized System (HS) code	85447000
Sustainability
Doesn't contain	Halogen
Certificates
Compliance certificates	RoHS
Weight & dimensions
Cable diameter	3 mm
Weight	26 g
Cable length	1 m
Package width	130 mm
Package depth	168 mm
Package height	42 mm
Package weight	35 g
Packaging data
Package width	130 mm
Package depth	168 mm
Package height	42 mm
Package weight	35 g
Technical details
Harmonized System (HS) code	85447000
Doesn't contain	Halogen
Compliance certificates	RoHS
Logistics data
Master (outer) case width	352 mm
Master (outer) case length	478 mm
Master (outer) case height	314 mm
Products per master (outer) case	320 pc(s)
Harmonized System (HS) code	85447000
