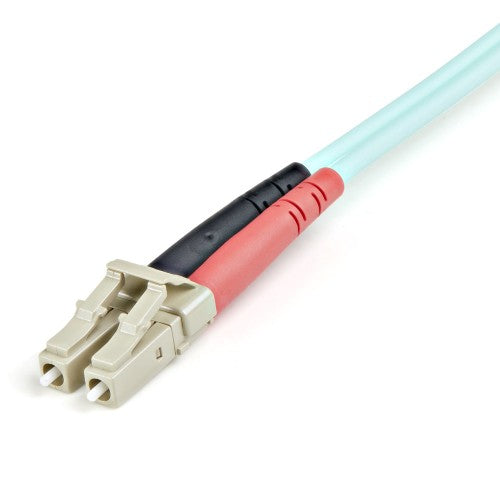

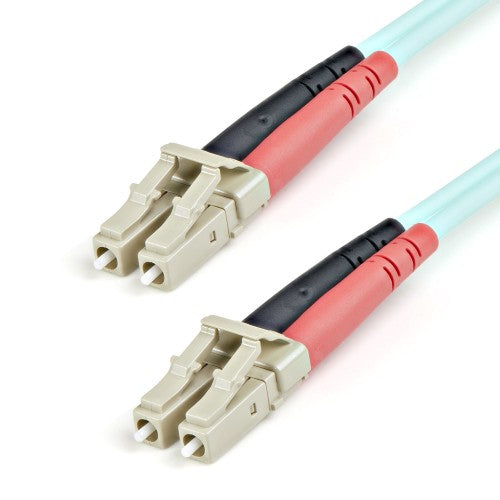

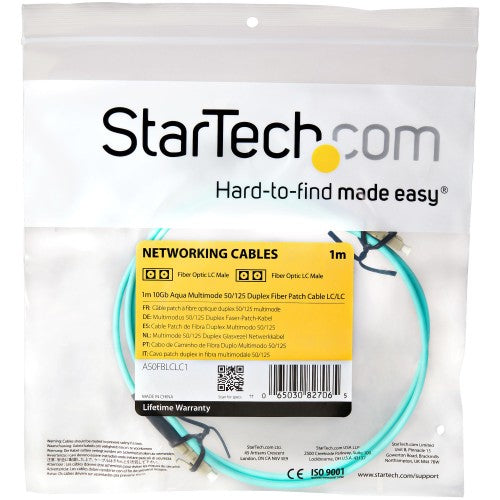

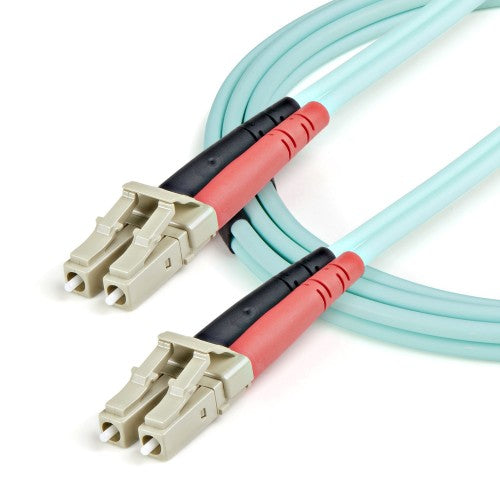

StarTech 1m (3ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125, 100G, LSZH Fiber Jumper Cord
Key Features
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
- SPECS: 1m (3.3ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Description
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+
The A50FBLCLC1 1m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
Specifications
| Features |
|---|
| Fibre optic type |
OM3 |
| Cable length |
1 m |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Data transfer rate |
100 Gbit/s |
| Wavelengths supported |
850 nm |
| Product colour |
Aqua colour |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certification |
CE |
| Harmonized System (HS) code |
85447000 |
| Sustainability |
|---|
| Doesn't contain |
Halogen |
| Certificates |
|---|
| Certification |
CE |
| Compliance certificates |
REACH, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Cable diameter |
3 mm |
| Weight |
15 g |
| Cable length |
1 m |
| Package width |
197 mm |
| Package depth |
203 mm |
| Package height |
16 mm |
| Package weight |
24 g |
| Packaging data |
|---|
| Package width |
197 mm |
| Package depth |
203 mm |
| Package height |
16 mm |
| Package weight |
24 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85447000 |
| Doesn't contain |
Halogen |
| Compliance certificates |
REACH, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
404 mm |
| Master (outer) case length |
410 mm |
| Master (outer) case height |
440 mm |
| Products per master (outer) case |
320 pc(s) |
| Harmonized System (HS) code |
85447000 |
