StarTech 12in LP4 to 2x Latching SATA Power Y Cable Splitter Adapter - 4 Pin LP4 to Dual SATA Y Splitter (PYO2LP4LSATA)
Key Features
- 1x LP4 power connector
- 2X Latching SATA Power Receptacles
- Provides 12" in cable length
Description
Power two SATA drives from a single LP4 power supply connector

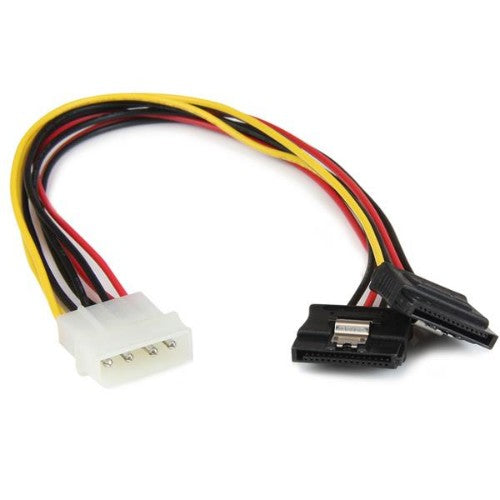

The PYO2LP4LSATA LP4 Molex to Dual Latching SATA power splitter cable features two Serial ATA female power connectors and one LP4 male connector - a reliable solution that enables you to power two SATA drives using a single LP4 connection to the computer power supply.
This durable LP4 to SATA Y cable adapter is 12 inches in length, giving you enough cable slack to position drives as needed within the computer case, while saving the cost and hassle of upgrading a power supply for compatibility with Serial ATA drives.
Expertly designed and constructed of top quality materials, the 4-pin Molex to SATA Splitter Power cable is backed by StarTech.com's Lifetime Warranty.
Specifications
| Features |
|---|
| Cable length |
0.304 m |
| Connector 1 |
Molex (4-pin) |
| Connector 2 |
2 x SATA 15-pin |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Product colour |
Multicolour |
| AWG wire size |
20 |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Certification |
CE, REACH |
| Certificates |
|---|
| Certification |
CE, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Depth |
304.8 mm |
| Weight |
28 g |
| Package width |
126 mm |
| Package depth |
142 mm |
| Package height |
15 mm |
| Package weight |
32 g |
| Packaging data |
|---|
| Package width |
126 mm |
| Package depth |
142 mm |
| Package height |
15 mm |
| Package weight |
32 g |
| Other features |
|---|
| Products per master (outer) case |
200 pc(s) |
| AWG wire size |
20 |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
200 pc(s) |
| Master (outer) case width |
340 mm |
| Master (outer) case length |
490 mm |
| Master (outer) case height |
214 mm |
| Harmonized System (HS) code |
84733080 |
