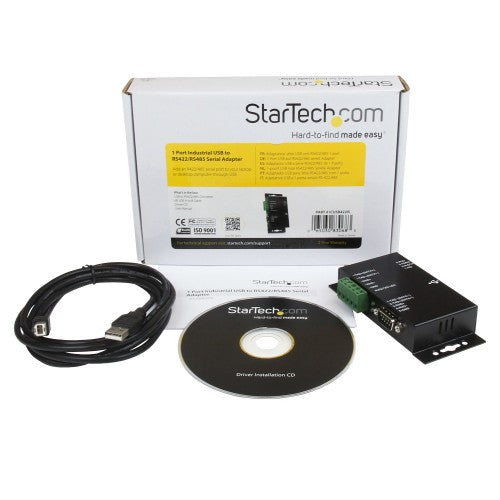

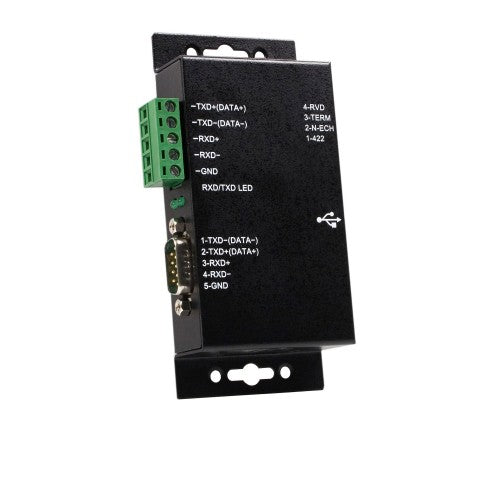

StarTech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation , TAA (ICUSB422IS)
Key Features
- Provides one RS422/485 port while powering the device through USB
- RS-485 mode supports Auto Transceiver Turn Around (ATTA)
- Compatible with both USB 2.0 and USB 1.1
- RS422/485 Baud rate up to 921.6 Kbps

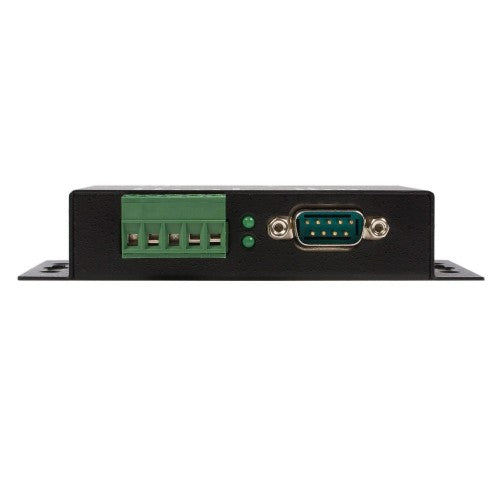

- Supports DB9 and terminal block connector
- Optical Isolation and Surge Protection (2500 Vrms)
- Supports 4-wire RS422 and 2-wire RS485 applications
Description
Add an R422/485 serial port to your laptop or desktop computer through USB
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces |
|---|
| Connector 1 |
USB B |
| Connector 2 |
RS-422/485 |
| Cable length |
1.8 m |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Performance |
|---|
| Product colour |
Black |
| Compatible operating systems |
Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
macOS 10.6 to 10.15, 11.0, 12.0, 13.0
Linux Kernel 3.0.x+ |
| Data transfer rate |
0.00088 Gbit/s |
| Input voltage |
5 V |
| Power |
|---|
| Input voltage |
5 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 85 °C |
| Relative humidity |
5 - 95% |
| Operating temperature (T-T) |
0 - 55 °C |
| Weight & dimensions |
|---|
| Width |
64 mm |
| Depth |
118 mm |
| Height |
23 mm |
| Weight |
180 g |
| Packaging content |
|---|
| Cables included |
USB |
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
145 mm |
| Package depth |
209 mm |
| Package height |
42 mm |
| Package weight |
390 g |
| Design |
|---|
| Product colour |
Black |
| Cable length |
1.8 m |
| Logistics data |
|---|
| Products per master (outer) case |
50 pc(s) |
| Master (outer) case width |
412 mm |
| Master (outer) case length |
426 mm |
| Master (outer) case height |
278 mm |
