StarTech.com Thunderbolt Dock w/ USB-C Host Compatibility - Dual 4K 60Hz DisplayPort 1.4 or Dual HDMI 2.0 Monitors - Single 8K - USB-C Laptop Docking Station - 96W PD, 5xUSB 10Gbps (TB3CDK2DH)
Key Features
- HIGH-PERFORMANCE DOCK: Alternative to TB3DK2DPPD; Easy Driverless setup; Dual monitor 4K 60Hz; 5x USB Hub (2x fast charge ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet (WoL/PXE), headset ports; 96W Power Delivery
- FLEXIBLE MONITOR OUTPUTS: Dual 4K 60Hz video output utilizing direct GPU performance with no software or compression; Use DP or HDMI monitors; Up to dual 4K 30Hz on USB-C (non TB3) laptops; Thunderbolt Dock with 2x DP 1.4 & 2x HDMI 2.0 ports

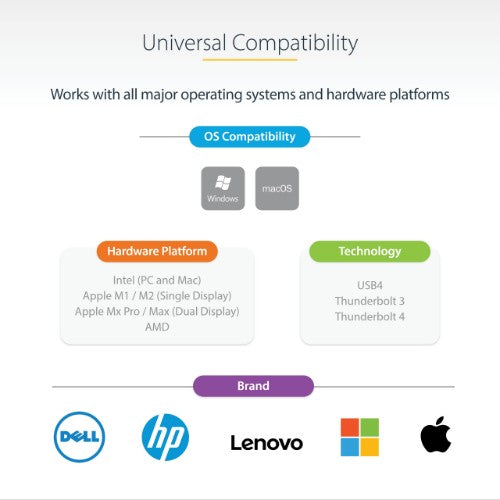

- COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
- 96W POWER DELIVERY 3.0 CERTIFIED: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; The Dock can deliver up to 100W peak power (96W sustained)

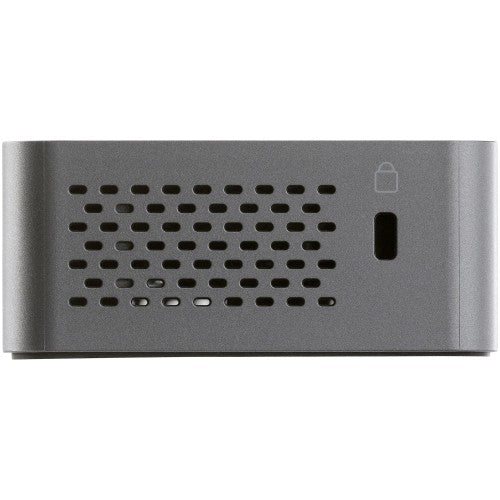

- DEVICE SECURITY: Thunderbolt/USB-C dock Includes 2.6ft (0.8m) Thunderbolt host cable; Mounting holes for optional brackets (SSPMSVESA, SSPMSUDWM); K-Slot for security lock
- OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Description
Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows®| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable
A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C® compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, Gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports.
Flexible Dual Display Outputs

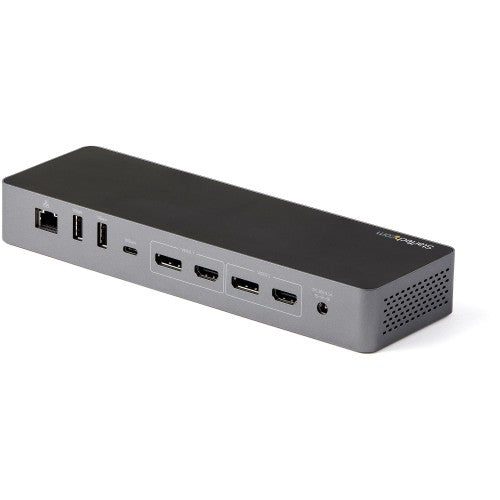

This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
DisplayPort + DisplayPort
HDMI + HDMI
DisplayPort + HDMI
Resolutions and video outputs are host-dependent.
Thunderbolt 3 or 4 Laptop
Single Monitor
Dual Monitors
Intel Laptops with 11th Gen or Later
8K 30Hz / 5K 60Hz / 4K 60Hz
4K 60Hz
Intel Laptops with 10th Gen or Earlier
5K 60Hz / 4K 60Hz
4K 60Hz
Apple M1 & M2 Pro/Max MacBooks
5K 60Hz / 4K 60Hz
4K 60Hz
Apple M1 & M2 MacBooks
5K 60Hz / 4K 60Hz
Mirrored Display Only
Intel Based MacBook's with Thunderbolt 3
5K 60Hz / 4K 60Hz
4K 60Hz
USB-C Laptop (No Thunderbolt)
Single Monitor
Dual Monitors
Laptops with Intel 10th Gen or Later
(Requires DP 1.4 Alt Mode)
4K 60Hz
4K 30Hz
Laptops with DP 1.2 Alt Mode
4K 30Hz
1080p 60Hz
More Downstream USB Ports
Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:
Front Facing:
• 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
• 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging
Back Facing:
• 2x USB 3.2 Gen 1 Type-A (5 Gbps)
• 1x USB 3.2 Gen 2 Type-C (10 Gbps)
Easy to Set Up & Manage

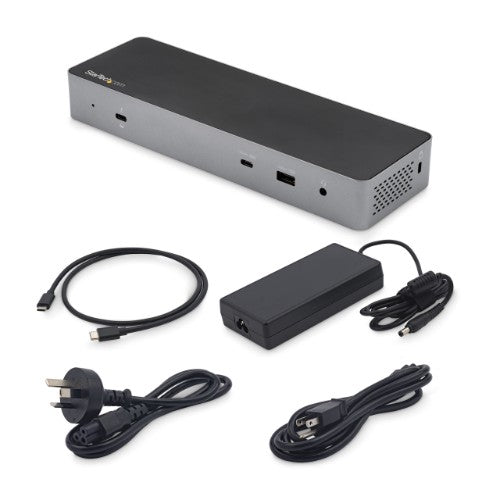

This universal Thunderbolt / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
0 |
| Host interface |
Thunderbolt 3 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| DisplayPorts quantity |
2 |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
96 W |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
2 |
| Product colour |
Black, Silver |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| Data transfer rate |
10 Gbit/s |
| Cable lock slot type |
Kensington |
| HD type |
4K Ultra HD |
| Maximum refresh rate |
60 Hz |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Compatible power plug types |
AU, JP, US |
| Input current |
2.5 A |
| Power plug type |
Type N |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
8.5 A |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported |
Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
80 mm |
| Height |
30 mm |
| Weight |
250 g |
| Package width |
305 mm |
| Package depth |
160 mm |
| Package height |
110 mm |
| Package weight |
1.1 kg |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Product colour |
Black, Silver |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Package width |
305 mm |
| Package depth |
160 mm |
| Package height |
110 mm |
| Package weight |
1.1 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
Thunderbolt |
| AC adapter included |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case width |
248 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case height |
320 mm |
| Products per shipping (inner) case |
40 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case width |
248 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case height |
320 mm |
| Products per shipping (inner) case |
40 pc(s) |
| Other features |
|---|
| Chipset |
C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C |
