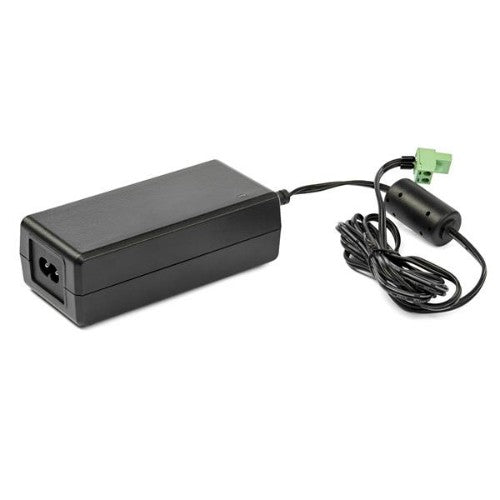

StarTech DC Power Adapter - 20V, 3.25A - Universal AC DC Power Supply Block Adapter - External 2 Pin Terminal Block (ITB20D3250)
Key Features
- Terminal block power adapter has been designed for StarTech.com industrial products
- Use as an alternative power source, replacement, or back-up power supply when sufficient bus-power is unavailable

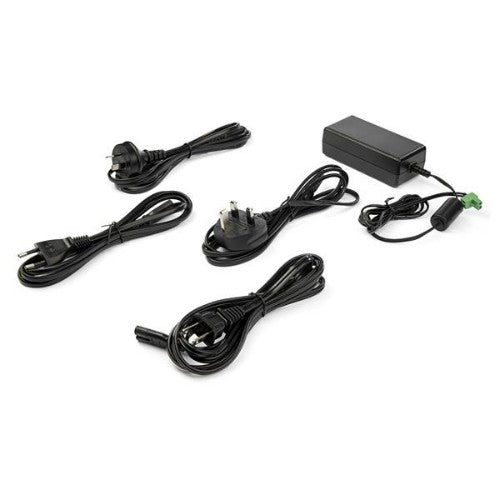

- Includes regional plug attachments for NA/JP, EU, UK & ANZ
- Includes an attached two conductor terminal block
- Includes an additional three conductor terminal block
Description
External Power Supply | 65W | 2 Wire & 3 Wire Terminal Block
This universal DC power adapter has been designed as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.
Compatible USB 3.0 Hubs
10-Port Industrial USB 3.0 Hub with External Power Adapter - ESD & 350W Surge Protection (HB30A10AME)
10-Port Industrial USB 3.0 Hub with ESD & 350W Surge Protection (ST1030USBM)
7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection (5G7AINDRM-USB-A-HUB)
7-Port Industrial USB 3.0 Hub with External Power Adapter - ESD & 350W Surge Protection (HB30A7AME)
7-Port Industrial USB 3.0 Hub with ESD & 350W Surge Protection (ST7300USBME)
4 Port USB C Hub 10Gbps - 2x USB-C & 2x USB-A - ESD Surge Protection (HB31C2A2CME)
4-Port Managed USB Hub with 4x USB-A, Heavy Duty w/ Metal Industrial Housing, ESD & Surge Protection (5G4AINDRM-USB-A-HUB)
4-Port Industrial USB 3.0 5Gbps Hub - Rugged USB Hub w/ ESD and Surge Protection (5G4AINDNP-USB-A-HUB)
4-Port Industrial USB 3.0 Hub with ESD Protection (ST4300USBM)
Compatible USB 2.0 Hubs:
10-Port Industrial USB 2.0 Hub, Rugged USB Hub w/ESD Level 4 Protection (USB210AIND-USB-A-HUB)
7-Port Industrial USB 2.0 Hub ESD Protection & 350W Surge Protection (HB20A7AME)
7-Port Industrial USB 2.0 Hub with ESD & 350W Surge Protection (ST7200USBM)
4-Port Industrial USB 2.0 Hub with ESD Protection & 350W Surge Protection (HB20A4AME)
4-Port Industrial USB 2.0 Hub with ESD Protection (ST4200USBM)
The external terminal power adapter can also be used with any other devices that can support 20V power supply including a variety of StarTech.com Ethernet Switches and Serial Adapters.
Specifications
| Features |
|---|
| Brand compatibility |
StarTech.com |
| Input current |
1.4 A |
| Input voltage |
110 - 240 V |
| Output power |
65 W |
| Output voltage |
20 V |
| Output current |
3.25 A |
| Power supply type |
Indoor |
| Purpose |
Universal |
| Product colour |
Black |
| Certification |
REACH, CE, FCC, UL, PSE |
| Power |
|---|
| Input current |
1.4 A |
| Input voltage |
110 - 240 V |
| Output power |
65 W |
| Output voltage |
20 V |
| Output current |
3.25 A |
| Performance |
|---|
| Brand compatibility |
StarTech.com |
| Power supply type |
Indoor |
| Purpose |
Universal |
| Connector(s) |
Terminal Block |
| Certification |
REACH, CE, FCC, UL, PSE |
| Design |
|---|
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Certificates |
|---|
| Certification |
REACH, CE, FCC, UL, PSE |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
291 g |
| Width |
53 mm |
| Depth |
115 mm |
| Height |
35 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
AC |
| Package width |
169 mm |
| Package depth |
243 mm |
| Package height |
62 mm |
| Package weight |
843 g |
| Quantity per pack |
1 pc(s) |

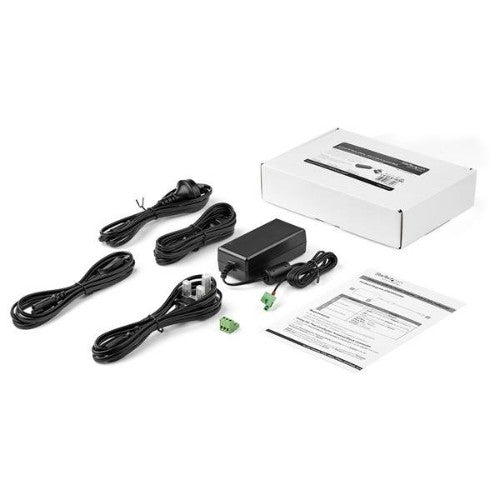

| Packaging content |
|---|
| Quick installation guide |
Yes |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Cables included |
AC |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
25 pc(s) |
| Master (outer) case width |
540 mm |
| Master (outer) case length |
458 mm |
| Master (outer) case height |
343 mm |
| Harmonized System (HS) code |
85044095 |
