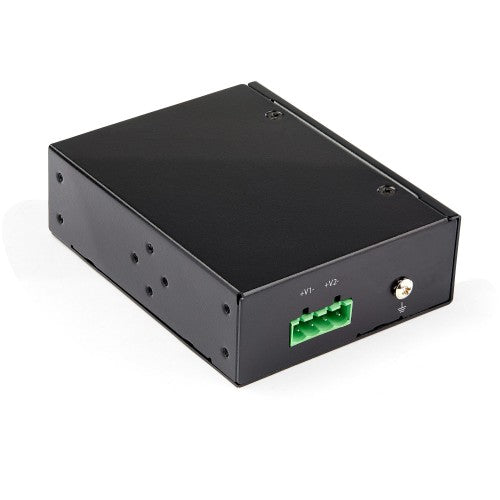

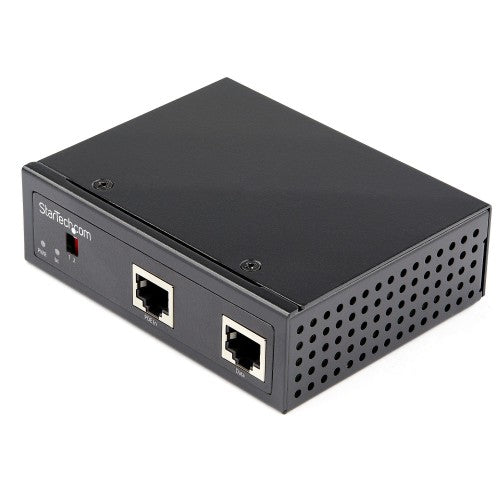

StarTech Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C , TAA (POESLT1G48V)
Key Features
- HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available / Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block)
- 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block
- TECH SPECS: High Speed 1 Gbps / 1 x RJ45 PoE In / 1 x RJ45 Data Out / 12V-48VDC 1.5A power output / 4 pin Terminal Block Power Out / 10/100/1000 Mbps Auto Negotiation / DIN or Wall Mountable
- ROBUST DESIGN: Industrial Power over Ethernet Splitter w/MTBF of 600,000+ hrs @ 50C / Vibration, shock & free fall rated / Rugged IP-30 aluminum housing / Hardened operating temp of -40C to 75C
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This PoE Splitter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description
Rugged PoE Splitter | 12-48V DC | IP-30 Aluminum Housing | 1.5A Power Output

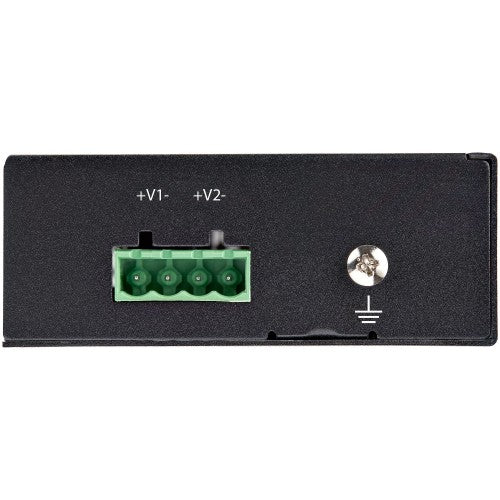

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.
Power Non-PoE Devices
Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:
• Security (card swipe or proximity boxes)
• Environmental monitoring (temperature/moisture sensors)
• Telco (analog interface systems/conversion)
Straightforward Deployment
Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

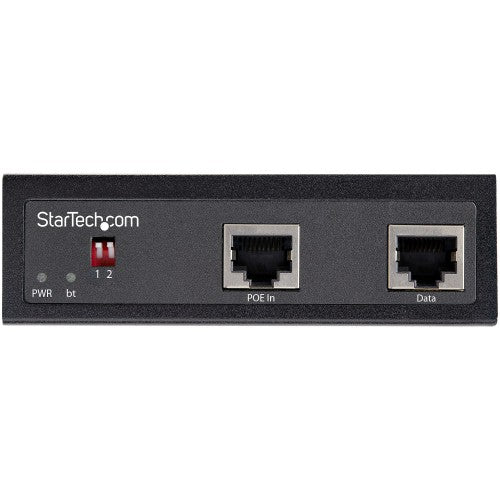

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Duplex system |
Full |
| Auto MDI/MDI-X |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Cabling technology |
10/100/1000Base-T(X) |
| Supported network protocols |
CSMA/CD |
| Features |
|---|
| Surge protection |
Yes |
| Maximum operating distance |
100 m |
| Product colour |
Black |
| LED indicators |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Certification |
CE, FCC, UL |
| Ports & interfaces |
|---|
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Power |
|---|
| Output current |
1.5 A |
| Total Power over Ethernet (PoE) budget |
90 W |
| Certificates |
|---|
| Certification |
CE, FCC, UL |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-40 - 75 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Weight |
150 g |
| Width |
81.5 mm |
| Depth |
104 mm |
| Height |
32 mm |
| Package weight |
392 g |
| Package depth |
214 mm |
| Package width |
168 mm |
| Package length |
21.1 cm |
| Package height |
66 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Packaging data |
|---|
| Package weight |
392 g |
| Package depth |
214 mm |
| Package width |
168 mm |
| Package length |
21.1 cm |
| Package height |
66 mm |
| Technical details |
|---|
| Power over Ethernet (PoE) |
Yes |
| Package width |
168 mm |
| Package length |
21.1 cm |
| Package height |
66 mm |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Harmonized System (HS) code |
85044095 |
| Compliance certificates |
RoHS |
| Indication |
|---|
| LED indicators |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
360 mm |
| Master (outer) case length |
368 mm |
| Master (outer) case height |
248 mm |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
85044095 |
