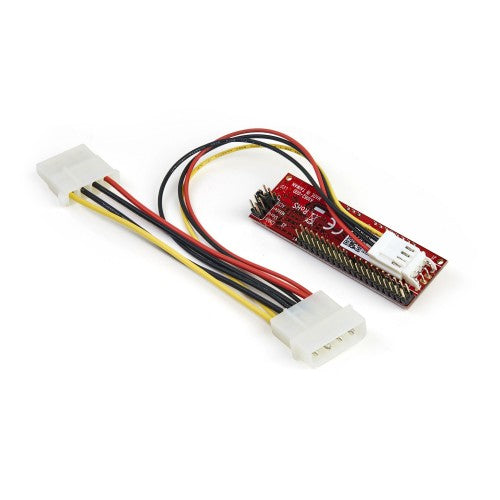

StarTech IDE to SATA Hard Drive or Optical Drive Adapter Converter, 40-Pin PATA to 2.5" SATA HDD / SSD / ODD Converter, TAA
Key Features
- CONVENIENT SETUP: This IDE to SATA adapter enables SATA connectivity on older IDE motherboards, and is a complete hardware solution that does not require additional drivers or software; Works with any Operating System
- ADD SATA CONNECTIVITY: This IDE SATA converter is a cost-effective solution for connecting SATA hard drives or optical drives to legacy IDE systems, with no additional controller cards required; Includes LP4 to SP4 internal power cable
- WIDE COMPATIBILITY: Supports 2.5/3.5/5.25in SATA drives; Features features ODD (Optical Disk Drive) support for Blu-ray, DVD, or CD-ROM drives; Compliant with SATA version 1.0 and supports SATA I/II/III; Compatible with IDE/ATA 33/66/100/133
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this IDE to SATA motherboard adapter is backed for 2 years, including free lifetime 24/5 multi-lingual assistance
Description
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Host interface |
IDE |
| Output interface |
SATA |
| Connector(s) |
1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
| Performance |
|---|
| Chipset |

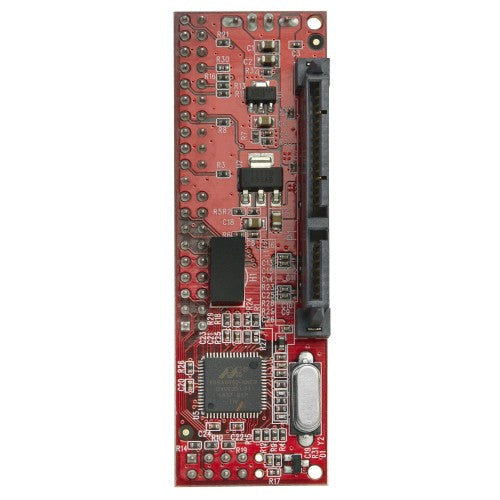

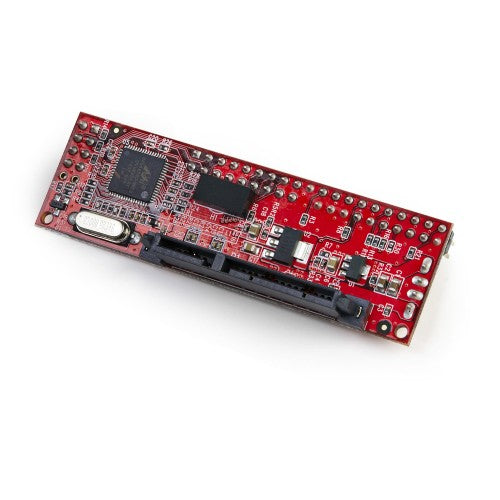

Marvell - 88SA8052 |
| Logical block addressing (LBA) support |
48 bit |
| Data transfer rate (max) |
0.133 Gbit/s |
| Product colour |
Red |
| Harmonized System (HS) code |
84733020 |
| Design |
|---|
| Internal |
Yes |
| Product colour |
Red |
| Certification |
FCC, CE, TAA, REACH |
| Features |
|---|
| Chipset |
Marvell - 88SA8052 |
| Logical block addressing (LBA) support |
48 bit |
| Data transfer rate (max) |
0.133 Gbit/s |
| Harmonized System (HS) code |
84733020 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 50 °C |
| Storage temperature (T-T) |
-25 - 80 °C |
| Operating relative humidity (H-H) |
15 - 90% |
| Technical details |
|---|
| Material |
Plastic, Steel |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
20 mm |
| Depth |
75.5 mm |
| Height |
23 mm |
| Weight |
29 g |
| Package width |
142 mm |
| Package depth |
174 mm |
| Package height |
34 mm |
| Package weight |
89 g |
| Packaging data |
|---|
| Manual |
Yes |
| Package width |
142 mm |
| Package depth |
174 mm |
| Package height |
34 mm |
| Package weight |
89 g |
| Logistics data |
|---|
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case width |
512 mm |
| Master (outer) case length |
396 mm |
| Master (outer) case height |
326 mm |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Material |
Plastic, Steel |
| Chipset |
Marvell - 88SA8052 |
| Packaging content |
|---|
| Manual |
Yes |
