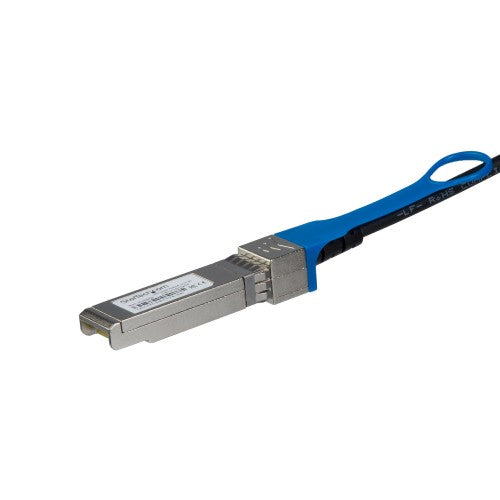

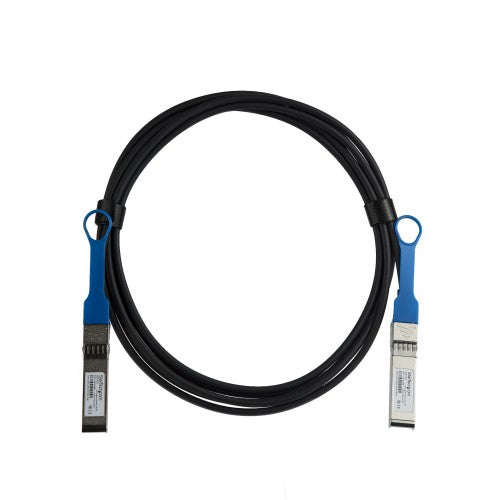

StarTech HPE JD097C Compatible 3m 10G SFP+ to SFP+ DAC Twinax - 10GbE SFP+ Copper DAC 10 Gbps Low Power Passive Mini GBIC/Transceiver Module DAC Firepower A5500 (JD097CST)
Key Features
- 100% HPE JD097C COMPATIBLE: Works with HPE switches like 5500, A5500, 5800, A5800, 5800AF and others
- TECHNICAL SPECS: 3m (9.8ft) / 10 Gbps / Passive Twinax (Copper) / 2x SFP+ Pluggable Connector / 100 Ohm Impedance / 30 AWG Wire Gauge / PVC Cable Jacket / Hot swappable / MSA Compliant
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 10GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
Description
Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty
The JD097CST is an HPE JD097C compatible direct-attach copper SFP+ cable that’s designed, programmed and tested to work with HPE® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency SFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Features |
|---|
| Cable length |
3 m |
| Connector 1 |
SFP+ |
| Connector 2 |
SFP+ |
| Jacket material |
Polyvinyl chloride (PVC) |
| Product colour |
Black |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Plug and Play |
Yes |
| Data transfer rate |
10000 Mbit/s |
| Cable shielding |
U/FTP (STP) |
| InfiniBand protocol |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Certification |
CE, FCC, REACH |
| Harmonized System (HS) code |
84733080 |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Weight & dimensions |
|---|
| Weight |
130 g |
| Cable length |
3 m |
| Package width |
199 mm |
| Package depth |
182 mm |
| Package height |
24 mm |
| Package weight |
138 g |
| Packaging data |
|---|
| Package width |
199 mm |
| Package depth |
182 mm |
| Package height |
24 mm |
| Package weight |
138 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
264 mm |
| Master (outer) case length |
346 mm |
| Master (outer) case height |
308 mm |
| Products per master (outer) case |
20 pc(s) |
| Harmonized System (HS) code |
84733080 |
