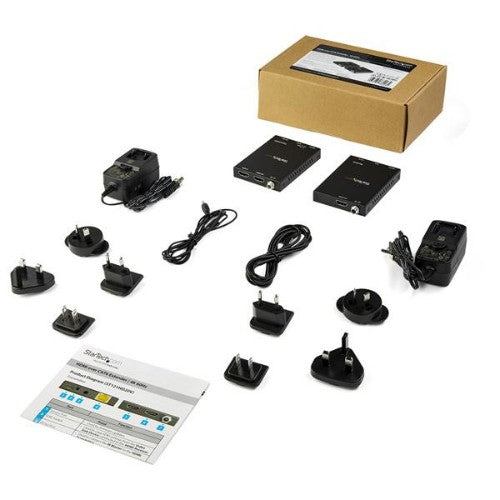

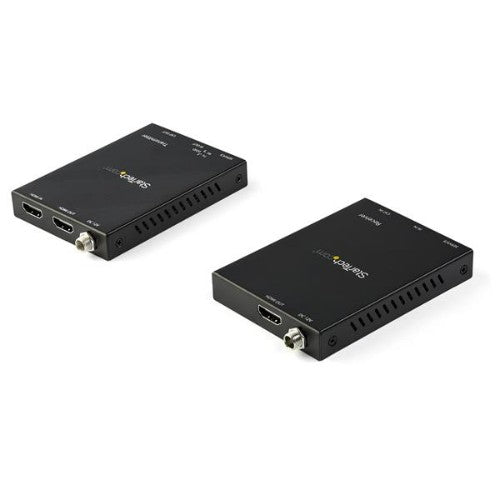

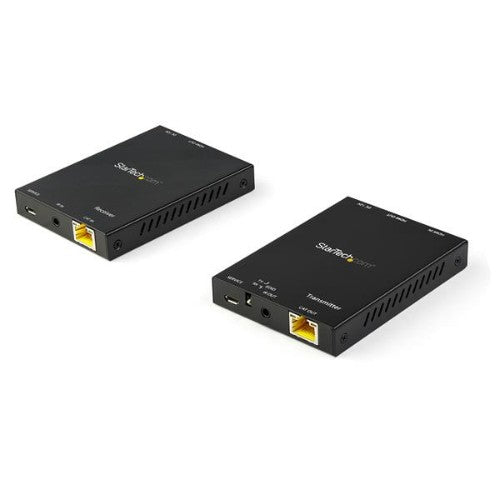

StarTech HDMI over CAT6 Extender Kit - 4K 60Hz - HDMI Balun Kit - Signal up to 165 ft / 50m - HDR - 4:4:4 - 7.1 Audio Support (ST121HD20V)
Key Features
- Crystal-clear picture quality with support for resolutions up to 4K 60Hz
- Compatible with HDR and 4:4:4 chroma subsampling for lifelike images
- Hassle-free setup with long-distance transmission over a reliable connection
- Ensured compatibility with HDCP 2.2 devices and displays
Description
HDMI® Balun Kit | HDR | 4:4:4 | 7.1 Audio Support | 165 ft. (50 m)
This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.
Astonishing 4K Picture Quality
This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that's ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.
Long-Distance Transmission
Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.
Compatible with HDCP 2.2 Devices
Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.
ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.
Specifications
| Features |
|---|
| HDCP |
Yes |
| Audio output channels |
7.1 channels |
| Maximum refresh rate |
60 Hz |
| Type |
AV transmitter & receiver |
| Maximum resolution |
3840 x 2160 pixels |
| Cable types supported |
Cat6 |
| Maximum transfer distance |
50 m |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Product colour |
Black |
| Certification |
CE, FCC, REACH |
| HDCP version |
2.2 |
| Ports & interfaces |
|---|
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
| Number of HDMI outputs |
2 |
| HDMI version |
2.0 |
| Connectivity technology |
Wired |
| Power |
|---|
| Input current |
0.3 A |
| Output current |
1 A |
| Power plug type |
Type M |
| Operating voltage (transmitter) |
12 V |
| Operating voltage (receiver) |
12 V |
| AC input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
156 g |
| Width |
70 mm |
| Height |
13 mm |
| Depth |
97 mm |
| Packaging data |
|---|
| Package width |
133 mm |
| Package height |
75 mm |
| Package depth |
225 mm |
| Package weight |
777 g |
| Packaging content |
|---|
| IR receiver included |
Yes |
| IR blaster included |
Yes |
| Quick start guide |
Yes |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Technical details |
|---|
| Harmonized System (HS) code |
85176200 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
468 mm |
| Master (outer) case length |
385 mm |
| Master (outer) case height |
294 mm |
| Products per master (outer) case |
20 pc(s) |
| Harmonized System (HS) code |
85176200 |
