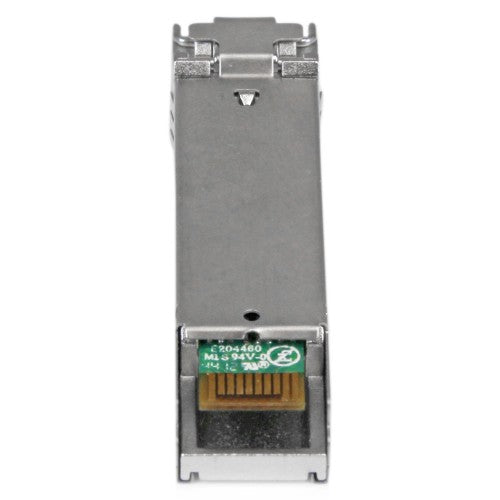

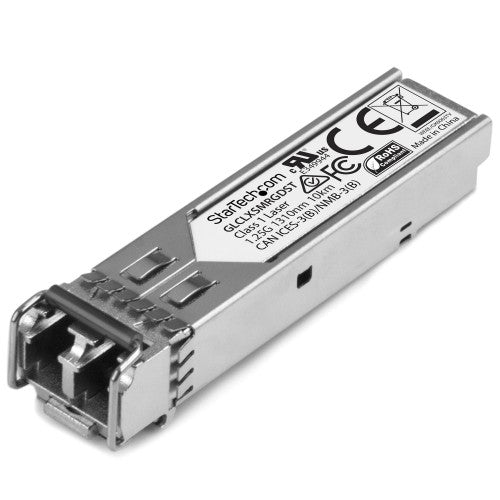

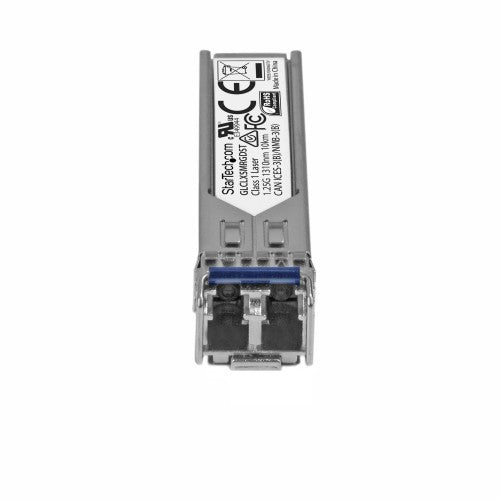

StarTech Cisco GLC-LX-SM-RGD Compatible SFP Module - 1000BASE-LX - 1GbE SMF Optic Transceiver - LC 10km 1310nm - DDM Cisco Firepower, ASR920, IE2000 (GLCLXSMRGDST)
Key Features
- 100% CISCO GLC-LX-SM-RGD COMPATIBLE: Works with Cisco switches like Firepower, ASR920, IE2000, IE4000, ASR1000 and others
- TECHNICAL SPECS: 1000BASE-LX / 1 Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The GLCLXSMRGDST is a Cisco GLC-LX-SM-RGD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Duplex system |
Full |
| Single-mode fiber (SMF) supported |
Yes |
| SFP transceiver standard |
LX |
| Country of origin |
China |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
3092408 h |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
3092408 h |
| Country of origin |
China |
| Power |
|---|
| Power consumption (typical) |
1 W |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| Weight & dimensions |
|---|
| Width |
13.7 mm |
| Depth |
56.6 mm |
| Height |
12.5 mm |
| Weight |
16 g |
| Package width |
92 mm |
| Package depth |
113 mm |
| Package height |
33 mm |
| Package weight |
48 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
92 mm |
| Package depth |
113 mm |
| Package height |
33 mm |
| Package weight |
48 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Country of origin |
China |
| Master (outer) case width |
205 mm |
| Master (outer) case length |
300 mm |
| Master (outer) case height |
254 mm |
| Products per master (outer) case |
33 pc(s) |
| Harmonized System (HS) code |
85369010 |
