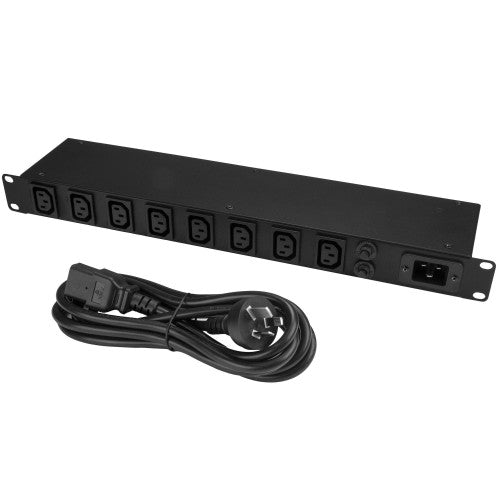

StarTech 8-Port Rack-Mount PDU with C13 Outlets - 16 A - 10 ft. Power Cord (AS3112) - Power Distribution Unit - 1U (PDU08C13AU)
Key Features
- Ensure hassle-free installation with a 1U EIA-310D compliant PDU
- Get wide device compatibility with a PDU that features C13 outlets
- 10 ft. (3 m) C19 to AS3112 power cord included

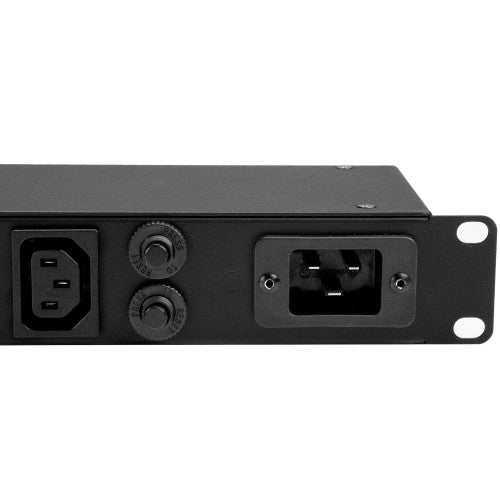

- Protect your equipment with the dual circuit breaker that's built into this PDU
- Solid steel chassis for durability
- 1U rack-mount design
Description
Add eight C13 power outlets to your server-rack, with this power distribution unit
This rack-mount PDU features eight C13 outlets and you can install it into 1U of rack space to power your rack-mount equipment.
Sleek, professional installation
Unlike some rack power solutions that mount awkwardly if at all, this rack-mount PDU is EIA-310D compliant, which ensures a secure and tidy installation into any 19" rack with 1U of available space. Mounting screws and cage nuts are also included to ensure you have everything you need, saving you time and hassle.
Flexible power solution
For maximum compatibility with your devices, this PDU features C13 outlets which are ideal for a wide range of globally distributed devices including I.T equipment, office equipment, measuring instruments and medical devices. Plus, with a total of eight C13 outlets, the PDU can distribute power to your entire rack.
Protects your equipment
In the event of random energy surges that can occur during power outages or other anomalies, this PDU prevents costly damages to your equipment with a built-in dual circuit breaker, ensuring your equipment is protected.
The housing of this PDU is also constructed of rugged steel to provide maximum durability in any environment.
The PDU08C13AU is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: Although the PDU can provide 16 amps of power to be shared across eight outlets, due to regional limitations, the cord provided is only rated at 15 amps. A user supplied cord and capable outlet would be required to attain the full 16 amp rating.
Specifications
| Design |
|---|
| Type |
Single-phase |
| Mounting |
Horizontal |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Steel |
| Ports & interfaces |
|---|
| Power plug |
C20 coupler |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Features |
|---|
| Cable length |
3 m |
| Surge protection |
Yes |
| Ergonomics |
|---|
| Cable length |
3 m |
| Power |
|---|
| Surge energy rating |
3600 J |
| Nominal input voltage |
110 - 240 V |
| Maximum current |
16 A |
| Nominal output voltage |
110 - 240 V |
| Output voltage |
240 V |
| Load capacity |
3600 VA |
| Maximum total current draw per phase |
16 A |
| Surge protection |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Weight |
2 kg |
| Width |
480 mm |
| Depth |
100 mm |
| Height |
44 mm |
| Package width |
190 mm |
| Package depth |
552 mm |
| Package height |
82 mm |
| Package weight |
2.2 kg |
| Packaging content |
|---|
| Cables included |
AC |
| Screws included |
Yes |
| Screw nuts included |
Yes |
| Number of screws |
4 |
| Number of screw nuts |
4 |
| Packaging data |
|---|
| Package width |
190 mm |
| Package depth |
552 mm |
| Package height |
82 mm |
| Package weight |
2.2 kg |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
432 mm |
| Master (outer) case length |
564 mm |
| Master (outer) case height |
214 mm |
| Products per master (outer) case |
5 pc(s) |
