StarTech 6U Wall Mount Patch Panel Bracket – 19 in – Steel - Vertical Mounting Bracket for Networking and Data Equipment , TAA (RK619WALLV)
Key Features
- NO ASSEMBLY REQUIRED: For added convenience, this 6U wall mount patch panel bracket arrives fully assembled with cage screws and nuts for mounting equipment
- BUILT TO LAST: Constructed to EIA-310 19in rack standards, the wall mount bracket features a solid steel design for ultimate durability
- VERSATILE FUNCTIONALITY: This multi-use patch panel bracket enables you to mount your server or networking equipment vertically on a wall or horizontally under a desk for added versatility
- STANDARDIZED HOLE SIZING: Wall mounting holes are 16 inches center to center for greater stability, and mounting to standard wall studs
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this wall mount patch panel bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description

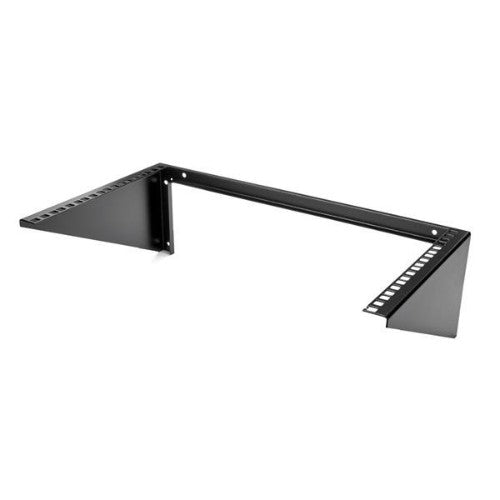

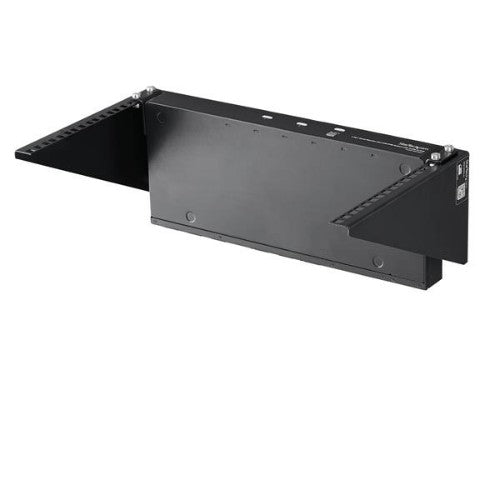

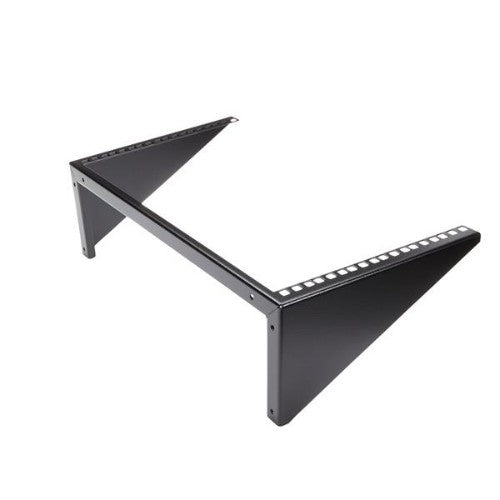

Mount server, network or telecommunications devices vertically with this 6U wall-mountable rack

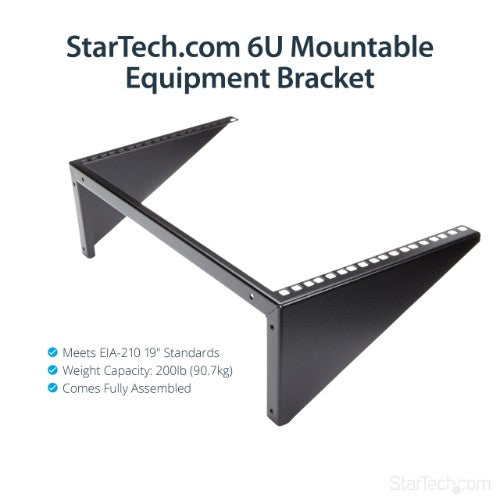

This wall-mount bracket provides 6U of storage space to vertically mount your equipment on the wall. The 6U wall-mount rack is EIA-310-D compliant to ensure compatibility with any 19” rack-mount equipment, such as your power strips, telecommunication, network and A/V devices.
Save space by mounting your equipment to the wall or other surface
The 6U rack optimizes your working space by mounting equipment to your wall instead of taking up desk space or other surface area. It's perfect for your SoHo (small office, home office) environment, server room or any other location where available space is limited.
Ensure a secure and hassle-free installation

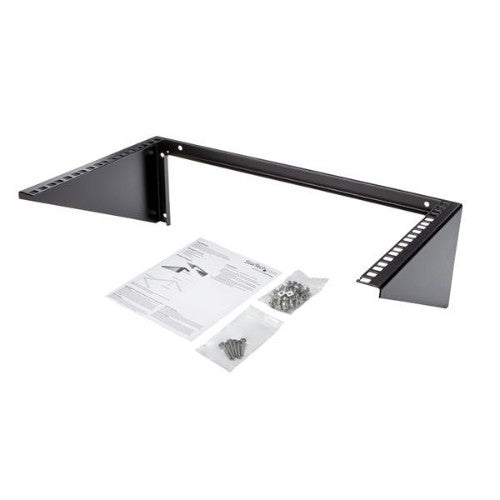

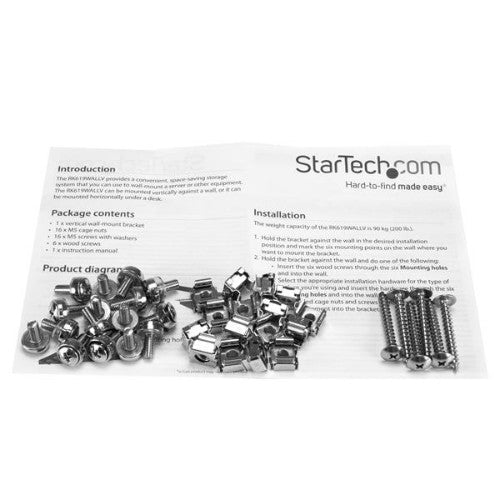

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your expensive, mission-critical equipment. Also, because the wall mounting holes are positioned 16”apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. Cage nuts and screws are also included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.
Customize your workspace with versatile installation options

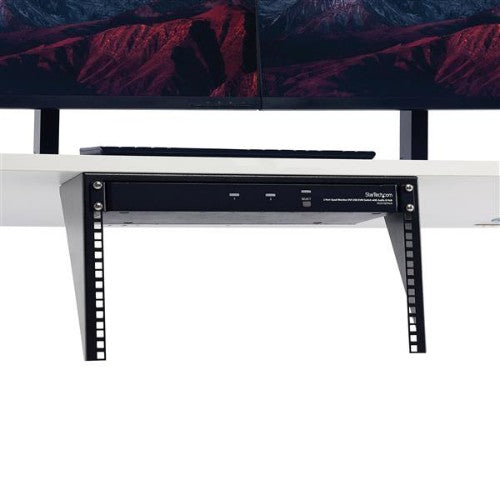

To provide a suitable mounting solution for virtually any surface such as your wall, ceiling or desk, the 6U bracket features separate mounting patterns for both ceilings and walls. This means that you can mount the bracket vertically to your wall or horizontally to your ceiling or under your desk.
If you're looking for a mountable storage solution with fewer rack units, StarTech.com also offers a 1U wall-mount bracket, a 2U wall-mount bracket, a 3U wall-mount bracket and a 4U wall-mount bracket.
The RK619WALLV is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Weight & dimensions |
|---|
| Package width |
547 mm |
| Package depth |
306 mm |
| Package height |
171 mm |
| Package weight |
2.2 kg |
| Width |
505 mm |
| Depth |
152 mm |
| Height |
282 mm |
| Weight |
1.3 kg |
| Packaging content |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Nuts included |
Yes |
| Number of nuts |
16 |
| Screws included |
Yes |
| Number of screws |
22 |
| Features |
|---|
| Number of fans |
0 fan(s) |
| Frame type |
Open |
| Product design |
2-post |
| Rack capacity |
6U |
| Castor wheels |
No |
| Cable management |
No |
| Mounting hole shape |
Square |
| Type |
Wall mounted rack |
| Maximum weight capacity |
90.7 kg |
| Material |
Steel |
| Product colour |
Black |
| Certification |
CE, TAA, REACH |
| Packaging data |
|---|
| Wall mounting kit |
Yes |
| Manual |
Yes |
| Nuts included |
Yes |
| Number of nuts |
16 |
| Package width |
547 mm |
| Package depth |
306 mm |
| Package height |
171 mm |
| Package weight |
2.2 kg |
| Screws included |
Yes |
| Number of screws |
22 |
| Technical details |
|---|
| Harmonized System (HS) code |
85381000 |
| Compliance certificates |
RoHS |
| Rack capacity |
6U |
| Logistics data |
|---|
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
