StarTech 6ft / 2m USB-C to Mini DisplayPort Cable - 4K 60Hz - Black - USB 3.1 Type C to mDP Adapter (CDP2MDPMM6B)
Key Features
- ADAPTER AND CABLE IN ONE: This USB-C to Mini DP cable lets you connect your Thunderbolt 3, Thunderbolt 4 or USB-C computer to a Mini DisplayPort (mDP) monitor with just one cable
- NOTE: This is not a Thunderbolt cable, not reversible and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; This cable connects a USB-C or Thunderbolt 3/4 laptop to a monitor with Mini-DisplayPort
- 4K 60HZ RESOLUTION: USB-C to Mini DisplayPort Cable Adapter delivers UHD picture quality with support for video resolutions up to 4K 60Hz; It's also backwards compatible with 1080p monitors or displays
- THUNDERBOLT 3 AND USB-C COMPATIBLE: USB-C to mDP cable works with Thunderbolt 3 / 4 computers and USB Type-C ports supporting video; Please check with your computer manufacturer to confirm video over USB-C (DP Alt mode) support
- HASSLE-FREE SETUP: This USB Type-C to Mini DP adapter cable supports plug-and-play installation on both Windows and Mac computers; No driver installation required
Description
Mini DP Adapter Cable | Thunderbolt™ 3 Compatible | USB 3.1 Type-C™

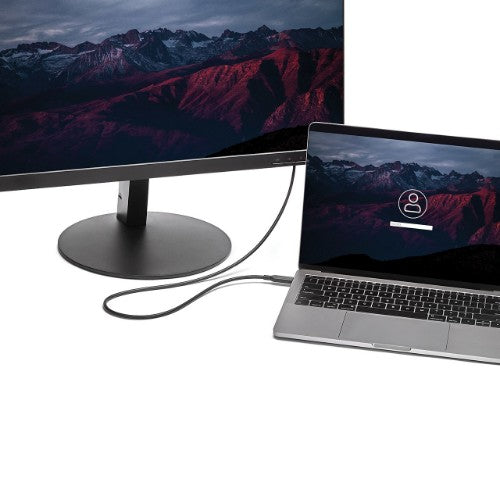

This USB-C to Mini DisplayPort cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to a Mini DP monitor with just one cable, for a convenient, clutter-free connection.
Astonishing Picture Quality
Harness the video capabilities that are built into your USB-C connection. The USB Type-C to Mini DisplayPort cable delivers the astonishing quality of Ultra HD to your 4K display, at resolutions up to 3840 x 2160. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.
Clutter-Free Installation
At 6 ft. (1.8 m) in length, this Mini DP cable delivers a compact connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 1 m (3.3 ft.) USB C to mDP cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-Free Setup
For easy operation and installation, this USB 3.1 Type-C to Mini DP adapter cable supports plug-and-play installation on both Windows and Mac computers.
CDP2MDPMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Specifications
| Features |
|---|
| Chipset |
STMicroelectronics - STM32F072CBU6 |
| Cable length |
1.8 m |
| Connector 1 |
USB Type-C |
| Connector 2 |
Mini DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black |
| Maximum resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Plug and Play |
Yes |
| Certification |
CE, FCC, REACH |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| Supported audio channels |
7.1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
25 - 60% |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Width |
20 mm |
| Height |
10 mm |
| Depth |
215 mm |
| Weight & dimensions |
|---|
| Weight |
58 g |
| Package width |
198 mm |
| Package depth |
170 mm |
| Package height |
17 mm |
| Package weight |
52 g |
| Width |
20 mm |
| Height |
10 mm |
| Depth |
215 mm |
| Packaging data |
|---|
| Package width |
198 mm |
| Package depth |
170 mm |
| Package height |
17 mm |
| Package weight |
52 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
511 mm |
| Master (outer) case length |
341 mm |
| Master (outer) case height |
233 mm |
| Products per master (outer) case |
60 pc(s) |
| Harmonized System (HS) code |
84733080 |
