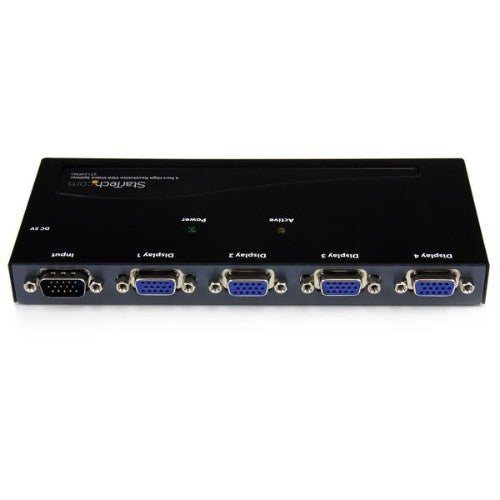

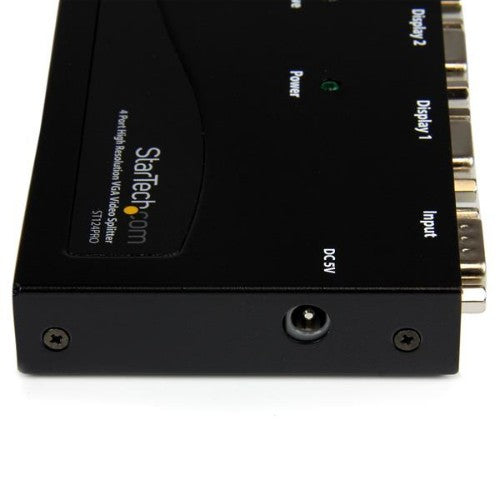

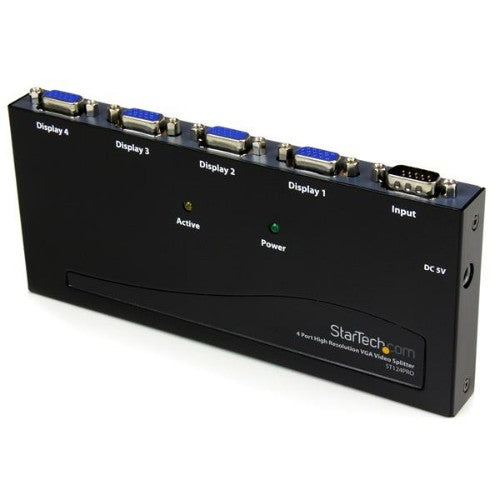

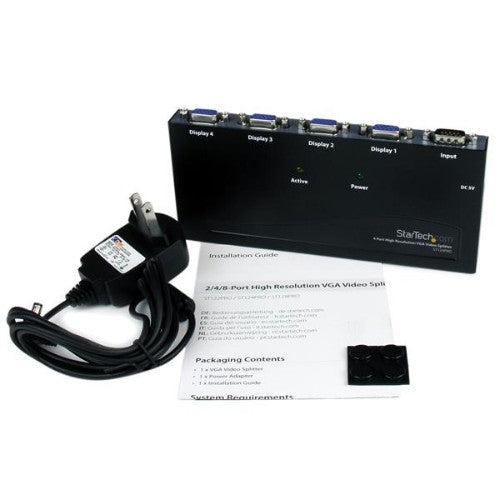

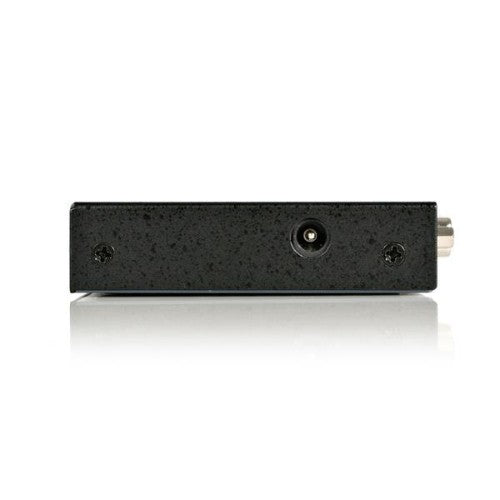

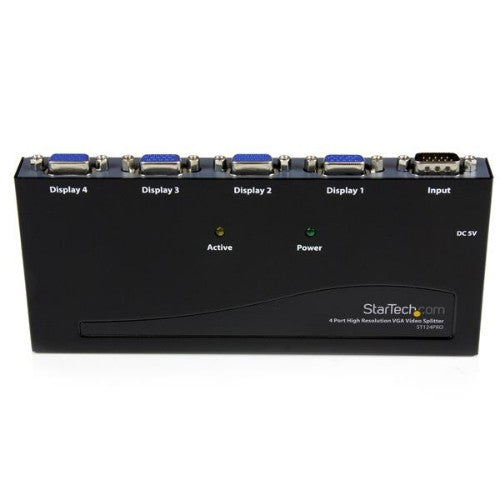

StarTech 4-Port VGA Video Splitter - 300 MHz- VGA Splitter - 4 port - 2048x1536 , TAA @ 80Hz (ST124PRO)
Key Features
- Allows 1 VGA video source to simultaneously display on 4 different monitors
- Supports resolutions up to 2048x1536 @ 80Hz
- High video bandwidth (350 MHz)
- Daisy chainable for almost unlimited expansion
- Maximum VGA cable length of 210ft (65m)
- Uses standard monitor extension cables (See Accessories)
- DDC compatible
Description
Split a single high resolution VGA video signal to 4 monitors or projectors
The ST124PRO 4 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 4 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed. This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Male to Female VGA extension cable required (MXT101HQ)
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
4 |
| Video port type |
VGA |
| Video out |
4x VGA |
| Features |
|---|
| Maximum refresh rate |
80 Hz |
| Maximum resolution |
2048 x 1536 pixels |
| Maximum operating distance |
64 m |
| Product colour |
Black |
| Certification |
CE, FCC, TAA, REACH |
| Bandwidth |
350 MHz |
| Power |
|---|
| Input current |
0.2 A |
| Output current |
0.6 A |
| Power consumption (typical) |
3 W |
| Output voltage |
5 V |
| AC input voltage |
100 - 240 V |
| Weight & dimensions |
|---|
| Weight |
392 g |
| Width |
80 mm |
| Depth |
182 mm |
| Height |
21 mm |
| Package weight |
692 g |
| Package depth |
243 mm |
| Package width |
186 mm |
| Package height |
95 mm |
| Packaging data |
|---|
| Package weight |
692 g |
| Package depth |
243 mm |
| Package width |
186 mm |
| Package height |
95 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Manual |
Yes |
| Video |
|---|
| Maximum refresh rate |
80 Hz |
| Maximum resolution |
2048 x 1536 pixels |
| Bandwidth |
350 MHz |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC, TAA, REACH |
| Technical details |
|---|
| Video out |
4x VGA |
| Package width |
186 mm |
| Package height |
95 mm |
| Maximum operating distance |
64 m |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
512 mm |
| Master (outer) case length |
413 mm |
| Master (outer) case height |
325 mm |
| Products per master (outer) case |
12 pc(s) |
