StarTech 3ft (1m) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable (DPPNLFM3)
Key Features
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- APPLICATIONS: Add extra 3ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- SPECS: 3 foot (91 cm) / Black / DisplayPort 1.2 / DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws) / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Double sided copper foil / Backward compatible w/ DP1.1 / Lifetime Warranty
Description
Allows a DisplayPort connection to be mounted on a secure easily accessible panel.

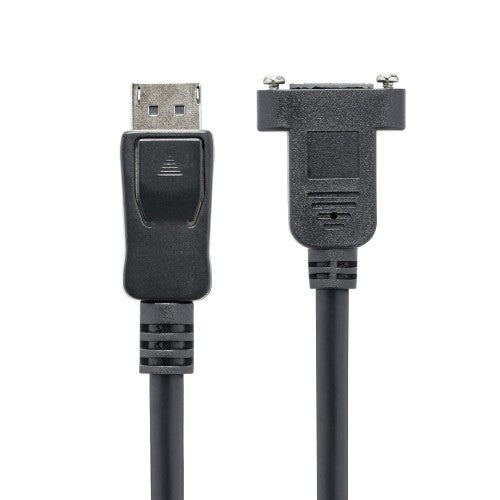

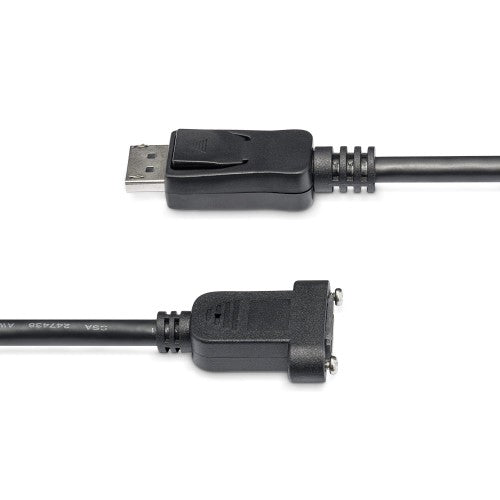

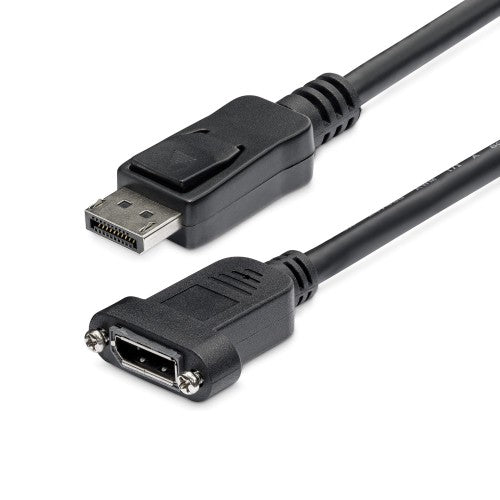

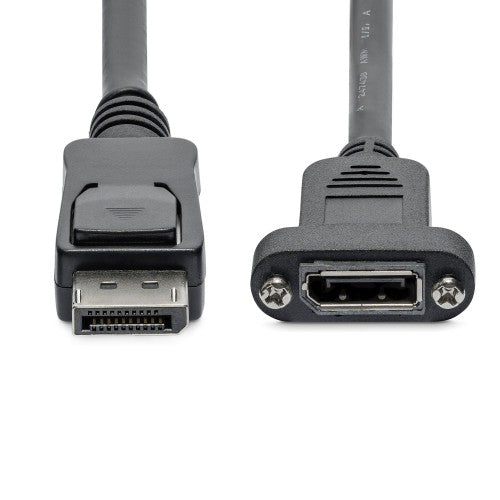

This 3ft panel mount DisplayPort cable features a DisplayPort male connector on one end, and a DisplayPort panel mount (female) molded connector on the other, providing a well-secured, easy to access DisplayPort connection on any machine port or faceplate.
Backed by StarTech.com's Lifetime Warranty
Specifications
| Features |
|---|
| Latching connectors |
Yes |
| Cable rating |
CMG (CM) |
| Number of conductors |
19 |
| Cable length |
0.91 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector contacts plating |
Gold |
| Product colour |
Black |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
28 |
| DisplayPort version |
1.2 |
| Bandwidth |
21600 MB/s |
| Maximum resolution |
3840 x 2400 pixels |
| Maximum refresh rate |
120 Hz |
| Multi-Stream Transport (MST) |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
7.3 mm |
| Weight |
78 g |
| Package width |
198 mm |
| Package depth |
182 mm |
| Package height |
22 mm |
| Package weight |
94 g |
| Packaging data |
|---|
| Cable diameter |
7.3 mm |
| Weight |
78 g |
| Package width |
198 mm |
| Package depth |
182 mm |
| Package height |
22 mm |
| Package weight |
94 g |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
80 pc(s) |
| Master (outer) case width |
325 mm |
| Master (outer) case length |
505 mm |
| Master (outer) case height |
220 mm |
| Harmonized System (HS) code |
84733080 |
