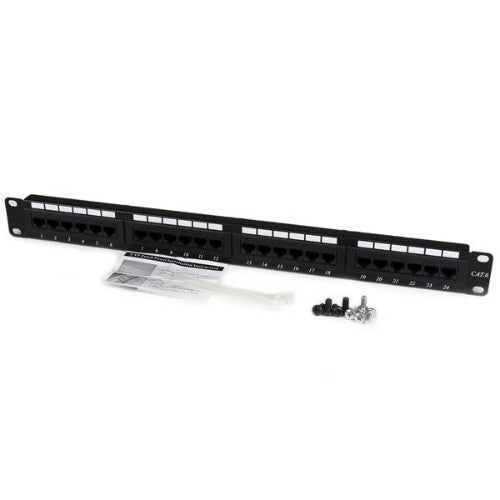

StarTech 24 Port 1U Rackmount Cat 6 110 Patch Panel - 24 port Network Patch Panel - RJ45 Ethernet 110 type Rack Mount Patch Panel 1U (C6PANEL24)
Key Features

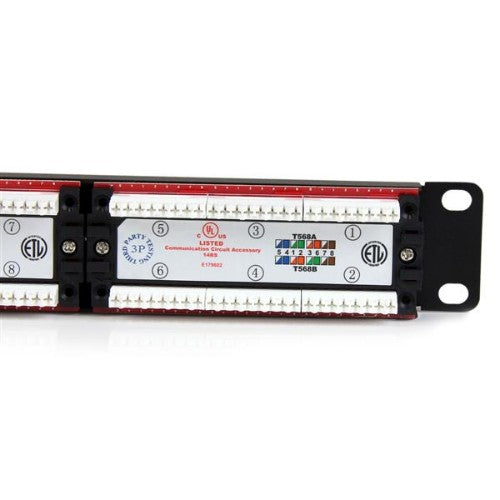

- Color coded for both T568A and T568B installations
- Terminated using 110-type punch tool
- Supports both Cat5e and Cat6 cables
- Writable and erasable marking surfaces for each port
- Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
Description
Organize up to 24 Cat6 patch cables
The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

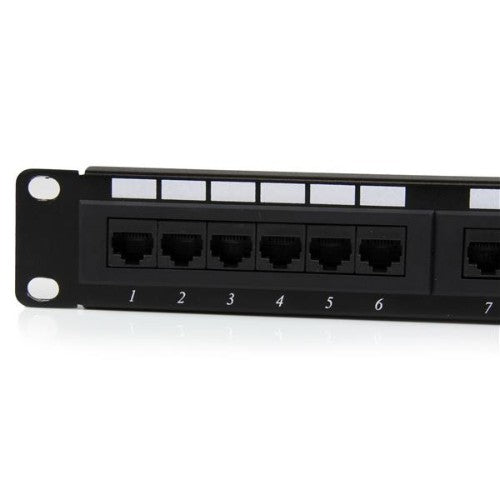

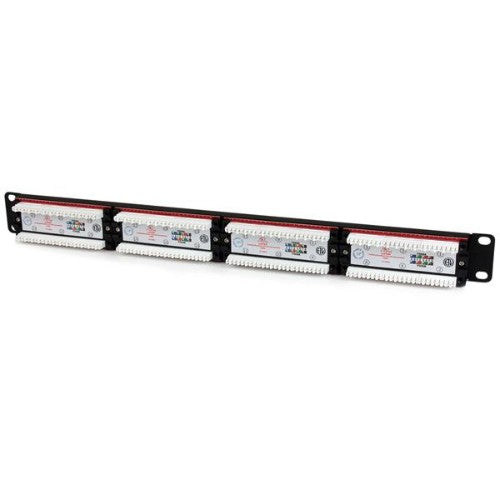

For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.
Specifications
| Network |
|---|
| Ports quantity |
24 |
| Connector(s) |
RJ-45 |
| Design |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Black |
| Certification |
CE, ETl, UL |
| Certificates |
|---|
| Certification |
CE, ETl, UL |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
10 - 65% |
| Weight & dimensions |
|---|
| Width |
483 mm |
| Weight |
581 g |
| Height |
34 mm |
| Depth |
44 mm |
| Package weight |
678 g |
| Package width |
491 mm |
| Package height |
47 mm |
| Packaging data |
|---|
| Package weight |
678 g |
| Package depth |
59 mm |
| Package width |
491 mm |
| Package height |
47 mm |
| Features |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Black |
| Certification |
CE, ETl, UL |
| Technical details |
|---|
| Mounting |
Rack mounting |
| Operating temperature (T-T) |
-10 - 60 °C |
| Package width |
491 mm |
| Package height |
47 mm |
| Harmonized System (HS) code |
85371098 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
516 mm |
| Master (outer) case length |
255 mm |
| Master (outer) case height |
268 mm |
| Harmonized System (HS) code |
85371098 |
