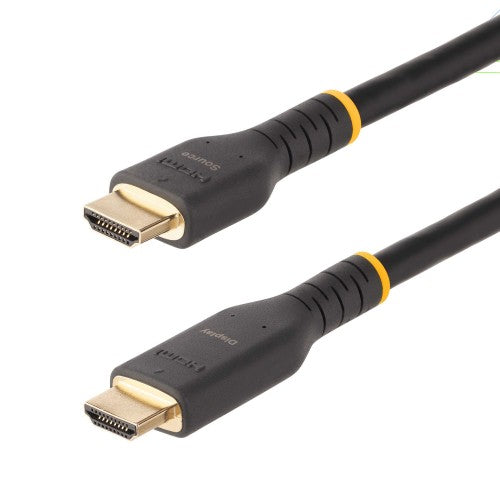

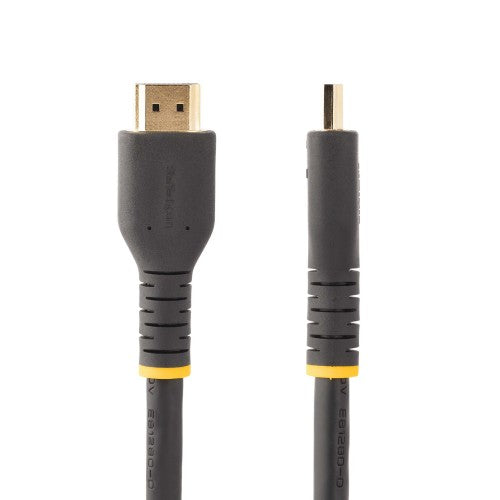

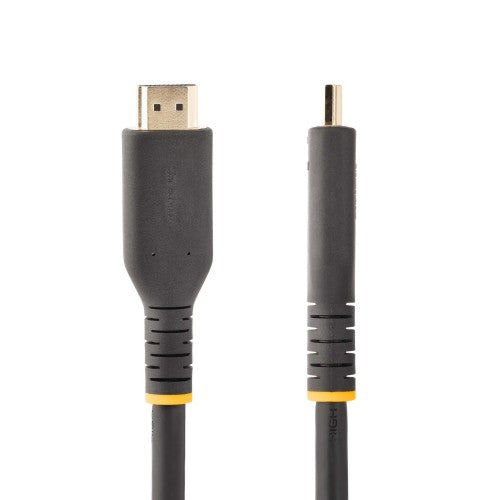

StarTech 23ft Active HDMI Cable w/ Ethernet - HDMI 2.0 4K 60Hz UHD - Rugged HDMI Cord w/ Aramid Fiber - Durable High Speed HDMI Cable - Heavy-Duty HDMI 2.0 Cable (RH2A-7M-HDMI-CABLE)
Key Features
- HIGH PERFORMANCE: 23ft (7m) HDMI 2.0 Cable with Ethernet, 4K 60Hz (up to 4096x2160p), 18Gbps bandwidth, HDR10, and 32 channel multi-stream audio with 1536Hz sampling (5.1/7.1/DD+/Dolby TrueHD/Atmos); Unidirectional cable with source/display labels
- ACTIVE CIRCUITRY: Active bus-powered amplifier boosts video signals over longer distances to extend HDMI signal up to 23ft (7m); Supports additional color spaces, such as Adobe RGB and YCC601 Color
- DURABLE CABLE: 100% copper cable (28AWG) with long lasting TPE jacket and strain reliefs absorbs stress of frequent bends, protecting the core of the rugged UHD HDMI cord; TPE is non-toxic, halogen free and RoHS certified for environmental sustainability
- QUALITY CONSTRUCTION: Gold-plated connectors, and superior EMI shielding with Al-Mylar foil and copper braid improve signal integrity and reliability, deliver 4K 60Hz over long distances; Ideal for conference room, offices, or classrooms
- SPECS: 23 feet (7 meters); Color: Black; Version: HDMI 2.0; Connectors: Male to Male; Wire Gauge: 28 AWG; OD: 7.5mm; Cable Jacket: TPE; Shield: Al-Mylar Foil with Copper Braid; Features: ARC, Deep Color, HDCP 2.2, CEC, BT.2020 colorimetry
Description
Connect 4K HDMI-enabled devices up to 7m away with no signal loss
This Active High Speed HDMI™ Cable with Ethernet establishes a connection between HDMI-enabled devices over long distances, ideal for in-home and office cable runs.
High-Speed HDMI Cable
This high-speed HDMI cable supports resolutions of up to 4K at 60Hz (4096 x 2160p), 18Gbps bandwidth, High Dynamic Range (HDR10), Audio Return Channel (ARC), and Dolby Vision, for high contrast ratios, and vivid color.
Reliable Connections Over Long Distances
The cable features built-in amplifier circuitry, which actively boosts the HDMI signal, with no external power required. It is the perfect solution for longer transmissions without any signal loss. It features source and display labels on the connectors to ensure the display and source are properly connected.

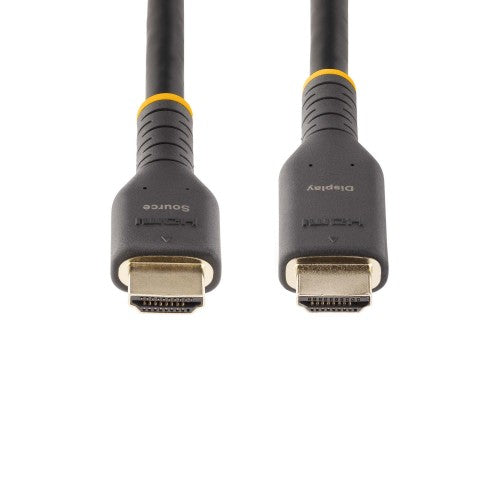

Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the Source and Display labels on the HDMI connectors in order to ensure that the device and the HDMI source are connected properly.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| Dolby technologies |
Dolby Atmos, Dolby Digital Plus, Dolby TrueHD |
| Cable shielding |
Aluminum mylar foil |
| HDMI Ethernet channel |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Cable length |
7 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Product colour |
Black |
| Cable material |
Copper |
| AWG wire size |
28 |
| HDMI version |
2.0 |
| HDCP |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| Cable jacket material |
Thermoplastic elastomer (TPE) |
| HDCP version |
2.2 |
| Supported digital audio channels (uncompressed) |
32 |
| Cable type |
Round cable |
| Quantity per pack |
1 pc(s) |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Weight |
500 g |
| Cable diameter |
7.5 mm |
| Package width |
248 mm |
| Package depth |
201 mm |
| Package height |
45 mm |
| Package weight |
500 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
248 mm |
| Package depth |
201 mm |
| Package height |
45 mm |
| Package weight |
500 g |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
430 mm |
| Master (outer) case length |
380 mm |
| Master (outer) case height |
290 mm |
