StarTech 2 Port VGA USB KVM Switch - VGA KVM Switch - 1920x1440 - USB 2.0 - KVM Video Switch , TAA (SV231USB)
Key Features
- Control 2 computers from one USB keyboard/mouse/monitor
- Share 3 different USB peripherals using the integrated hub
- High 1920x1440 resolution capability

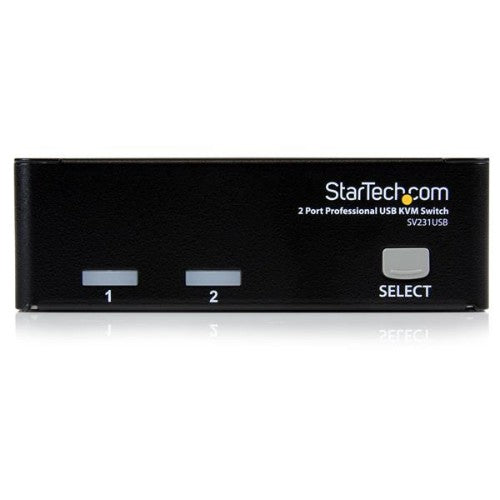

- Front panel push buttons for easy computer selection
- OS independent - No software or drivers required
- Supports keyboard and mouse plug and play
- Selectable auto scan time interval
- Supports DDC2B VGA monitors
- USB self-power operation
Description
Control 2 USB VGA based computers with this complete KVM kit including cables

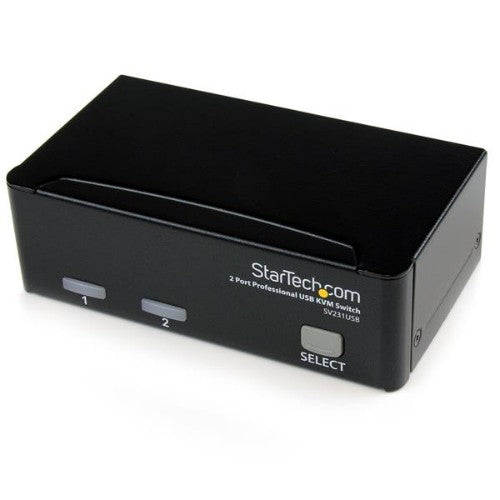

The SV231USB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of two Mac or PC computers from a single monitor/display and USB peripheral set (keyboard, mouse).

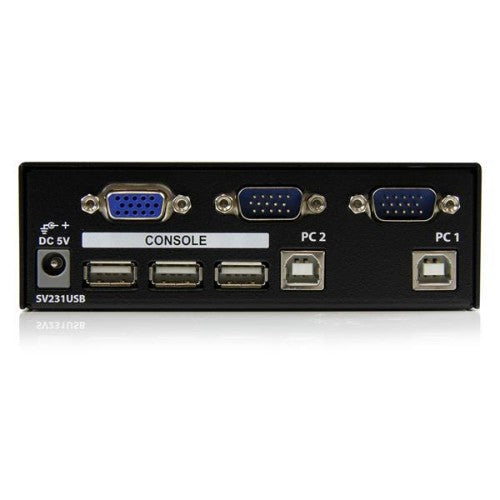

The 2 Port KVM switch includes 2 USB KVM cables, providing a complete out-of-the-box KVM solution saving you time and money. An integrated 3 port USB hub allows you to share connected USB peripherals between connected computers as though they were connected directly. A compact form factor design and rear-port connections to master and slave computers minimizes disruption to your workspace.
A cross-platform solution, this OS independent KVM switch supports high resolution applications up to 1920x1440, and provides a smooth operating experience when controlling mixed (Windows/Mac/Linux) environments.
Specifications
| Ports & interfaces |
|---|
| Number of computers controlled |
8 |
| Video port type |
VGA |
| Audio connections |
No |
| USB 2.0 ports quantity |
5 |
| VGA (D-Sub) ports quantity |
4 |
| DC-in jack |
Yes |
| Console port |
USB |
| Cable length |
1.8 m |
| Performance |
|---|
| Maximum digital resolution |
1920 x 1440 pixels |
| Cable length |
1.8 m |
| Design |
|---|
| Product colour |
Black |
| Cable length |
1.8 m |
| Rack mounting |
No |
| Certification |
FCC |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Input voltage |
110-240 V |
| Video |
|---|
| Maximum digital resolution |
1920 x 1440 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
70 mm |
| Depth |
124 mm |
| Height |
40 mm |
| Weight |
420 g |
| Package width |
238 mm |
| Package depth |
187 mm |
| Package height |
97 mm |
| Package weight |
1.3 kg |
| Packaging data |
|---|
| Package length |
9.41 mm |
| Package width |
238 mm |
| Package depth |
187 mm |
| Package height |
97 mm |
| Package weight |
1.3 kg |
| Packaging content |
|---|
| Cables included |
USB, VGA |
| Manual |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
FCC |
| Other features |
|---|
| Connectivity technology |
Wired |
| Power requirements |
5V DC, 2A |
| Ports quantity |
2 |
| Dimensions (WxDxH) |
70 x 124 x 40 mm |
| I/O ports |
3 - USB A
2 - USB B
1 - HD DB15
2 - HD DB15 |
| Package length |
9.41 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case width |
400 mm |
| Master (outer) case length |
322 mm |
| Master (outer) case height |
285 mm |
| Products per master (outer) case |
6 pc(s) |
