StarTech 2 Port Dual Monitor HDMI KVM Switch - 4K 60Hz Ultra HD HDR - Desktop 4K HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID, Audio - Hotkey Switching - TAA
Key Features
- DUAL 4K 60Hz UHD: 2 Port HDMI Dual Screen KVM switch supports up to 4K at 60Hz on two monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
- FAST SWITCHING: Includes EDID and HDCP signal emulation so monitors stay synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow while switching between up to 2 computers
- TECH SPECS: 2-Port Dual Screen HDMI 2.0 / 3840 x 2160 / HDCP 2.2 / HDR10 Support / 2 Port USB 3.0 Hub (5Gbps)/ 4x USB HID / Hotkey, Push Buttons / Stereo Analog + 7.1 Digital Audio / EDID & HDCP Emulation / OS Independent
- USER-FRIENDLY: KVM switch with compact & durable steel housing featuring easily accessible buttons & front-mounted integrated USB switch (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
- STARTECH.COM ADVANTAGE: IT professionals’ choice for over 30 years; This KVM (Keyboard, Video/Monitor, Mouse) Switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description
KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives two large monitors at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.
With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

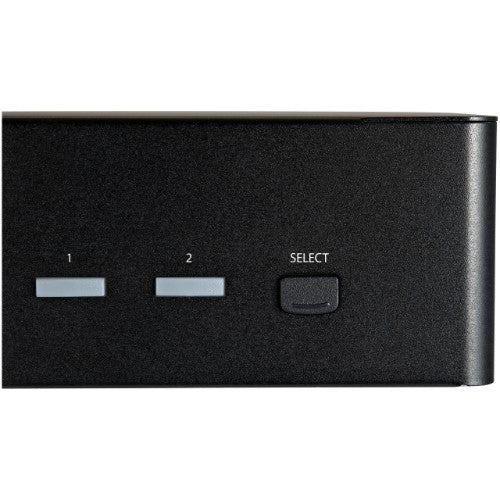

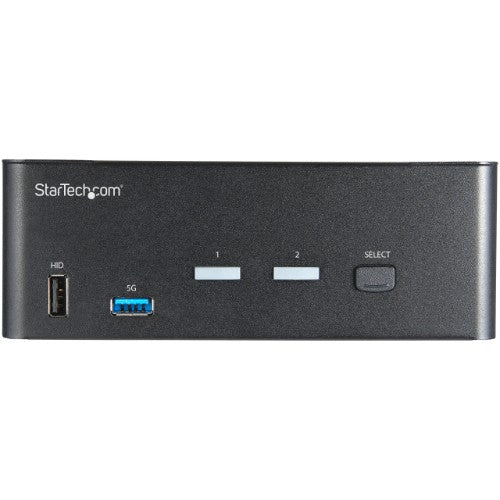

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.
This 2-port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
4 |
| Console ports |
3.5mm headphone, HDMI, USB A |
| USB connector type |
Mini-USB B, USB Type-A, USB Type-B |
| HDMI version |
2.0 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| HDMI ports quantity |
6 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| HDCP |
Yes |
| Performance |
|---|
| Daisy chain |
No |
| Chipset |
Genesys Logic - GL3523 |
| HDCP |
Yes |
| Data transfer rate (max) |
5 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Scan interval |
3,8,15,30 s |
| Number of users |
1 user(s) |
| Audio channels |
7.1 |
| Design |
|---|
| Mean time between failures (MTBF) |
156000 h |
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, FCC, RoHS |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
1 A |
| Output current |
3 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, JP, UK, US |
| Output voltage |
12 V |
| Power consumption (typical) |
36 W |
| External power adapter |
Yes |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Technical details |
|---|
| USB hub |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
100 mm |
| Depth |
160 mm |
| Height |
58 mm |
| Weight |
779 g |
| Package width |
240 mm |
| Package depth |
189 mm |
| Package height |
96 mm |
| Package weight |
147 g |
| Packaging data |
|---|
| Package width |
240 mm |
| Package depth |
189 mm |
| Package height |
96 mm |
| Package weight |
147 g |
| Packaging content |
|---|
| Rubber feet |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Other features |
|---|
| IP control |
No |
| Audio support |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
402 mm |
| Master (outer) case length |
320 mm |
| Master (outer) case height |
290 mm |
| Products per master (outer) case |
6 pc(s) |
| Harmonized System (HS) code |
85176200 |
