StarTech 1U 4-Post Adjustable Server Rack Mount Shelf - 330lbs(150 kg) - 19.5 to 38in Adjustable Mounting Depth Universal Tray for 19" AV, Data & Network Equipment Rack - 27.5in Deep (ADJSHELFHD)
Key Features
- UNIVERSAL 19'' FIT: This server rack mount shelf is designed to fit any 19in 4-post server rack and has a fixed surface depth of 27.56in, and an adjustable mounting depth range of 19.5-38in for your data, networking or other small-form tools / equipment
- COMPACT DESIGN: The adjustable rack shelf features a very compact form factor, making it ideal for non-rackmount equipment, tools and peripherals in your home, studio or office space
- HEAVY-DUTY & DURABLE DESIGN: Constructed with SPCC commercial cold-rolled steel, the sturdy IT-grade cabinet shelf ensures long term durability and supports a total weight load of 330 lb / 150 kg
- VERSATILE FUNCTIONALITY: With a surface depth of 27.56in and adjustable mounting depth range of 19.5-38in, this shelf can work with any 19 inch cabinet or equipment rack; It provides additional storage space for your tools or A/V accessories
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this adjustable rack shelf is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Add a high capacity, adjustable depth fixed shelf into almost any 4-Post server rack or cabinet

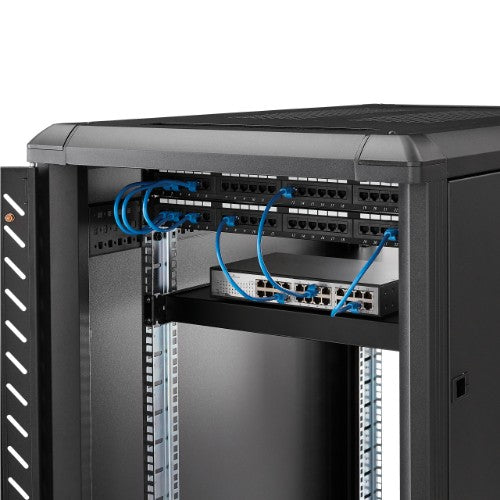

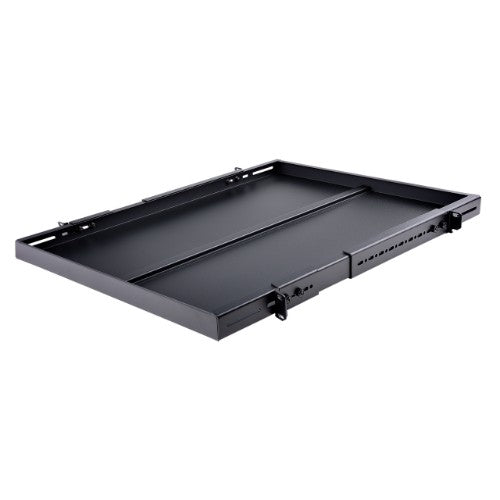

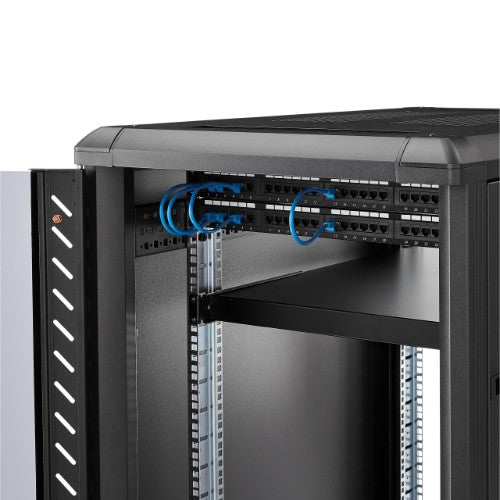

The ADJSHELFHD 1U 4-post Adjustable Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 4-post 19-inch server rack or cabinet.
This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack. Constructed using 1.0mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
The ADJSHELFHD is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Features |
|---|
| Type |
Adjustable shelf |
| Rack capacity |
1U |
| Maximum weight capacity |
150 kg |
| Product colour |
Black |
| Compliance industry standards |
EIA RS310-D |
| Harmonized System (HS) code |
85389099 |
| Housing material |
Steel |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Package width |
764 mm |
| Package depth |
538 mm |
| Package height |
113 mm |
| Package weight |
6.8 kg |
| Material thickness |
1 mm |
| Width |
483 mm |
| Weight |
6.2 kg |
| Mounting depth (min) |
49.5 cm |
| Mounting depth (max) |
97.4 cm |
| Height |
44 mm |
| Depth |
700 mm |
| Packaging data |
|---|
| Package width |
764 mm |
| Package depth |
538 mm |
| Package height |
113 mm |
| Package weight |
6.8 kg |

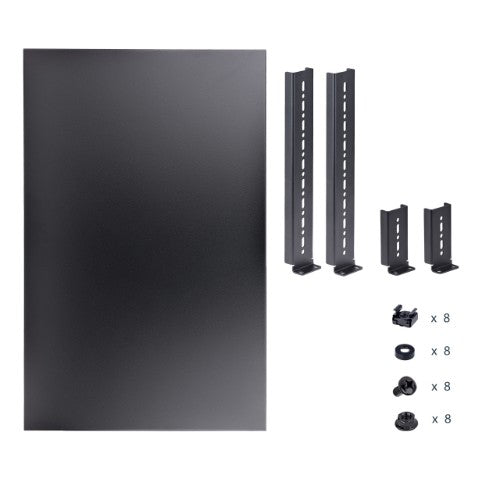

| Packaging content |
|---|
| Screws included |
Yes |
| Mounting kit |
Yes |
| Number of screws |
16 |
| Quick installation guide |
Yes |
| Washers included |
Yes |
| Number of washers included |
8 |
| Number of cage nuts |
8 |
| Cage nuts included |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
85389099 |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
784 mm |
| Master (outer) case length |
555 mm |
| Master (outer) case height |
578 mm |
| Products per master (outer) case |
5 pc(s) |
| Harmonized System (HS) code |
85389099 |
