75", IPS, 3840 x 2160, 550 cd/m², 1.073 (10bit), 8000:1, 72% of NTSC
Key Features
- Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
- Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.
Description
Built to perform, designed to lastThe versatile solution for professional display applications, the Sharp MultiSync® M2 Series With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.073 billion colours |
| Display diagonal |
189.2 cm (74.5") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
550 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display diagonal (metric) |
189.3 cm |
| Vertical scan range |
23 - 76 Hz |
| Touchscreen |
No |
| Panel type |
IPS |
| Native aspect ratio |
16:9 |
| LED backlighting type |
Direct-LED |
| Horizontal scan range |
15 - 135 kHz |
| Display technology |
LED |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |

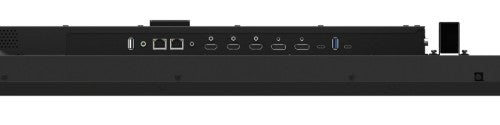

| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| USB port |
Yes |
| Ethernet LAN data rates |
100 Mbit/s |
| HDMI version |
2.0 |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi |
No |
| DisplayPorts quantity |
2 |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| DisplayPort version |
1.4 |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
60 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Placement supported |
Indoor |

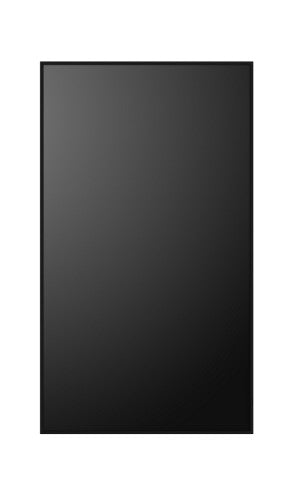

| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
600 x 400 mm |
| Bezel width (top) |
1.43 cm |
| Bezel width (side) |
1.43 cm |
| Bezel width (bottom) |
1.48 cm |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Ambient light sensor |
Yes |
| Wi-Fi |
No |
| Power |
|---|
| Power consumption (typical) |
140 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
145 kWh |
| Energy consumption (HDR) per 1000 hours |
132 kWh |
| Weight & dimensions |
|---|
| Display width |
1682.3 mm |
| Display depth |
83.2 mm |
| Display height |
961.1 mm |
| Display weight |
38 kg |
| Packaging data |
|---|
| Package width |
1830 mm |
| Package depth |
1070 mm |
| Package height |
225 mm |
| Package weight |
51 kg |
| Remote control included |
Yes |
| Cables included |
AC, HDMI |
| Batteries included |
Yes |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, HDMI |
| Batteries included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-C |
| Power supply type |
Internal |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| DisplayPort version |
1.4 |
| Ambient light sensor |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100 Mbit/s |
| Wi-Fi |
No |
| Sensors |
|---|
| Ambient light sensor |
Yes |
| Other features |
|---|
| USB connector type |
USB Type-C |
| Power supply type |
Internal |
| Wi-Fi |
No |
| Panel type |
IPS |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| DisplayPort version |
1.4 |
| Display technology |
LED |
| Bezel width (top) |
1.43 cm |
| Bezel width (side) |
1.43 cm |
| Bezel width (bottom) |
1.48 cm |
| Energy efficiency scale |
A to G |
