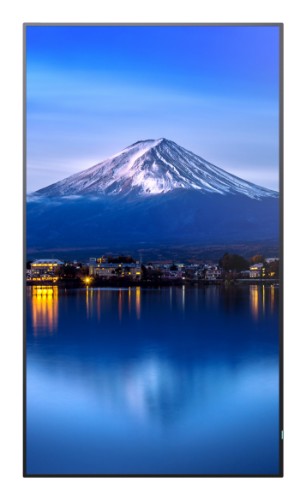

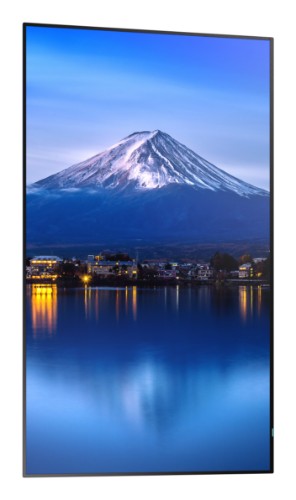

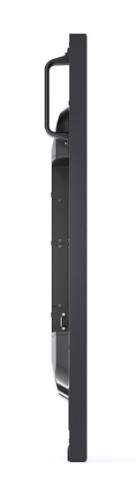

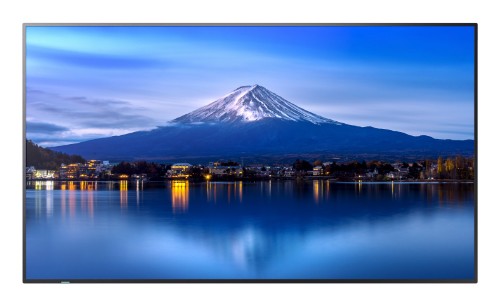

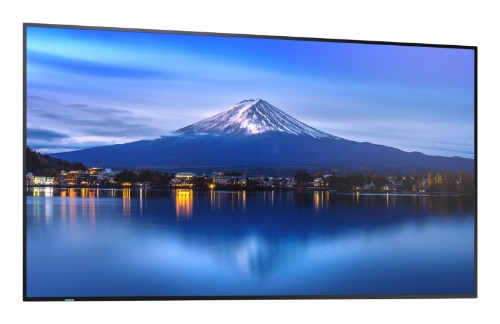

Sharp MultiSync P436 Digital signage flat panel 108 cm (42.5") LCD 700 cd/m² 4K Ultra HD Black 24/7

42.5", IPS, 3840 x 2160, Direct LED, 10bit, 700 cd/m², 1.073 (10bit), 965 x 557.2 x 66.5 mm

Key Features

• Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
• Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
• Security assured – 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
• Mission-critical performance – with 700 cd/m² brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
• Trusted integration – full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.

Description

Precision performance for critical applications

When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.

Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.

Specifications

Display
LED backlight	Yes
Display number of colours	1.073 billion colours
Display diagonal	108 cm (42.5")
Display resolution	3840 x 2160 pixels
Display brightness	700 cd/m²
HD type	4K Ultra HD
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.245 x 0.245 mm
Active display area (W x H)	941.2 x 529.4 mm
Display diagonal (metric)	108 cm
Vertical scan range	23 - 76 Hz
Touchscreen	No
Panel type	IPS
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Horizontal scan range	15 - 135 kHz
Display technology	LCD
High Dynamic Range (HDR) supported	Yes
Native refresh rate	60 Hz
Haze rate	25%
RGB colour space	DCI-P3
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
Remote (IR) input	1
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
Ethernet LAN data rates	100 Mbit/s
DVI port	No
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	4
RS-232C	Yes
DisplayPorts quantity	2
DisplayPorts out	1
DisplayPorts in	1
DisplayPort version	1.2
HDMI input ports quantity	2
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	300 x 300 mm
Bezel width (top)	9.9 mm
Bezel width (side)	9.9 mm
Bezel width (bottom)	1.39 cm
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Wall mountable	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X, IP2X
Picture-in-Picture	Yes
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (typical)	80 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	67 kWh
Energy consumption (HDR) per 1000 hours	65 kWh
Weight & dimensions
Display width	965 mm
Display depth	66.5 mm
Display height	557.2 mm
Display weight	13.5 kg
Packaging data
Package width	1070 mm
Package depth	161 mm
Package height	675 mm
Package weight	18 kg
Remote control included	Yes
Cables included	AC
Batteries included	Yes
Packaging content
Remote control included	Yes
Cables included	AC
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Panel type	IPS
LED backlighting type	Direct-LED
DisplayPorts out	1
DisplayPorts in	1
DisplayPort version	1.2
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Wi-Fi	No
Features
Base material	Metal
Wall mountable	Yes
Other features
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Wi-Fi	No
Panel type	IPS
DisplayPorts out	1
DisplayPorts in	1
DisplayPort version	1.2
Display technology	LCD
Bezel width (top)	9.9 mm
Bezel width (side)	9.9 mm
Bezel width (bottom)	1.39 cm
Energy efficiency scale	A to G
