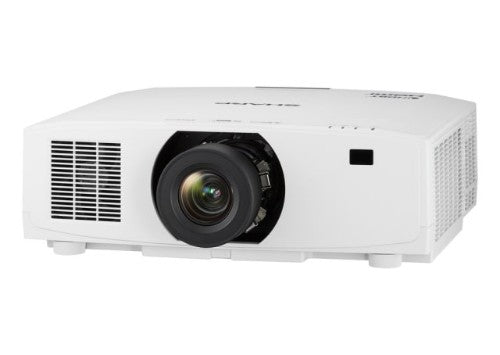

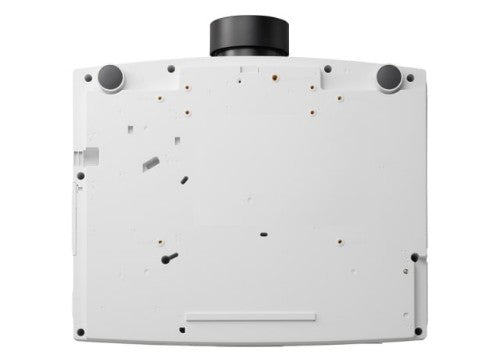

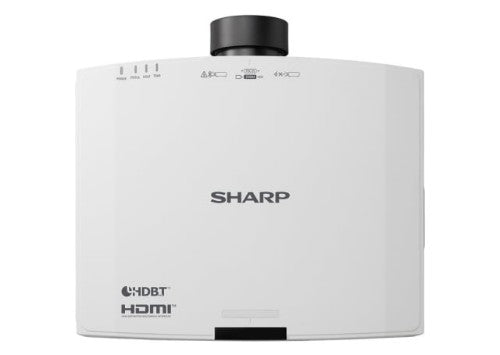

Professional Value LCD Laser Installation 7300lm Projector
Key Features
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
- Get Great Performance – while not compromising on quality and ease of use.
- Low Noise Level – with 31dB, the silent technology will not disturb your meeting.
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, tiling and camera based blending.
Description
Cost-effective LCD-based laser projector with interchangeable lenses3LCD technology generates brilliantly vivid colour, which, at 7300 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.
The V731U offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same lenses as the A/PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the V731U offers outstanding value for higher education, corporate, leisure and hospitality sectors.
Specifications
| Projector |
|---|
| Projector brightness |
7300 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Screen size compatibility |
1016 - 12700 mm (40 - 500") |
| Native aspect ratio |
16:10 |
| Supported aspect ratios |
16:10 |
| Projection distance |
0.7 - 50.9 m |
| Contrast ratio (typical) |
3000000:1 |
| Vertical scan range |
50 - 120 Hz |
| Horizontal scan range |
24 - 153 kHz |
| Keystone correction, vertical |
30° |
| Keystone correction, horizontal |
30° |
| Smart projector |
Yes |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Focus |
Motorized |
| Horizontal lens shift range |
0 - 20% |
| Vertical lens shift range |
0 - 50% |
| Zoom type |
Auto/Manual |
| Video |
|---|
| Full HD |
Yes |
| 3D |
Yes |
| Video colour modes |
DICOM simulation mode |
| Supported video modes |
480p, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions |
1280 x 768, 1920 x 1200 (WUXGA), 3840 x 2160 |

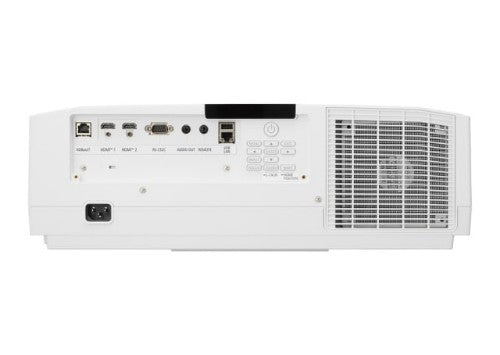

| Ports & interfaces |
|---|
| HDBaseT port |
Yes |
| HDMI ports quantity |
2 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| Serial interface type |
RS-232 |
| DC-in jack |
Yes |
| USB 2.0 Type-A ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
|---|
| HDCP |
Yes |
| Password protection |
Yes |
| Air filter |
Yes |
| Noise level |
40 dB |
| Noise level (economic mode) |
31 dB |
| Sleep timer |
Yes |
| Test patterns |
Yes |
| Standby timer |
Yes |
| Design |
|---|
| Product type |
Standard throw projector |
| Housing material |
Plastic |
| Product colour |
White |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Power source |
AC |
| Power consumption (typical) |
434 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
403 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Width |
499 mm |
| Depth |
407 mm |
| Height |
164 mm |
| Weight |
11.2 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Remote control type |
IR |
| Mounting brackets included |
Yes |
| Manual |
Yes |
| Cables included |
Power |
| Technical details |
|---|
| Sustainability certificates |
ErP |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, EAC, RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
