97.5", 3840 x 2160px, IPS Direct-LED, 16:9, 350 cd/m², 60 Hz, 1 x VGA, 3 x HDMI, 1 x 3.5 mm, LAN, 1 x USB 2.0, 1 x USB Type-C, 1 x SPDIF, RS-232C, 100-240 V AC, 50/60 Hz, 65.4 kg
Key Features
- ntegrated multimedia USB player makes digital signage simple
- LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
- Thinner bezel improves display's aesthetics
- 24-Hour On/Off timer maintains power schedules
- Full HD Resolution allows for excellent image quality
- Video signal wake-up function allows for plug and play functionality
- Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
- Built-in, low-profile 5W speakers enhance the experience with superior sound
- USB Type-C port for external power supply 5V/3A
- Supports Video muting in addition to Audio mute and can also be muted individually

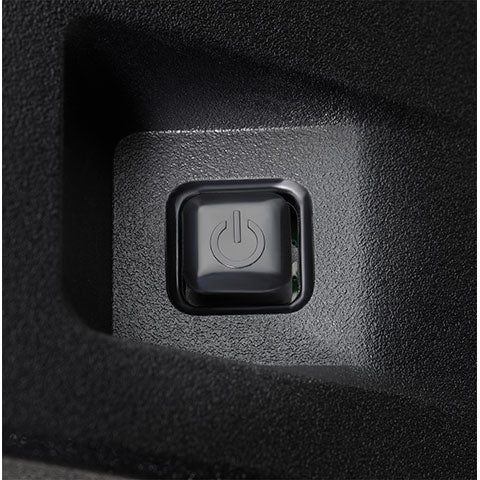

- Joystick key for screen guided operation
- Tilt back and forth installation (-10°～10°) to install it at desired angle

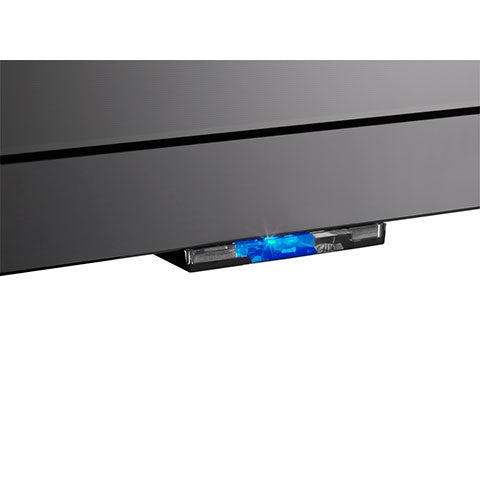

- New temperature and ambient light sensors
Reasons To Buy
Enter the world of professional signage
In a world of digitalisation, signage is following the trend. Digital posters and information boards are now the most common method of information transfer.
Where cost and reliability are key, NEC’s 8th generation of E Series essential displays is the perfect choice. Screen sizes range from 32’’ up to 98’’ to suit any indoor application scenario. With their eye pleasing slim bezel design, your content gets the attention it deserves, whether in small information installations or built-in solutions.
Plug and play
NEC’s E Series is designed for instant usage with an integrated media player for native UHD playback: the content can be run directly from a USB drive. Not only is this process easy to use, it also saves you time and money. Once installed, the embedded autostart time schedule function starts the screen and plays the content automatically at a certain time. For your security, the E Series supports infrared lock to disable the infrared remote control to block unauthorised persons from accessing the display. The screens can then be controlled via safe R232 command.
Sustainable investment
With its low cost of ownership and the Energy Star 8.0 certification, the E Series not only lowers your carbon footprint but also reduces running costs. A wide range of connectivity offers the possibility of multiple input sources and makes the displays a future-proof investment.
Description

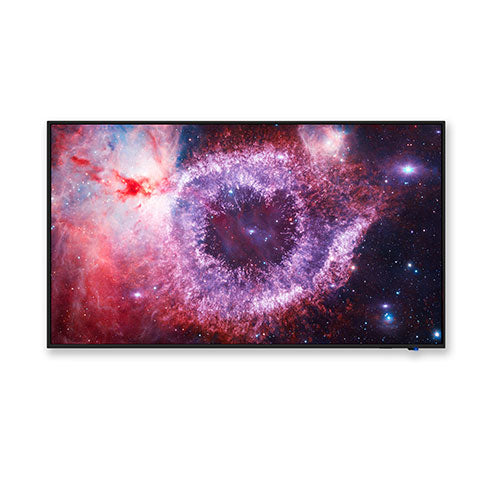

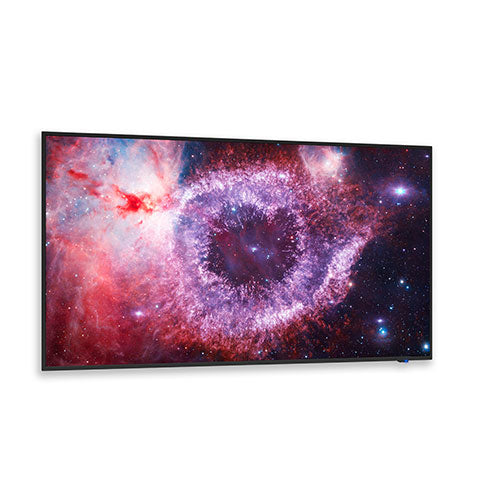

The 98" NEC E328, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's FHD resolution and LED direct backlighting allows for higher visual acuity in a cost conscious chasssis. The E328 has an integrated ATSC/NTSC tuner and dual 5W speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.073 billion colours |
| Display diagonal |
2.48 m (97.5") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
350 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.5622 x 0.5622 mm |
| Active display area (W x H) |
2158.85 x 1214.35 mm |
| Display diagonal (metric) |
247.7 cm |
| Vertical scan range |
24 - 75 Hz |
| Touchscreen |
No |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Panel type |
IPS |
| Native aspect ratio |
16:9 |
| LED backlighting type |
Direct-LED |
| Horizontal scan range |
15 - 136 kHz |
| Display technology |
LCD |
| Colour depth |
10 bit |
| High Dynamic Range (HDR) technology |
Hybrid Log-Gamma (HLG) |
| High Dynamic Range (HDR) supported |
Yes |
| Native refresh rate |
60 Hz |
| Haze rate |
28% |

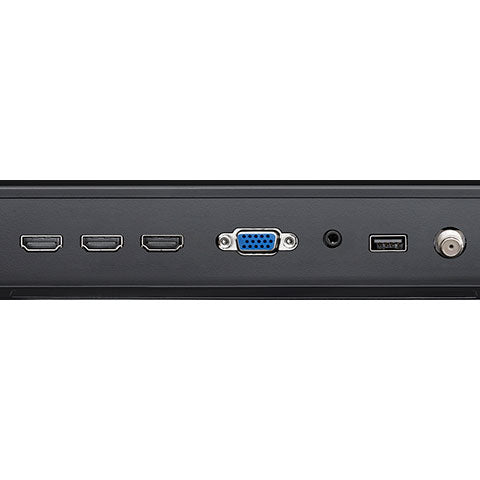

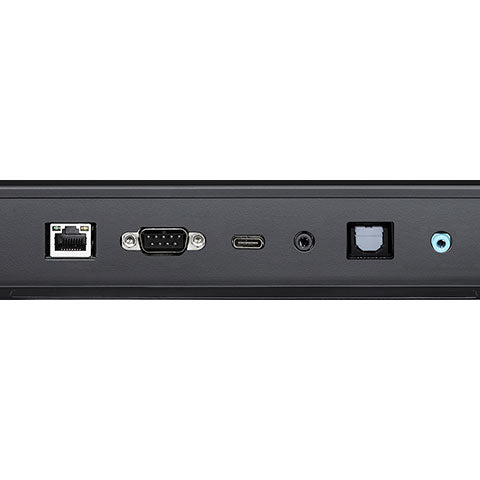

| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| USB port |
Yes |
| DVI port |
No |
| VGA (D-Sub) input ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi |
No |
| USB version |
2.0 |
| USB ports quantity |
2 |
| RS-232C |
Yes |
| DisplayPorts quantity |
0 |
| HDMI input ports quantity |
3 |
| Audio Return Channel (ARC) |
Yes |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
600 x 400 mm |
| Bezel width (top) |
1.59 cm |
| VESA mounting |
Yes |
| Mounting type |
Desk/Wall |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP5X, IP2X |
| HDCP |
Yes |
| Ambient light sensor |
Yes |
| Wi-Fi |
No |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Power |
|---|
| Power consumption (typical) |
200 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
F |
| Energy efficiency class (HDR) |
F |
| Energy consumption (SDR) per 1000 hours |
161 kWh |
| Energy consumption (HDR) per 1000 hours |
160 kWh |
| Computer system |
|---|
| Computer system |
No |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Built-in processor |
No |
| Weight & dimensions |
|---|
| Display width |
2194.7 mm |
| Display depth |
84.3 mm |
| Display height |
1250.2 mm |
| Display weight |
65.4 kg |
| Packaging data |
|---|
| Package width |
2350 mm |
| Package depth |
310 mm |
| Package height |
1400 mm |
| Package weight |
96.5 kg |
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
AC, HDMI |
| Batteries included |
Yes |
| Packaging content |
|---|
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
AC, HDMI |
| Batteries included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Cable lock slot type |
Kensington |
| AV input |
Yes |
| Ambient light sensor |
Yes |
| Digital audio out |
1 |
| USB playback |
Yes |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
Federal Communications Commission (FCC), VCCI, cUL |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Sensors |
|---|
| Ambient light sensor |
Yes |
| Other features |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Wi-Fi |
No |
| Panel type |
IPS |
| Manual |
Yes |
| Display technology |
LCD |
| Cable lock slot type |
Kensington |
| Bezel width (top) |
1.59 cm |
| AV input |
Yes |
| Audio output |
1 |
| Audio input |
1 |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Energy efficiency scale |
A to G |
