55", IPS, FHD (1920 x 1080), Max 500 nit, 1000:1, 178/178, 8 ms, RJ45, HDCP, HDMI, DP, DVI, RS232, 1212.2 x 683.0 x 70.4 mm, 19.5 kg
Description

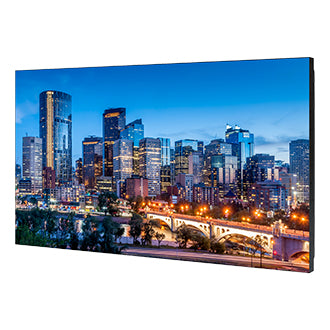

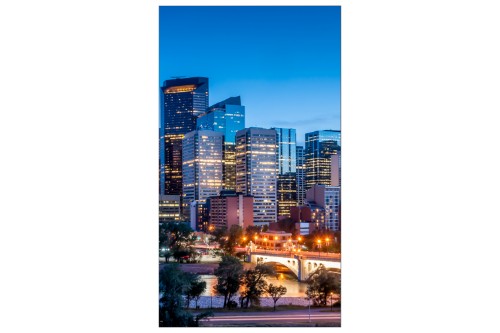

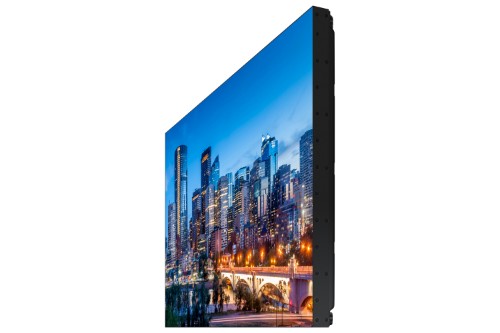

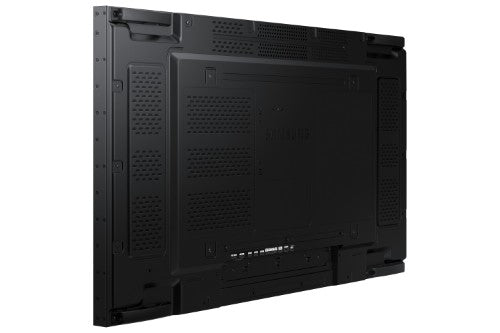

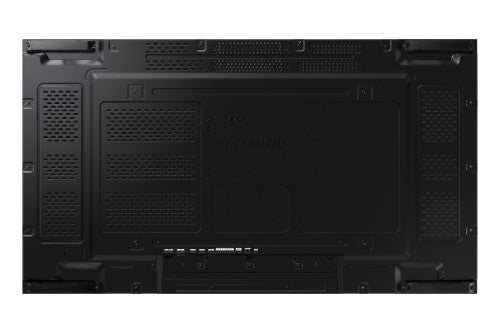

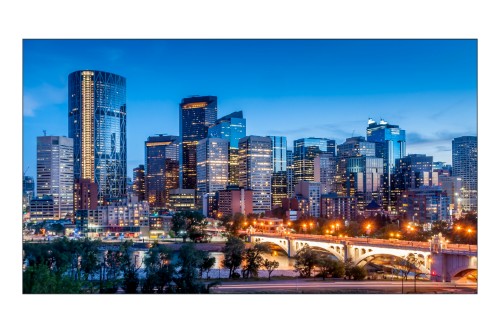

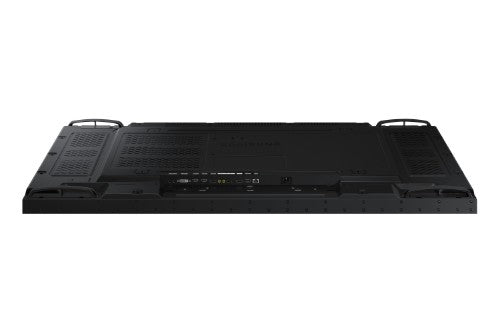

SAMSUNG (VMC-E) VIDEO WALL, 55" LED FHD, 500NITS, DP, HDMI(2), LAN, 1.8MM BEZ, 24H/7D, 3YR
Specifications
| Display |
| Display technology |
LCD |
| Display diagonal |
139.7 cm (55") |
| Display resolution |
1920 x 1080 pixels |
| HD type |
Full HD |
| Panel type |
IPS |
| Aspect ratio |
16:9 |
| Pixel pitch |
0.63 x 0.63 mm |
| Display brightness |
500 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Response time |
0.008 s |
| Colour gamut |
72% |
| Operating hours (hours/days) |
24/7 |
| Haze rate |
28% |
| Display diagonal (metric) |
138 cm |
| Pixel frequency |
78 MHz |
| Contrast ratio (dynamic) |
100000:1 |
| Horizontal scan range |
57.3 - 70 kHz |
| Vertical scan range |
47 - 63 Hz |
| Design |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Wall mountable |
Yes |
| VESA mounting |
Yes |
| Panel mounting interface |
600 x 400 mm |
| Product colour |
Black |

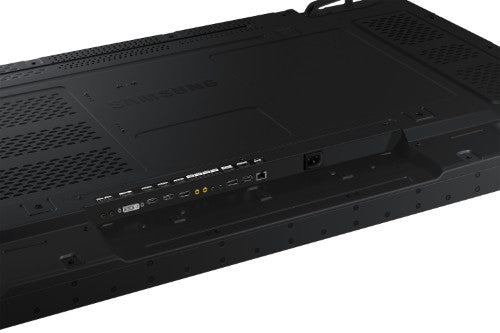

| Ports & interfaces |
| HDMI ports quantity |
2 |
| HDMI input ports quantity |
1 |
| DVI port |
Yes |
| DVI-D ports quantity |
1 |
| DisplayPorts quantity |
1 |
| DisplayPorts in |
1 |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB port |
Yes |
| USB ports quantity |
1 |
| HDCP version |
2.2 |
| HDCP |
Yes |
| RS-232 output ports |
1 |
| RS-232 input ports |
1 |
| IR input ports quantity |
1 |
| Audio output |
Yes |
| Audio input |
Yes |
| HDMI version |
2.0 |
| DisplayPort version |
1.2 |
| Video out |
Yes |
| Power |
| Power consumption (typical) |
220 W |
| Power consumption (sleep) |
0.5 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Sustainability |
| Sustainability compliance |
Yes |
| Weight & dimensions |
| Width |
1212.2 mm |
| Depth |
70.4 mm |
| Height |
683 mm |
| Weight |
19.5 kg |
| Packaging data |
| Package width |
1398 mm |
| Package depth |
257 mm |
| Package height |
844 mm |
| Package weight |
27.1 kg |
