55" VHC-R Video Wall Smart Signage FHD
Key Features
- Razor narrow bezel
- Wide viewing angle
- Image enhancement technology
Description
Seamless video walls with razor-thin bezelsWith an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHC-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into virtually any business environment.
Nearly invisible 0.44 mm bezelAn Exceptionally thin 0.44mm even bezel — a 0.88 mm bezel-to-bezel depth — enables content to be delivered as one seamless image. Additionally, the display helps to eliminate any potential image distortion and provides an immersive viewing experience.
View content from any angleThe display’s wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear and accurate information regardless of video wall layout or location.
Image enhancement technologySamsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, so details are easier to see.

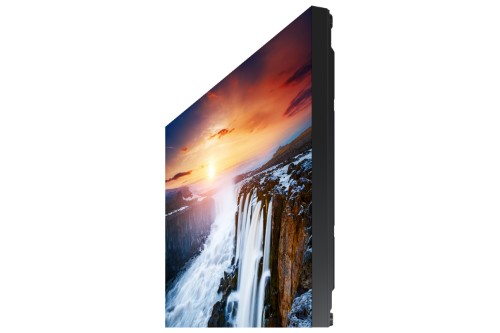

Modern, slim designVHC-R displays feature an elevated design aesthetic with an ultra-slim depth of less than 70 mm. This allows the display to save space and create a clean, modern look for retail or other public spaces.
Vibrant images 24/7Experience brilliant image presentation with an impressive 700 nit brightness allowing businesses to deliver clear information 24/7. The display’s non-glare panels provide better visibility regardless of ambient light, ensuring critical information is always visible.
Comprehensive calibration to fit your needsMulti-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 3x3 using a mobile camera.
Advanced UHD presentationSamsung video walls provide an impressive UHD viewing experience with minimal effort. With daisy chain design utilizing DisplayPort 1.2 and HDMI ports, the VHC-R display can project UHD content across multiple screens up — to 5 x 5 — without requiring an external graphic card or UHD splitters.
Industry standard certifiedThe VHC-R series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5x certification protects the display against dust and other conditions. The display packaging also passed a rigorous 4-step, ISTA-certified test to minimize possible damage during delivery.
Intuitive all-in-one operationsThe UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing just 0.6 kg, even with embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.
Specifications
| Display |
|---|
| Display technology |
LCD |
| Display diagonal |
139.7 cm (55") |
| Display resolution |
1920 x 1080 pixels |
| HD type |
Full HD |
| Panel type |
IPS |
| Aspect ratio |
16:9 |
| Pixel pitch |
0.63 x 0.63 mm |
| Display brightness |
700 cd/m² |
| Contrast ratio (typical) |
1100:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Response time |
0.008 s |
| Colour gamut |
72% |
| Operating hours (hours/days) |
24/7 |
| Haze rate |
28% |
| Display diagonal (metric) |
138 cm |
| Pixel frequency |
78 MHz |
| Contrast ratio (dynamic) |
140000:1 |
| Horizontal scan range |
57.3 - 70 kHz |
| Vertical scan range |
47 - 63 Hz |
| Design |
|---|
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.44 mm |
| Bezel width (side) |
0.44 mm |
| Bezel width (bottom) |
0.44 mm |
| Tiled bezel width |
0.44 mm |
| Wall mountable |
Yes |
| VESA mounting |
Yes |
| Panel mounting interface |
600 x 400 mm |
| Product colour |
Black |

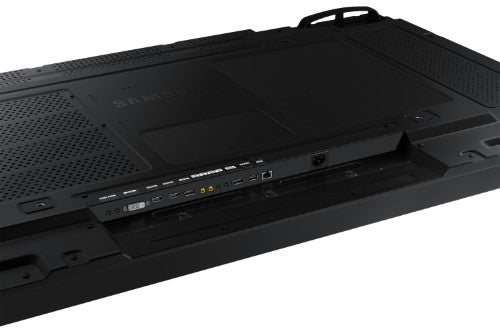

| Ports & interfaces |
|---|
| HDMI ports quantity |
2 |
| HDMI input ports quantity |
2 |
| DVI port |
Yes |
| DVI-D ports quantity |
1 |
| DisplayPorts quantity |
1 |
| DisplayPorts in |
1 |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB port |
Yes |
| USB ports quantity |
1 |
| HDCP version |
2.2 |
| HDCP |
Yes |
| RS-232 output ports |
1 |
| RS-232 input ports |
1 |
| IR input ports quantity |
1 |
| Audio output |
Yes |
| Audio input |
Yes |
| HDMI version |
2.0 |
| DisplayPort version |
1.2 |
| Video out |
Yes |
| Power |
|---|
| Power consumption (typical) |
250 W |
| Energy consumption (SDR) per 1000 hours |
155 kWh |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (sleep) |
0.5 W |
| Technical details |
|---|
| Compliance certificates |
CB, Federal Communications Commission (FCC) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Certification |
FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/N
CB (Europe) : IEC62368-1/EN62368-1 CCC (China) : GB 4943.1-2011 (Singapore ) : PSB+IEC62368-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC62368-1 SIRC (Saudi Arabia ) : SASO+IEC62368-1 BIS (India) : IEC60950-1 / IS13252KC (Kore |
| Weight & dimensions |
|---|
| Width |
1211 mm |
| Depth |
69.9 mm |
| Height |
681.7 mm |
| Weight |
16.8 kg |
| Packaging data |
|---|
| Package width |
1414 mm |
| Package depth |
257 mm |
| Package height |
844 mm |
| Package weight |
25.1 kg |
