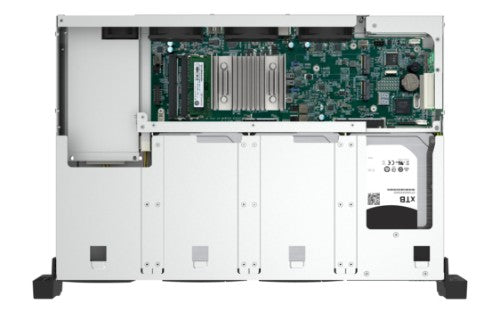

Intel Atom C5125 8-core processor, 2.8GHz, 64-bit x86, 8 GB DDR4, Flash Memory 5GB, Hot-swap, 2.5G/1G/100M, 2U, 250W PSU, 100 - 240V, Black
Description
CPU:Intel ® Atom® C5125 8-core processor, 2.8GHz
CPU Architecture: 64-bit x86
Floating Point Unit:Y
Encryption Engine: (AES-NI)
System Memory:8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory:64 GB ( 2 x 32 GB)
Memory Slot:2 x SODIMM DDR4
Support ECC memory:Y
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory:5GB (Dual boot OS protection)
Drive Bay:8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
Drive Compatibility:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot:2 x M.2 2280 (PCIe Gen 3 x 4)
SSD Cache Acceleration Support:Y
SR-IOV:Y
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a network adapter
10 Gigabit Ethernet Port: Optional via a network adapter
25 Gigabit Ethernet Port:Optional via a network adapter
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame
PCIe Slot 2 x PCIe Gen
Specifications
| Storage |
|---|
| Total installed storage capacity |
0 TB |
| Storage drives installed |
No |
| Installed storage drive type |
No |
| Number of storage drives installed |
0 |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
8 |
| Online RAID migration |
Yes |
| Online RAID expansion |
Yes |
| Disk roaming |
Yes |
| Storage drive capacity |
0 GB |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10, 50, 60, JBOD |
| Hot-swap drive bays |
Yes |
| Supported file systems |
FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4 |
| Supported storage drive interfaces |
Serial ATA III, Serial ATA II |
| Storage drive sizes supported |
2.5,3.5" |
| Number of M.2 (M & B) slots |
2 |
| RAID rebuild |
Yes |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Atom® |
| ECC supported by processor |
Yes |
| Thermal Design Power (TDP) |
50 W |
| Processor threads |
8 |
| Processor cache |
9 MB |
| Processor model |
C5125 |
| Processor frequency |
2.8 GHz |
| Processor cores |
8 |
| Number of processors installed |
1 |
| Memory |
|---|
| Internal memory type |
DDR4 |
| Internal memory |
8 GB |
| Maximum RAM supported |
64 GB |
| Memory slots |
2 |
| Flash memory |
5000 MB |
| Memory form factor |
SO-DIMM |
| Network |
|---|
| Ethernet LAN |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| DHCP server |
Yes |
| Jumbo frames support |
Yes |
| iSCSI support |
Yes |
| Wake-on-LAN ready |
Yes |
| Supported network protocols |
IPv4, IPv6 |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
2 |
| PCI Express x4 (Gen 3.x) slots |
2 |
| Fiber optic connector |
MTP |
| Design |
|---|
| Chassis type |
Rack (2U) |
| Product colour |
Black |
| Cooling type |
Active |
| Number of fans |
3 fan(s) |
| Fan diameter |
6 cm |
| LED indicators |
Yes |
| Performance |
|---|
| Built-in FTP server |
Yes |
| System log |
Yes |
| Share folder |
CIFS/SMB |
| S.M.A.R.T. support |
Yes |
| Hot spare |
Yes |
| Browser supported |
Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version) |
| Type |
NAS |
| Device class |
Small & Medium Business |
| Backup function |
Yes |
| Backup features |
USB drive, iSCSI LUN |
| Buzzer |
Yes |
| Operating system installed |
QuTS hero |
| Operating system version |
h5.0.1 |
| Security algorithms |
AES, FIPS 140, HTTPS, SSH |
| Reset button |
Yes |
| On/off switch |
Yes |
| Management protocols |
SNMP V2, V3 |
| Access Control List (ACL) |
Yes |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating systems supported |
CentOS 7.0, Ubuntu 14.04, Yes |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported |
IBM AIX 7.1, Solaris 10 |
| Snapshot |
Yes |
| USB copy function |
Yes |
| Software |
|---|
| Operating system installed |
QuTS hero |
| Operating system version |
h5.0.1 |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8 |
| Linux operating systems supported |
CentOS 7.0, Ubuntu 14.04, Yes |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported |
IBM AIX 7.1, Solaris 10 |
| Power |
|---|
| Power supply location |
Built-in |
| Power supply unit (PSU) capacity |
250 W |
| Number of power supply units |
1 |
| Power consumption (typical) |
79.113 W |
| Power consumption (sleep) |
49.799 W |
| AC input voltage |
100 - 240 V |
| Fan voltage |
12 V |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
297.4 mm |
| Height |
88.6 mm |
| Weight |
7.61 kg |
| Package width |
530 mm |
| Package depth |
210 mm |
| Package height |
592 mm |
| Package weight |
10.9 kg |
| Technical details |
|---|
| Warranty period |
3 year(s) |
| Packaging content |
|---|
| Number of screws |
56 |
| Package type |
Box |
| Quick installation guide |
Yes |
| Cables included |
AC, LAN (RJ-45) |
| Power cables quantity |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Other features |
|---|
| Fibre Channel |
Yes |
| Warranty period |
3 year(s) |
