ARM 4C A55 2.0 GHz, Mali-G52, 4 GB RAM, 4 GB Flash, 2 x 2.5 Gigabit LAN, 2x USB 3.2 Gen 1, 43.3 x 430 x 292.3 mm
Key Features
- Space-saving: Flexible deployment for installation in small media cabinets or wall-mounted network racks
- Powerful yet energy-efficient: The ARM Cortex-A55 quad-core processor with 4GB RAM uses up to 80% less power than similar x86-based NAS
- AI image recognition with NPU acceleration: The built-in NPU enhances AI-powered face recognition and accelerates subject identification in QNAP’s QuMagie smart album
- Dual 2.5GbE as standard: Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel
- Easy storage expansion via USB: Connect a QNAP short-depth USB JBOD TR-004U to the TS-433eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5)
- Backup and snapshot protection for peace of mind: Centralize all data backups to TS-433eU and regularly create snapshots to safeguard your data against ransomware threats
Description

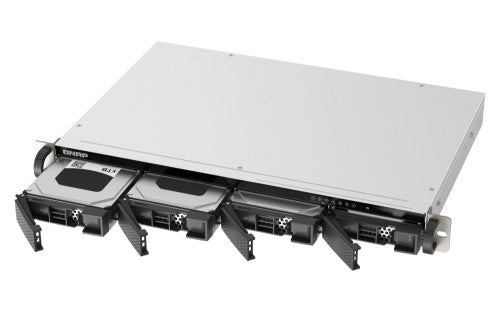

TS-433eUCompact 1U short-depth rackmount 2.5GbE NAS – your affordable edge storage with NPU acceleration
The closer your data storage is, the faster you can access your data or applications! The TS-433eU with its sleek 1U short-depth rackmount design fits perfectly in tight spaces, making it ideal for flexible deployment. Deploy the TS-433eU closer to your operations to effortlessly create edge storage, and enjoy intelligent file management, secure backups, and seamless Docker container applications.
Specifications
| Storage |
|---|
| Total installed storage capacity |
0 TB |
| Storage drives installed |
No |
| Installed storage drive type |
No |
| Number of storage drives installed |
0 |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
4 |
| Storage drive interface |
Serial ATA |
| Storage drive size |
2.5/3.5" |
| RAID support |
No |
| Hot-swap drive bays |
Yes |
| Processor |
|---|
| Processor manufacturer |
ARM |
| Processor architecture |
ARM Cortex-A55 |
| Processor family |
Cortex-A |
| Processor model |
Cortex-A55 |
| Processor frequency |
2 GHz |
| Processor cores |
4 |
| Memory |
|---|
| Internal memory |
4 GB |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000,2500 Mbit/s |
| Wake-on-LAN ready |
Yes |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
|---|
| Chassis type |
Rack (1U) |
| Product colour |
Black |
| Cooling type |
Active |
| Number of fans |
3 fan(s) |
| Fan diameter |
4 cm |
| LED indicators |
HDD, LAN, Status, USB |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Performance |
|---|
| Built-in FTP server |
Yes |
| Share folder |
CIFS/SMB |
| Hot spare |
Yes |
| Browser supported |
Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome |
| Type |
NAS |
| Device class |
Small & Medium Business |
| Buzzer |
Yes |
| Operating system installed |
QNAP Turbo System |
| Operating system version |
4.1 |
| Reset button |
Yes |
| On/off switch |
Yes |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Software |
|---|
| Operating system installed |
QNAP Turbo System |
| Operating system version |
4.1 |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Power |
|---|
| Power supply location |
Built-in |
| Power supply unit (PSU) capacity |
60 W |
| Number of power supply units |
1 |
| Power consumption (typical) |
23.74 W |
| Power consumption (sleep) |
9.32 W |
| AC input voltage |
100-240 V |
| Fan voltage |
12 V |
| Weight & dimensions |
|---|
| Width |
430 mm |
| Depth |
292.3 mm |
| Height |
43.3 mm |
| Weight |
4.01 kg |
| Package width |
415 mm |
| Package depth |
179 mm |
| Package height |
542 mm |
| Package weight |
5.9 kg |
| Technical details |
|---|
| Warranty period |
3 year(s) |
| Packaging content |
|---|
| Package type |
Box |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Other features |
|---|
| Warranty period |
3 year(s) |
