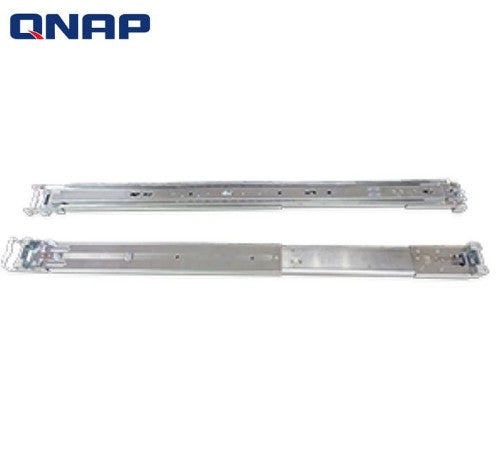

Rail Kit for TS-x79/TS-ECx80U rackmount models
Description
The TS-x80 rack mount models comply with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for these models, please make sure the server racks conform to the following criteria:
1. Rack size
A. Mounting post width: ≥ 451mm.
B . Panel width: ≥ 500mm.
C. Mounting post depth: 650mm~850mm.
2. The optional rack kits for the TS-x80 rack mount models are only compatible with square-hole server racks.
Specifications
| Features |
|---|
| Product colour |
Stainless steel |
| Compatibility |
Qnap SS-EC2479U-SAS-RP/SS-EC1879U-SAS-RP/SS-EC1279U-SAS-RP, TS-879U-RP/TS-1279U-RP/TS-1679U-RP/TS-EC879U-RP/TS-EC1279U-RP/TS-EC1679U-RP,
TS-EC1279U-SAS-RP/TS-EC1679U-SAS-RP/SS-EC2479U-SAS-RP/SS-EC1879U-SAS-RP/SS-EC1279U-SAS-RP,
TS-EC1680U-RP/TS-EC1280U-RP/TS-EC880U-RP,
REXP-1200U-RP/REXP-1600U-RP,
VS-12140/12148/12156/12164U-RP Pro,
VS-12140/1148/12156/12164U-RP Pro+,
VS-8124/8132/8140/8148U-RP Pro,
VS-8124/8132/8140/8148U-RP Pro+ |
| Harmonized System (HS) code |
85389099 |
| Weight & dimensions |
|---|
| Width |
710 mm |
| Weight |
2.63 kg |
| Mounting depth (min) |
57.9 cm |
| Mounting depth (max) |
87.3 cm |
| Height |
68 mm |
| Depth |
99 mm |
| Technical details |
|---|
| Harmonized System (HS) code |
85389099 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85389099 |
