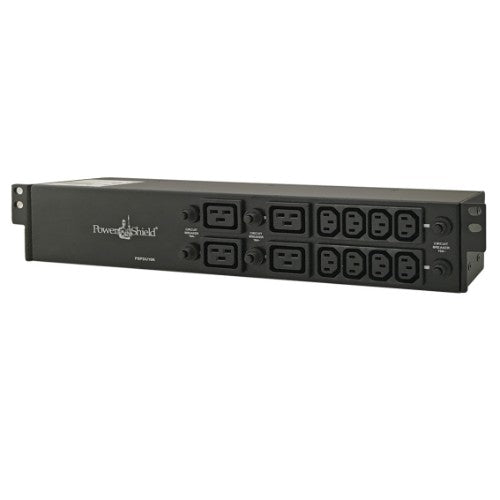

PowerShield PSPDU10K power distribution unit (PDU) 12 AC outlet(s) Black

8x 10A IEC 320 C13, 4x 16A IEC 320 C19, 6 - 10 KVA

Key Features

• Mechanical safety microswitch with static bypass activation is standard. This eliminates the possibility of incorrect switching sequences and hence possible damage to the UPS and injury to personnel
• Optional PDU available to connect 10A/15A devices through IEC distribution outlet sockets

Description

PowerShield offers a versatile range of MBS solutions (Maintenance Bypass Switch) and PDUs (Power Distribution Units) for all types of UPS applications.
A correctly designed MBS enables a technician to perform maintenance on a UPS at any time, without interruption to normal business operations with no need to shut down your critical electrical load. While in the “Bypass” position the UPS will still receive power from the mains (or alternative power source) so that the technician can perform maintenance procedures, without interruption to the load.
In the “Bypass and Isolate” position there is no voltage present at the input and output terminals of the UPS. Hence in this position, a trained technician can safely work on components within the UPS. Also, if need be the UPS can be safely removed and replaced, without danger to the technician and without interruption to the load.

Specifications

Design
Type	Single-phase
Mounting	Horizontal/Vertical
Product colour	Black
Ports & interfaces
Master AC outlets quantity	12
AC outlets quantity	12 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power
Nominal input voltage	240 V
Maximum current	16 A
Block 1 output current	10 A
Block 2 output current	16 A
Weight & dimensions
Width	433 mm
Depth	70 mm
Height	88 mm
