3KVA, 16A IEC 320 C20, 15Amp Australian Plug to IEC 320 C19, 6x 10A IEC 320 C13, 16A IEC 320 C19, 80 x 440 x 50 mm
Key Features
- No downtime. Routine maintenance can be performed at any hour
- A PDU (Power Distribution Unit) with 7 outlets for distribution to your load

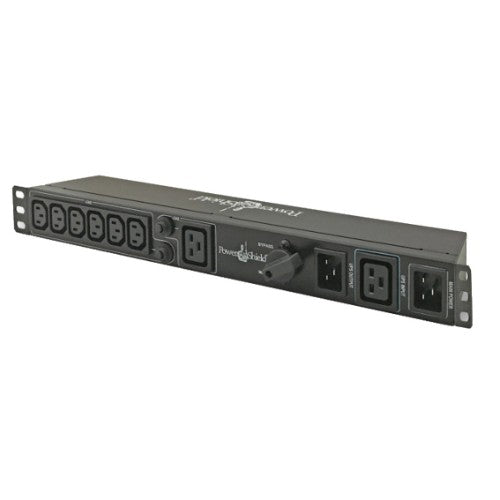

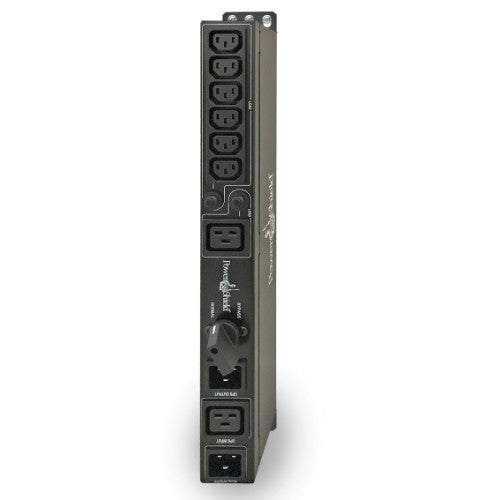

- Rackmount – MBS can be mounted both horizontally or vertically (ORU) into a rack
- Wallmount option, vertically or horizontally
- UPS Mountable. Designed to attach to PowerShield Centurion RT and Commander RT ranges
- Suitable for all UPS topologies including offline, line interactive and true online double conversion
Description
PowerShield offers a versatile range of MBS solutions (Maintenance Bypass Switch) and PDUs (Power Distribution Units) for all types of UPS applications.
A correctly designed MBS enables a technician to perform maintenance on a UPS at any time, without interruption to normal business operations with no need to shut down your critical electrical load. While in the “Bypass” position the UPS will still receive power from the mains (or alternative power source) so that the technician can perform maintenance procedures, without interruption to the load.
In the “Bypass and Isolate” position there is no voltage present at the input and output terminals of the UPS. Hence in this position, a trained technician can safely work on components within the UPS. Also, if need be the UPS can be safely removed and replaced, without danger to the technician and without interruption to the load.
Specifications
| Design |
|---|
| Type |
Single-phase |
| Mounting |
Horizontal/Vertical |
| Product colour |
Black |
| Rack capacity |
0U |
| Ports & interfaces |
|---|
| AC outlets quantity |
7 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler, C20 coupler |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
80 mm |
| Height |
50 mm |
