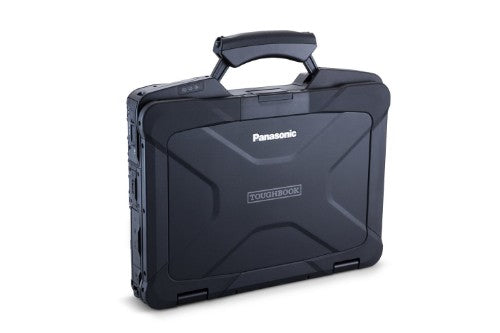

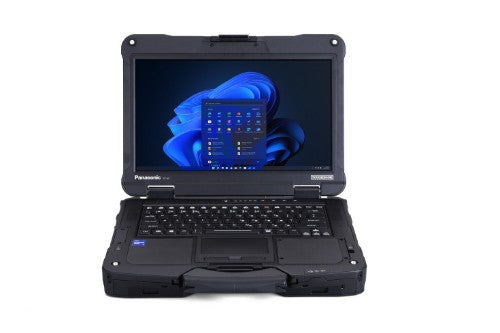

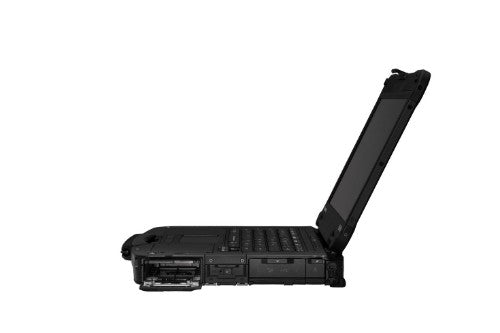

Panasonic Toughbook 40 Intel® Core™ i5 i5-1145G7 Laptop 35.6 cm (14") Touchscreen Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro Black

Intel Core i5-1145G7 (8MB Cache), 16GB DDR4-SDRAM, 512GB SSD, 35.6 cm (14") Full HD 1920 x 1080 Touch, Intel Iris Xe Graphics, LAN, WLAN, 4G, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core i5-1145G7 (8MB Cache)
• 35.6 cm (14") Full HD 1920 x 1080 Touch
• 16GB DDR4-SDRAM & 512GB SSD

Description

14" FULLY RUGGED WINDOWS 11 PRO NOTEBOOK WITH FULL-HD TOUCH SCREEN
TOUGHBOOK 40 with Windows 11 Pro, magnesium chassis and flexible configurations is the most versatile 14" fully rugged TOUGHBOOK ever built, but doesn't compromise on durability with improved strength and IP66 resistant design.In terms of flexibility, the TOUGHBOOK 40 is equally outstanding. It offers a huge array of flexible configuration options, making it easier for customers to have exactly the device they want.

Adaptable to any mission, flexible in any conditions

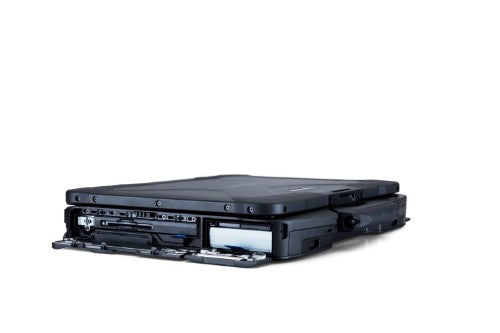

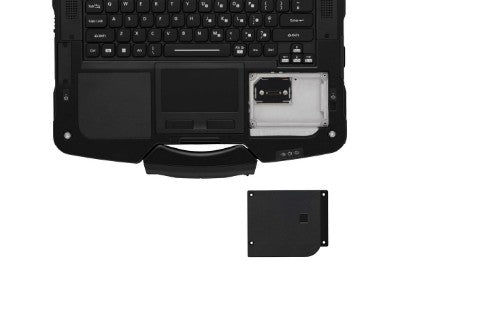

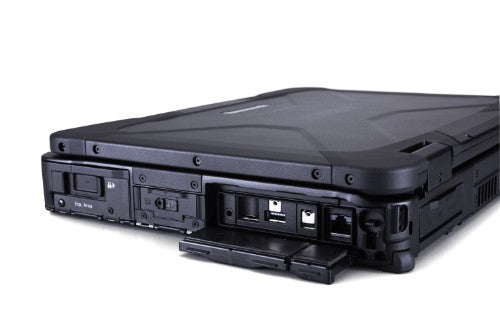

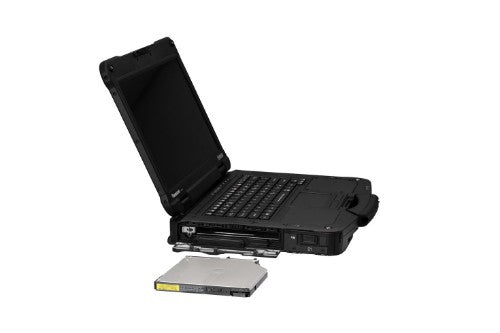

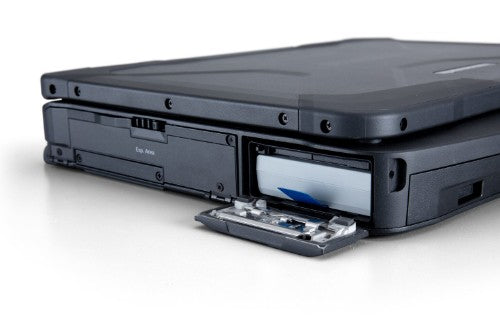

As well as a user replaceable battery, RAM and SSD, the TOUGHBOOK 40 notebook has four other expansion areas e.g. for smart card and fingerprint readers, including a multi-user authentication for when the notebook is being used by a team.

Designed for discretion
On the road or in the field, the TOUGHBOOK 40 notebook is geared up for vehicle diagnostics and maintenance as well as defence training. It also has a new all-black exterior, and a one touch Concealed Mode function, making it the perfect partner for operations that require some stealth.

No more device failures, downtime or interrupted work
Engineered from the ground up to be used on-the-go and in harsh environments, this device is tested to military standard (MILSTD810H) and is the first TOUGHBOOK notebook that contains a complete IP66 rating. It’s also built to withstand drops of up to 180cm as well as knocks, vibrations and extreme temperatures for ultimate reliability in any environment.

Get optimised connectivity thanks to 4G LTE with the option of 5G - both offering eSIM support. And with a quad path-through antenna connector, and up to 36-hours of battery life (thanks to optional battery hot-swap), your team will always be able communicate, access critical info and report in real time when on the move.

Specifications

Design
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Display
HD type	Full HD
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
LED backlight	Yes
Display brightness	1200 cd/m²
Touchscreen type	Capacitive
Native aspect ratio	16:9
Processor
Processor generation	11th gen Intel® Core™ i5
Configurable TDP-down	12 W
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.1 GHz
Processor family	Intel® Core™ i5
Processor model	i5-1145G7
Processor boost frequency	4.4 GHz
Processor cores	4
Processor cache	8 MB
Processor manufacturer	Intel
Configurable TDP-up frequency	2.6 GHz
Configurable TDP-up	28 W
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Storage
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
Audio
Number of built-in speakers	2
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Optical drive
Optical drive type	No
Network
Mobile network connection	Yes
Mobile network generation	4G
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Bluetooth version	5.1
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Combo headphone/mic port	Yes
Docking connector	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
DC-in jack	Yes
Keyboard
Numeric keypad	No
Keyboard backlit	Yes
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Processor special features
CPU configuration (max)	1
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	10.8 V
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Smart card reader	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	-29 - 63 °C
Storage temperature (T-T)	-51 - 71 °C
Operating relative humidity (H-H)	0 - 95%
Drop proof	120 cm
Weight & dimensions
Weight	3.35 kg
Width	345 mm
Depth	301 mm
Height	54.4 mm
Other features
WLAN controller model	Intel Wi-Fi 6 AX201
On-board graphics card	Yes
