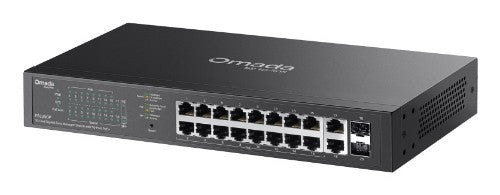

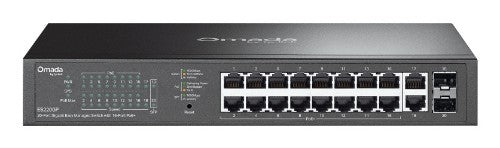

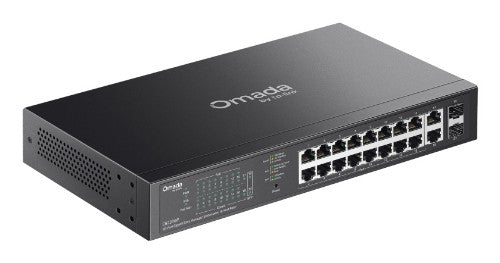

Managed, 18x RJ-45, 2x SFP, Port mirroring, QoS, Flow control, PoE+
Key Features
- 18× 10/100/1000Mbps RJ45 ports (16× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP Slots
- 150W PoE Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- Up to 820ft PoE, Remote Camera Reboot, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack mounting design
Description
Omada Central Essentials — A Free and Easy Cloud-Based Network ManagementOmada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
SurveillanceWorks with IP Cameras
Wi-Fi CoverageWorks with Access Points
Wired ConnectionsWorks with Non-PoE Devices such as PCs and Printers
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
18 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
18 |
| Power connector |
AC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Number of VLANs |
32 |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
40 Gbit/s |
| Store-and-forward |
Yes |
| Number of queues |
8 |
| Jumbo frames support |
Yes |
| Packet buffer memory |
4 MB |
| Forwarding rate |
29.76 Mpps |
| Number of VLANs |
32 |
| Security |
|---|
| IGMP snooping |
Yes |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| Performance |
|---|
| Noise level |
20.1 dB |
| Mean time between failures (MTBF) |
320156 h |
| Fanless |
Yes |
| Packet buffer memory |
4 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power consumption (max) |
182.43 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
2.5 A |
| Power source |
AC |
| Power connector |
AC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
150 W |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Virtual LAN features |
|---|
| Number of VLANs |
32 |
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions |
|---|
| Width |
294 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
AC |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging data |
|---|
| User guide |
Yes |
| Cables included |
AC |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
