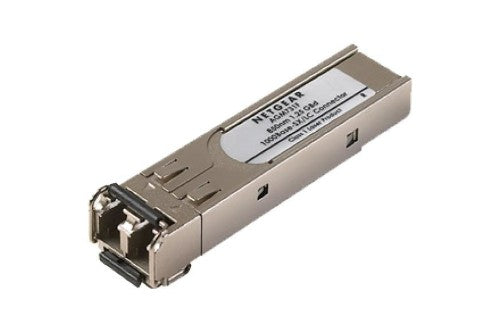

NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches

NETGEAR

NETGEAR SFP 1G Ethernet Fiber Module for Managed Switches

Read reviews
SKU: AGM731F
Your price $180.40
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

LC, SFP, 1000Base-SX, 1000m, 850nm, 500 mW, RoHS

Key Features

  • Gigabit Ethernet “short-reach” fiber connectivity
  • LC duplex connector
  • Fits into SFP interfaces of all Fully Managed Switches
  • Fits into SFP interfaces of all Smart Switches
  • Fits into SFP interfaces of JGS524F
  • Drives Gigabit Ethernet up to 1,000 m distances with 50/125µm laser-optimized OM4 multimode fiber cables
  • Drives Gigabit Ethernet up to 550 m distances with 50/125µm laser-optimized OM3 multimode fiber cables
  • Drives Gigabit Ethernet up to 275 m distances with 62.5/125ìm OM1 multimode fiber cables

Description

The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.

Specifications

Network
SFP transceiver type Fiber optic
Interface type SFP
Maximum data transfer rate 1250 Mbit/s
Fiber optic connector LC
Networking standards IEEE 802.3z
Performance
Product colour Silver
Housing material Metal
Mean time between failures (MTBF) 87658 h
SFP transceiver type Fiber optic
Ethernet LAN Yes
Interface type SFP
Maximum data transfer rate 1250 Mbit/s
Fiber optic connector LC
Networking standards IEEE 802.3z
Maximum transfer distance 1000 m
Wavelength 850 nm
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Duplex system Full
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SX
Fiber ethernet cabling technology 1000BASE
Harmonized System (HS) code 85369010
Features
Product colour Silver
Housing material Metal
Safety UL 1950, CSA 22.2 No.60 950
Mean time between failures (MTBF) 87658 h
Power
Input voltage 3.3 V
Power consumption (typical) 0.5 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Technical details
Ethernet LAN Yes
Harmonized System (HS) code 85369010
Compliance certificates CE, RoHS
Weight & dimensions
Width 57 mm
Depth 13.8 mm
Height 8.5 mm
Certificates
Safety UL 1950, CSA 22.2 No.60 950
Logistics data
Harmonized System (HS) code 85369010
Quantity per pack 1 pc(s)
Brand
NETGEAR
SKU
AGM731F
