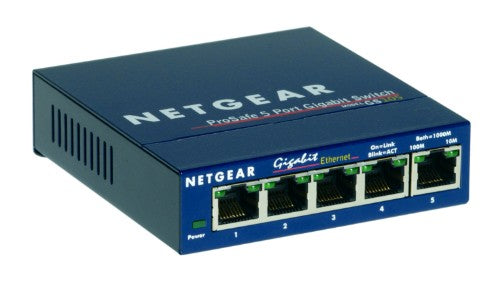

ProSafe Gigabit Ethernet Desktop Switch - 5 RJ-45 ports
Description
Gigabit Power, 10/100 Simplicity-Connects up to 10x faster than Fast Ethernet for maximum performance.
-Up to 60% lower power consumption1.
-Auto power-down mode saves energy when port is unused.
-Simple to combine Fast Ethernet and Gigabit devices in your network.
-Plug-and-play installation delivers ease of use.
Specifications
| Performance |
|---|
| Stackable |
No |
| Mean time between failures (MTBF) |
1000000 h |
| Power |
|---|
| Power connector |
DC-in jack |
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Power connector |
DC-in jack |
| Data transmission |
|---|
| Jumbo frames support |
Yes |
| Security |
|---|
| MAC address filtering |
Yes |
| Protocols |
|---|
| Supported network protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab |
| Design |
|---|
| Stackable |
No |
| Safety |
C-Tick, CE Mark |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
32 - 122 °F |
| Weight & dimensions |
|---|
| Weight |
30 g |
| Other features |
|---|
| Dimensions (WxDxH) |
94 x 104 x 28 mm |
| Connectivity technology |
Wired |
| Bandwidth |
10 Gbit/s |
| Non-operating relative humidity (non-condensing) |
10 - 95% |
| Electromagnetic emissions |
FCC Class B, VCCI Class B |
