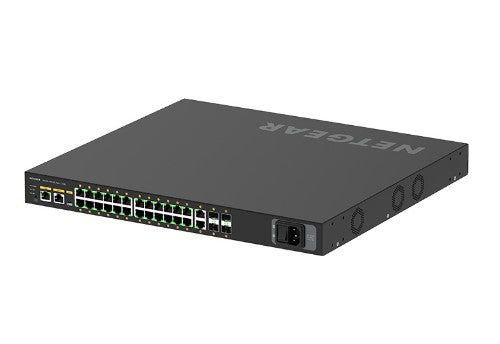

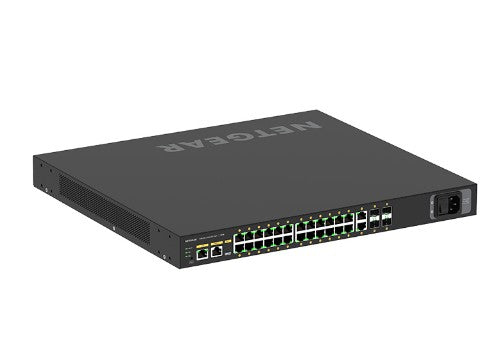

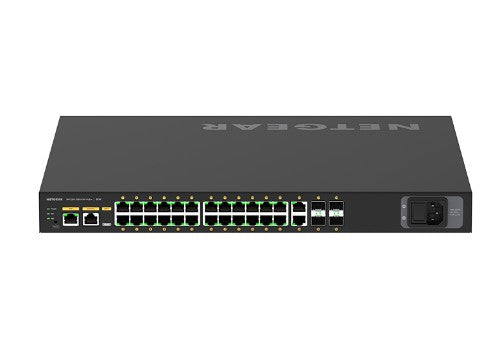

NETGEAR M4250-26G4XF-PoE+ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

1U, PoE+, 10/100/1000BASE-T, SFP+, USB, RJ45, 440 x 400 x 43.2 mm, 5.45 kg

Key Features

• Primary Port Speed: 1 Gigabit
• Number of Ports: 30 (24x 1G PoE+, 2x 1G, 4x SFP+)
• PoE Ports / Budget: 24 PoE+ (30W/port), 480W Budget

Description

Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back

Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables

Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes

Adjustable fan functionality
Quiet mode with 42dB@25ºC, or fanless mode when PoE load and temperature allow

Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.

Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.

Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations

Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.

Specifications

Network
IPv6 FIB entries	16
IPv4 FIB entries	256
Number of VLANs	4
VLAN support	Yes
IPv6 routes	128
IPv4 routes	512
Virtual LAN features
Number of VLANs	4
VLAN support	Yes
Data transmission
Number of VLANs	4
Jumbo frames	12000
MAC address table	16 entries
Switching capacity	132 Gbit/s
Throughput	98.21 Mpps
Latency (1 Gbps)	2.29 µs
Latency (10 Gbps)	0.83 µs
Jumbo frames support	Yes
Packet buffer memory	16 MB
IPv4 & IPv6 features
IPv6 FIB entries	16
IPv4 FIB entries	256
Performance
Packet buffer memory	16 MB
Noise level	42 dB
Built-in processor	Yes
Processor model	ARM Cortex-A57
Harmonized System (HS) code	85176990
Fanless	Yes
Management features
Switch layer	L2/L3
Switch type	Managed
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	1
Protocols
IPv6 FIB entries	16
IPv4 FIB entries	256
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
Temperature sensor	Yes
Technical details
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
Power source	PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	45 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Weight & dimensions
Width	440 mm
Depth	43.2 mm
Height	400 mm
Weight	5.45 kg
Packaging data
Rack mount kit	Yes
Cables included	AC, LAN (RJ-45), USB Type-C
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
Cables included	AC, LAN (RJ-45), USB Type-C
