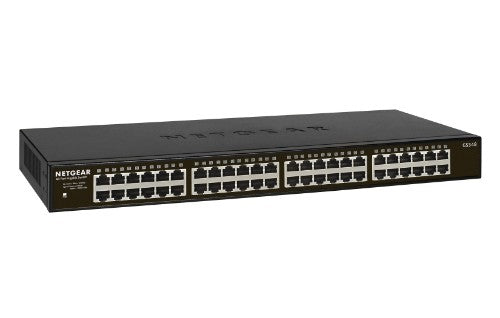

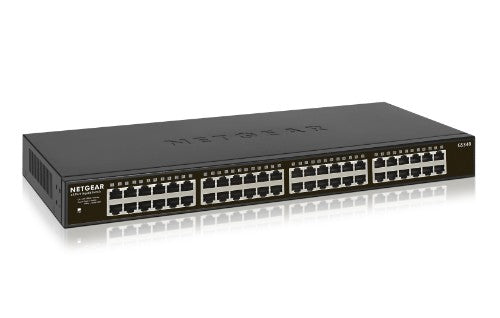

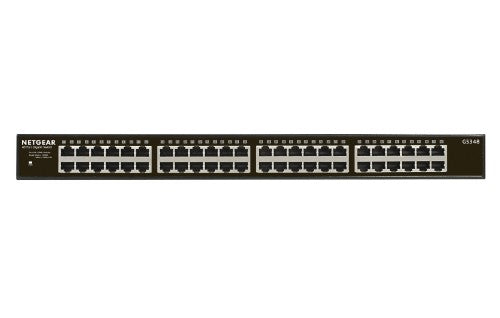

NETGEAR GS348-100AJS network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black

48-Port Gigabit Ethernet unmanaged Switch, Metal, Black

Description

Expanding Wired Connectivity for SOHO Networks

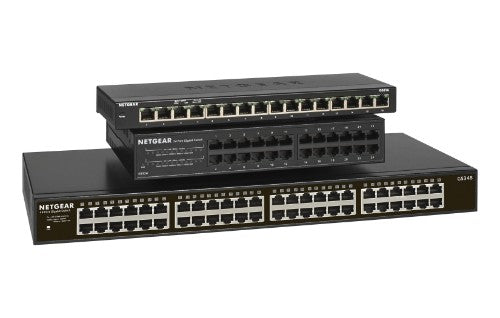

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- GS316 and GS324 are wall-mountable
- GS324 and GS348 are rack-mountable (rackmount kit included)

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X	Yes
Data transmission
Packet forwarding rate (1 Gbps)	1448000 pps
Jumbo frames	9216
MAC address table	16000 entries
Switching capacity	96 Gbit/s
Latency (1 Gbps)	4 µs
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Activity, Link, Power
Performance
Plug and Play	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	23 W
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	8.81 W
Input current	1 A
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Heat dissipation	7866 BTU/h
Weight & dimensions
Width	440 mm
Depth	204 mm
Height	43.2 mm
Weight	3.15 kg
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
