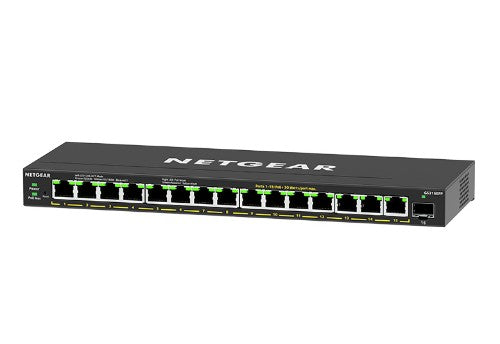

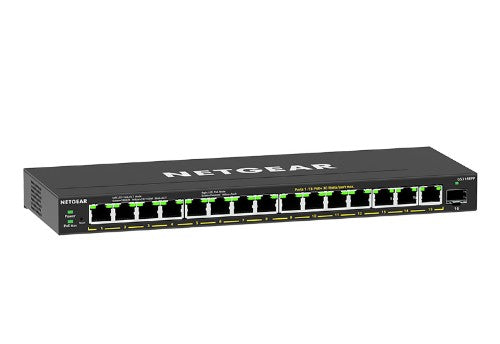

NETGEAR GS316EPP Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP Port

Description

The NETGEAR 16-Port High-Power PoE+ Gigabit Ethernet Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones, IP cameras, and more.

Gigabit Ethernet

16 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each.

PoE+ Support

15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire.

Advanced PoE Controls

Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for simple control over all PoE-powered devices.

Non-Blocking Switching

10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.

Fanless Design

Silent operation makes this switch perfect for noise-sensitive environments.

Versatile Mounting Options

Install your switch on your desktop or mount it to your wall with the hardware provided in the box.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
SFP module slots quantity	1
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Number of VLANs	64
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Virtual LAN features	Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	10000
MAC address table	4096 entries
Switching capacity	32 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	0.192 MB
Number of VLANs	64
Number of multicast groups filtered	128
Security
IGMP snooping	Yes
Password protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP client
Multicast features
Number of multicast groups filtered	128
Multicast support	Yes
Design
Wall mountable	Yes
Rack mounting	No
Product colour	Black
LED indicators	Yes
Housing material	Metal
Certification	FCC 15 B CE/EN55032/24 VCCI ACMA CSA KC BSMI
Performance
Mean time between failures (MTBF)	570435 h
Fanless	Yes
Packet buffer memory	0.192 MB
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	15
Total Power over Ethernet (PoE) budget	231 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Virtual LAN features
Number of VLANs	64
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	286 mm
Depth	102 mm
Height	27 mm
Weight	880 g
Packaging content
User guide	Yes
Cables included	AC
Sustainability
Sustainability compliance	Yes
Power
Power connector	DC-in jack
Technical details
Sustainability compliance	Yes
Compliance certificates	CE
Certificates
Certification	FCC 15 B CE/EN55032/24 VCCI ACMA CSA KC BSMI
Compliance certificates	CE
Packaging data
User guide	Yes
Cables included	AC
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
