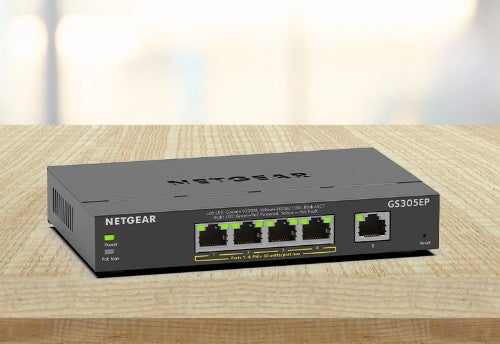

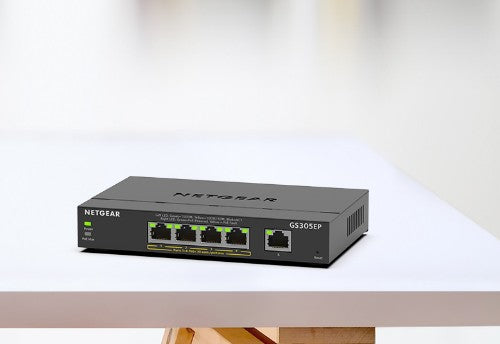

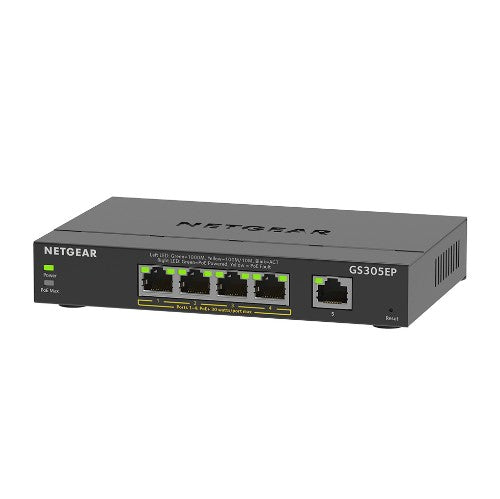

NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Managed, L3, 5x 10/100/1000 RJ45, 4x PoE 63W, 10Gbps, 158 x 101 x 27 mm

Description

Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EP offers 63W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.

EASY MANAGEMENT
Plug-and-play Plus switch fundamental network management features. No need for an IT expert or a complicated user manual, just configure your network with the user-friendly NETGEAR

Smart Managed Web GUI
CONSUMER AND BUSINESS-FRIENDLY GUI
Easily manage and configure advanced features for your network simply through a responsive consumer and business-friendly web and mobile GUI

VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources

COMPREHENSIVE QOS
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video
MULTI-LANGUAGE SUPPORT
Context in 3 different languages (English, German, and Japanese)

PoE+ SUPPORT
4 ports PoE+ for a total of 63W of power enabling powering of all types of PoE devices with a single wire deployment of power and network connectivity to PoE+ devices such as wireless AP, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices

ADVANCED PoE CONTROLS
Power management of the PoE connected devices by enabling and disabling PoE power per port, PoE prioritization, PoE power limit per port and more. Simplifies management of PoE powered devices

UNINTERRUPTED PoE
Keep PoE power on even when the switch is updating firmware or performing a software reboot

5 GIGABIT PORTS
Gigabit connection delivers up to 1000 Mbps of dedicated, non-blocking bandwidth per port

FANLESS & VERSITILE MONUTING
Completely silent operation within a desktop small form factor, and also wall-mountable

NON-BLOCKING SWITCHING
10Gbps (10/100/1000 Mbps) line rate fabric for great connectivity to your devices without congestion

COST-EFFECTIVE
Businesses do not necessarily have budget or advanced network training to deal with complex managed switches, the GS305EP offers affordable management features for a small additional cost above an Unmanaged switch

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af
Number of VLANs	64
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Jumbo frames	9216
MAC address table	4000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Packet buffer memory	0.192 MB
Number of VLANs	64
Security
Loop protection	Yes
IGMP snooping	Yes
Password protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Wall mountable	Yes
Product colour	Black
LED indicators	Activity, Link, PoE, Power, Speed, System
Housing material	Metal
Certification	CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
Performance
Mean time between failures (MTBF)	1164104 h
Fanless	Yes
Packet buffer memory	0.192 MB
Power
Power supply included	Yes
Input current	1.25 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	63 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Virtual LAN features
Number of VLANs	64
VLAN support	Yes
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	27 mm
Weight	390 g
Packaging content
Quick start guide	Yes
Certificates
Certification	CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
Packaging data
Quick start guide	Yes
