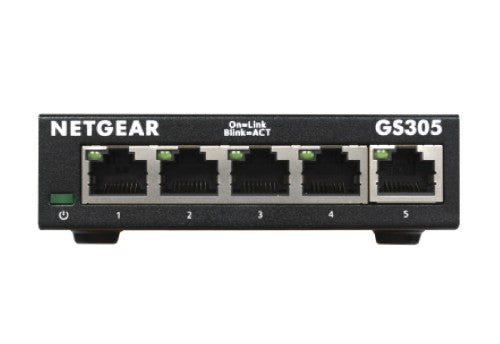

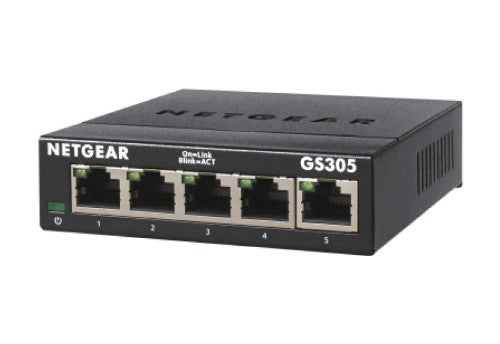

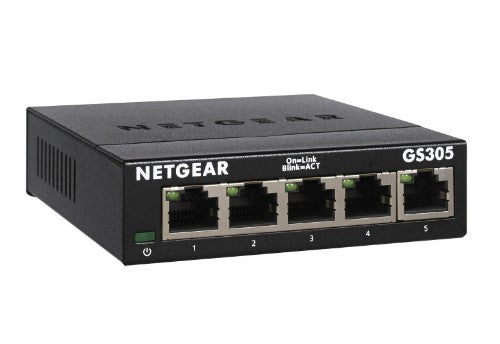

NETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

5-Port Gigabit Ethernet SOHO Unmanaged Switch, 10 Gbps, 128 KB, 5V / 0.7A, Fanless

Description

Cost-effective plug-and-play networking lets you expand your office network to multiple devices instantly

PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance

FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed

SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
Metal Case
Durable and Rugged

VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement

STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs

Plug-and-play
Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!

All speeds welcome
Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically

Mounting flexibility
Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment

Industry leading support
ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert

Energy efficient
Switches automatically adjust power consumption according to the link status and cable length.

Specifications

Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Cable length detection	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	No
Half duplex	Yes
Data transmission
Jumbo frames	9216
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Latency (1 Gbps)	2.6 µs
Jumbo frames support	Yes
Packet buffer memory	0.128 MB
Forwarding rate	1.448 Mpps
Design
Wall mountable	Yes
Rack mounting	No
Product colour	Black
LED indicators	Activity, Link, Power
Housing material	Metal
Certification	CE Mark FCC Part 15 Class B IC Class B RCM VCCI
Performance
Mean time between failures (MTBF)	3831422 h
Packet buffer memory	0.128 MB
Power
Power consumption (max)	2.15 W
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	7.35 BTU/h
Weight & dimensions
Width	101 mm
Depth	94 mm
Height	29 mm
Weight	250 g
Certificates
Certification	CE Mark FCC Part 15 Class B IC Class B RCM VCCI
