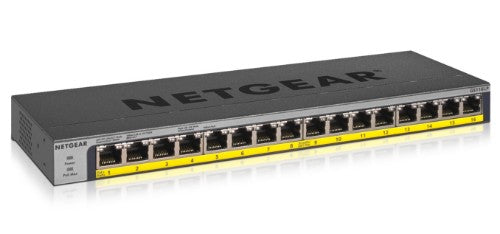

NETGEAR GS116LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

16x 10/100/1000 Base-T RJ45 ports, 16x PoE/PoE+ 802.3af/ 802.3at Ports, PoE Budget 76W, PSU 90W, Fanless, Desktop, Wall/Rack mount

Description

Instant Connectivity with Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations.

They are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

High quality components and Energy Efficiency
Unmanaged Gigabit switches are built with Top Quality components to assure a long life. Unmanaged switches are built to last, and rigorously tested to provide the reliability businesses need.

NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active ports or when there is no link or no activity detected. It can further save energy when a short cable is used.

PoE+ Support (GS108LP,GS108PP,GS116LP,GS116PP)
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other Ethernet-powered devices.

These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE Power. Thanks to the interchangeable external Power Supply and with a built-in PoE selector they allow you to increase or decrease the PoE budget at any time.

The flexible mounting system gives you the flexibility to place them in a desktop environment, mounted in a rack (accessories included) or wall-mounted.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Data transmission
MAC address table	4000 entries
Switching capacity	32 Gbit/s
Jumbo frames support	Yes
Design
Rack mounting	Yes
Product colour	Black
LED indicators	Yes
Number of fans	1 fan(s)
Certification	CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1
Performance
Buffer size	1000 KB
Mean time between failures (MTBF)	2088514 h
Harmonized System (HS) code	85176990
Power
Power consumption (typical)	90 W
Input current	1.66 A
DC input voltage	54 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	76 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	270.18 BTU/h
Weight & dimensions
Width	286 mm
Depth	102 mm
Height	27 mm
Weight	880 g
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1
Logistics data
Harmonized System (HS) code	85176990
