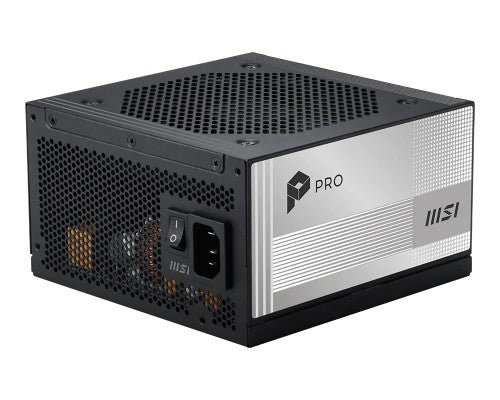

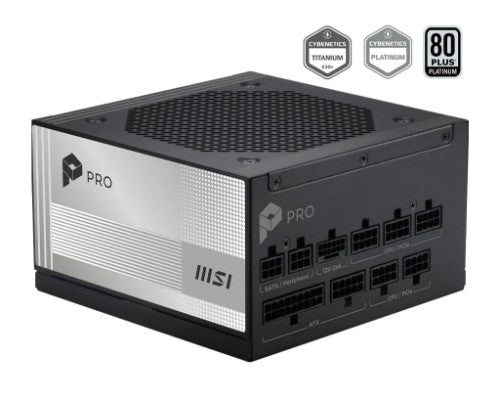

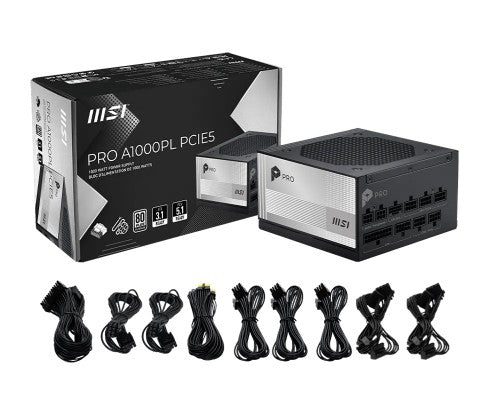

MSI PRO A1000PL PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Black

1000 W, 120 mm, 50-60Hz, 100-240V,

Key Features

• Dual-color 12V-2x6 Cable
• ATX 3.1 Ready
• PCIe 5.1 Ready (600W)
• 105°C Main Electrolytic Capacitor
• 80 PLUS Platinum Certification
• Embossed Jacket Certified Cables
• Industrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO

Description

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.

GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.

Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.

105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.

Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

Specifications

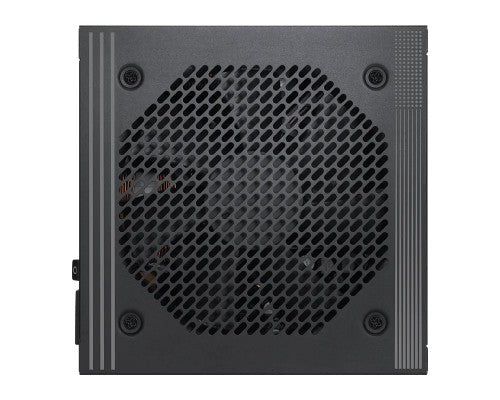

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	999.6 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.8 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	92%

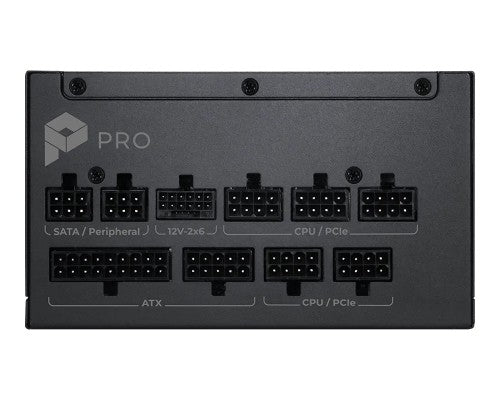

Ports & interfaces
Motherboard power cable length	60 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	3
CPU power connector (4+4 pin)	Yes
ATX Power connector (24-pin)	No
ATX power connector (20+4 pin)	Yes
Floppy disk drive connector	No
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Platinum
Other features
Legal guarantee	7 year(s)
