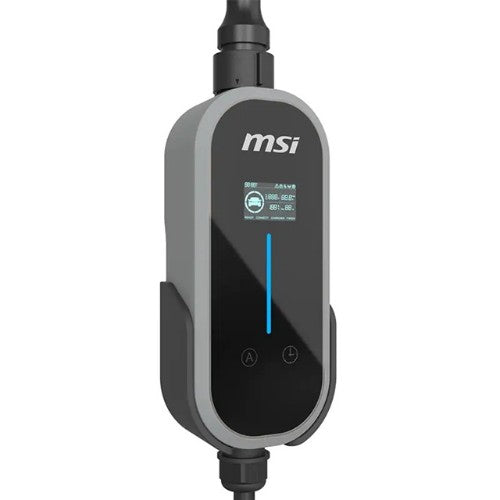

MSI Portable EV Charger Grey Ezgo 10A+15A+Home kit, Single Phase, 230V, 1PH, 2.3KW & 3.4KW, 5M Type 2 Charging gun, 1.8'LCD, IP66, 1.5T, Bluetooth

MSI Portable EV Charger Grey Ezgo 10A+15A+Home kit, Single Phase, 230V, 1PH, 2.3KW & 3.4KW, 5M Type 2 Charging gun, 1.8'LCD, IP66, 1.5T, Bluetooth

Description

MSI Portable EV Charger Grey Ezgo 10A+15A+Home kit, Single Phase, 230V, 1PH, 2.3KW & 3.4KW, 5M Type 2 Charging gun, 1.8'LCD, IP66, 1.5T, Bluetooth

SPECIFICATION
Voltage 230V, 1PH
Max. Current 10 A 15 A
Max. Charging Power 2.3 kW 3.4 kW
Grid Frequency 50/60 Hz
Display 1.8 inch LCD
Dimension 29.8 x 10.6 x 5.3 cm
Weight 4.2 kg
Communication Bluetooth
AC in Industrial / Household sockets
Charging Cable Type Type 2
Cable Length 5m
EMS CE Mark (EU)
EMI IEC
Safety CB, IEC, RCM
RF EU, RCM
Electrical Protection
Under Voltage Protection, Over Voltage Protection, Over Load Protection, Over Temp. Protection, Ground Protection, Leakage Protection
Enclosure Type IP66
Run Over Test 1.5T
Working Humidity 5 % ~ 95 % RH
Working Altitude ＜2000 m
Operating Temp. -30℃ ~ +50℃（-22℉~+122℉）

LED Light Status Description
Blue Light One by One Ready
Blue Light Flashing The charging handle is not plugged in
during the scheduled session
Blue Light Breathing The charging handle is plugged in during
the scheduled session
Blue Light Flowing Charging
Blue Light Constant Charging is completed
Red Light Constant Alarm state

Specifications
