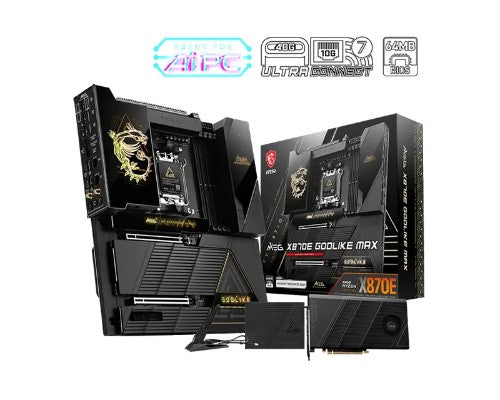

MSI MEG X870E GODLIKE MAX, AM5, AMD X870E, DDR5 9200+ OC, PCIe 5.0, Wi-Fi 7, 10G+5G LAN, USB4 40Gbps, Dynamic Dashboard III

MSI MEG X870E GODLIKE MAX, AM5, AMD X870E, DDR5 9200+ OC, PCIe 5.0, Wi-Fi 7, 10G+5G LAN, USB4 40Gbps, Dynamic Dashboard III

Description

MSI MEG X870E GODLIKE MAX, AM5, AMD X870E, DDR5 9200+ OC, PCIe 5.0, Wi-Fi 7, 10G+5G LAN, USB4 40Gbps, Dynamic Dashboard III

FEATURES
Dynamic Dashboard III
A 3.99-inch LCD for real-time hardware monitoring,
troubleshooting, BIOS updates, and personalized display options,
enhancing the overall user experience.

EZ Link
By consolidating front panel, fan, and ARGB headers into the EZ
Bridge and EZ Control Hub, cable management is simplified,
resulting in an extremely clean build.

M.2 XPANDER-Z SLIDER GEN5
The one-slot-thick M.2 expansion card features dual high-speed
Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades
effortless.

Ultra Power +
The ultimate power solution with 24+2+1 DRPS, 110A SPS, and
OC Engine unleashes maximum CPU performance.

OC Engine
With the clock generator, the OC Engine technology releases the
maximum power of CPU.

Frozr Design
Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover,
Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI
software ensure the utmost performance with low temp.
64MB BIOS
A larger BIOS ROM capacity allows the motherboard to support
next-level CPU upgrades with better compatibility.

10G Super LAN + 5G LAN
Onboard 10G plus 5G LAN provide the next level network speed,
secure networking with the fastest data throughput to deliver the
best online gaming experience.

Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.

Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps
transmission speed.

Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.

Audio Boost 5 HD
Ultimate audio solution with premium audio processor combining
ESS audio DAC and amplifier deliver the breathtaking experience.

SPECIFICATIONS
Model Name MEG X870E GODLIKE MAX
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset

Expansion Slots
1x PCIe 5.0 x16 slot,
1x PCIe 5.0 x8 slot,
1x PCIe 4.0 x4 slot

Display Interface
2 x USB4 ports support USB Type-C display output,
– Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5 - 9200+MT/s (OC)

Storage
2 x M.2 Gen5 x4 128Gbps slots,
2 x M.2 Gen5 x4 128Gbps slots via M.2 card,
2 x M.2 Gen4 x4 64Gbps slots,
1 x M.2 Gen4 x2 32Gbps slot,
4 x SATA 6Gbps ports

USB ports
2 x USB 40Gbps (2 Type-C),
1 x USB 20Gbps (1 Type-C),
14 x USB 10Gbps (8 Type-A + 6 Type-C),
4 x USB 5Gbps (4 Type-A),
4 x USB 2.0

LAN
1 x Marvell® AQC 10Gbps LAN,
1 x Realtek® 5Gbps LAN
WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4

Audio
8-Channel (7.1) USB High Performance Audio with Audio
Boost 5 HD
