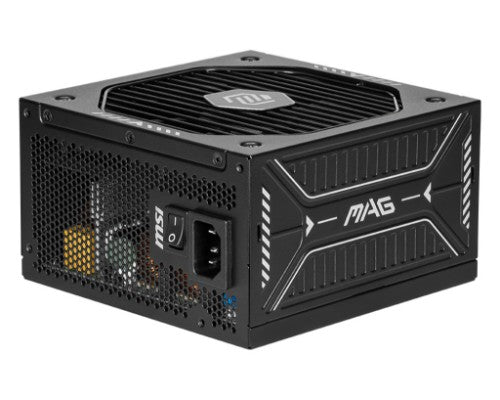

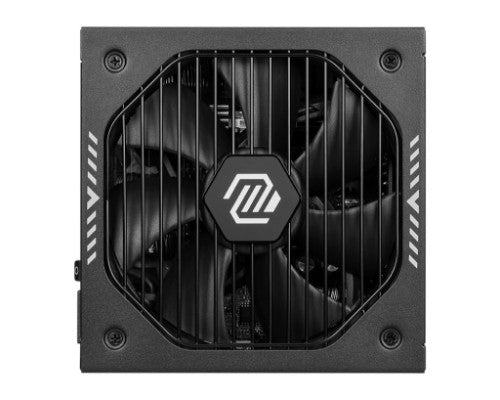

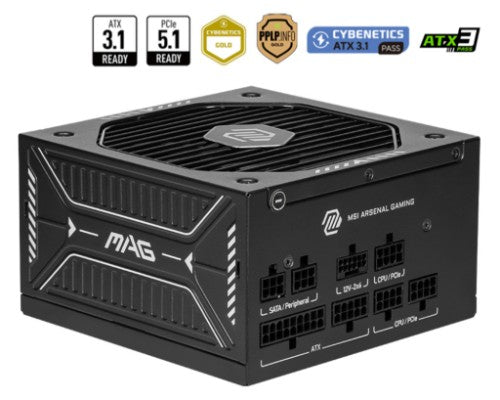

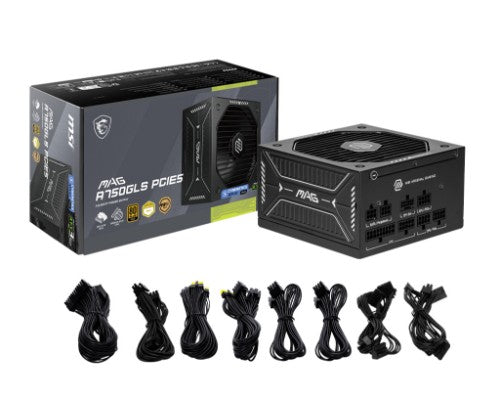

MSI MAG A750GLS PCIE5 power supply unit 750 W 24-pin ATX ATX Black

MSI

MSI MAG A750GLS PCIE5 power supply unit 750 W 24-pin ATX ATX Black

Read reviews
SKU: MAG A750GLS PCIE5
Your price $167.11
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

80 PLUS Gold, 90%, Full Modular, 135 mm, 24-pin ATX, Fluid Dynamic Bearing, Active PFC, 750 W, 100-240 V, 50-60 Hz, OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO, 1 x ATX 24 pin, 2 x EPS 4+4 pin, 1 x PCI-E, 4 x PCI-E 6+2 pin, 5 x SATA, 2 x Peripheral 4 pin, Black, 150 x 150 x 86 mm

Key Features

  • Supports Nvidia® GeForce RTX™ 50 series graphics cards
  • Native 12V-2x6 connector
  • Dual-color 12V-2x6 cable
  • 80 PLUS Gold certified
  • Optimized the sound level
  • Main 105oC capacitor
  • Embossed Jacket Cables, the cables are more bending and routing
  • Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

Description

Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Specifications

Cooling
Fan diameter 13.5 cm
Number of fans 1 fan(s)
Cooling type Active
Design
80 PLUS certification 80 PLUS Gold
Product colour Black
Fan diameter 13.5 cm
Illumination No
Number of fans 1 fan(s)
Cooling type Active
Power
Total power 750 W
Peak power 1650 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 100 W
Combined power (+12V) 750 W
Combined power (+5V) 100 W
Combined power (-12V) 750 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 18 A
Power protection features No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage
Efficiency 90%

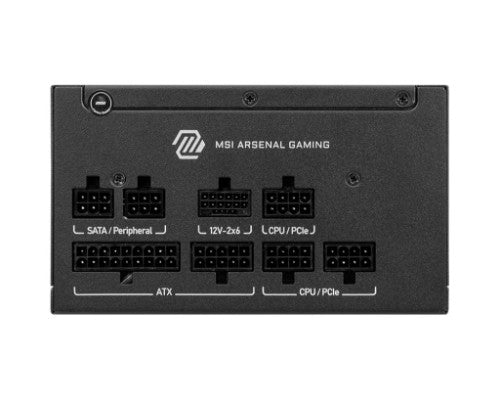

Ports & interfaces
Motherboard power connector 24-pin ATX
Number of SATA power connectors 5
Peripheral (Molex) power connectors (4-pin) 2
EPS power connector (8-pin) No
PCI Express power connectors (6+2 pin) 4
ATX Power connector (24-pin) Yes
PCI Express connector Yes
Cabling type Fully-Modular
EPS power connector (4+4 pin) Yes
PCI Express power connectors (16-pin) 1
Number of EPS connectors 2
Performance
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
ATX version 3.1
Bearing technology FDB
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 86 mm
Packaging data
Package type Box
Certificates
80 PLUS certification 80 PLUS Gold
Other features
Legal guarantee 7 year(s)
Brand
MSI
SKU
MAG A750GLS PCIE5
